Xerox VersaLink B7025 Service Manual

April 2017
8-52
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Transfer and Detack
The toner image is transferred from the photoreceptor drum to the surface of the paper by the
bias transfer roll (BTR). The BTR is constructed of a metal shaft surrounded by a soft, conduc
-
tive urethane roll which has a positive charge. As the photoreceptor and BTR rotate together,
the positive charge of the BTR attracts the negative charge of the toner.
The paper is released from the photoreceptor drum by the detack saw and stripper fingers. A
voltage is applied to the detack saw to eliminate the charge on the paper. In cases where the
paper is still attracted to the photoreceptor drum, the stripper fingers will physically strip the
paper from it. Refer to Figure 15 and Figure 16.
NOTE: The detack saw is part of the transfer chute assembly, PL 90.15 Item 1.

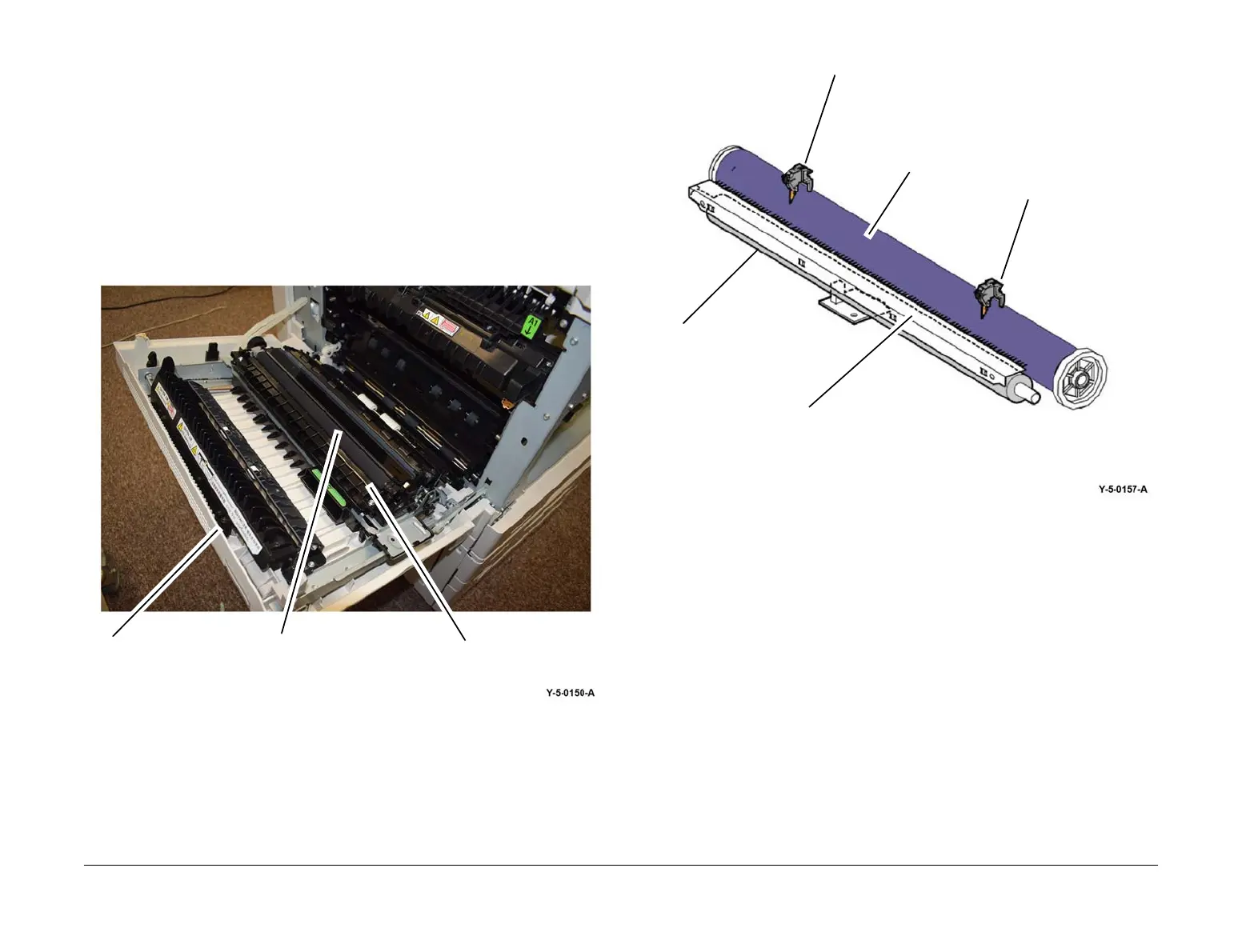

Figure 15 Bias transfer roll
Figure 16 BTR detack
Bias transfer roll
L/H cover
Detack saw
Stripper finger
Photoreceptor
Stripper finger
Detack saw
Bias transfer roll

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
