Xerox VersaLink B7025 Service Manual

April 2017
8-59
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Fuser Temperature Control
The heat roll temperature is monitored by the fuser non-contact sensor in the center of the heat
roll and a soft-touch thermistor at the rear end of the heat roll. Each sensor measures the tem
-
perature in its region then provides temperature information to the drive PWB. Figure 7.
The drive PWB logic uses the inputs from the sensors to control the fusing temperature by
switching the heat rods on and off as required, refer to BSD 10.1 Fusing Heat Control (1 of 2).
The thermostats, located near the center and the front of the heat roll, provide over tempera-
ture protection. When the surface temperature of the heat roll exceeds a predetermined value,
the thermostat opens, de-energizing the fuser relay and cutting off the current to the heat rods,
refer to BSD 10.1 Fusing Heat Control (1 of 2), Figure 7.

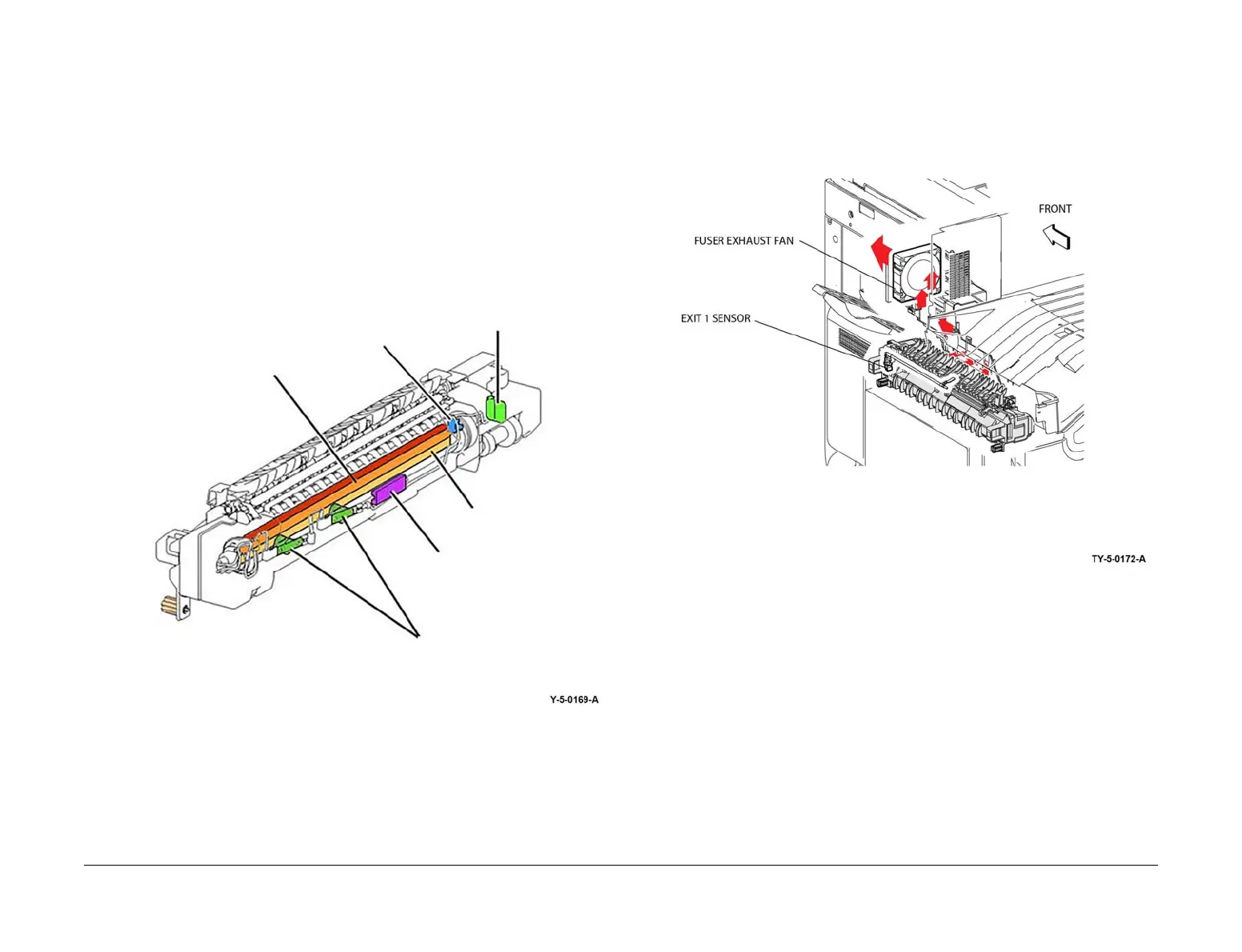

Figure 7 Fusing temperature control
Fuser Cooling
The fuser fan, PL 40.15 Item 4, exhausts heated air from the fuser area via the ducting. Refer
to Figure 8 and Figure 9.
Figure 8 Fuser cooling ducting
Thermostats
Fuser NC sensor
Sub heater rod
Fuser PWB
Heat roll thermistor
Main heater rod

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
