Xerox VersaLink B7025 Service Manual

April 2017
8-61
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Print Transportation
Exit 1
The exit gate solenoid is normally de-energized. With the solenoid in this state, the diverter
gate directs prints to exit 1.
Based on the configuration of the system, exit 1 directs prints to either the:
• Output catch tray
• Horizontal transport when an office finisher LX is installed
• Integrated office finisher
Refer to Figure 11.

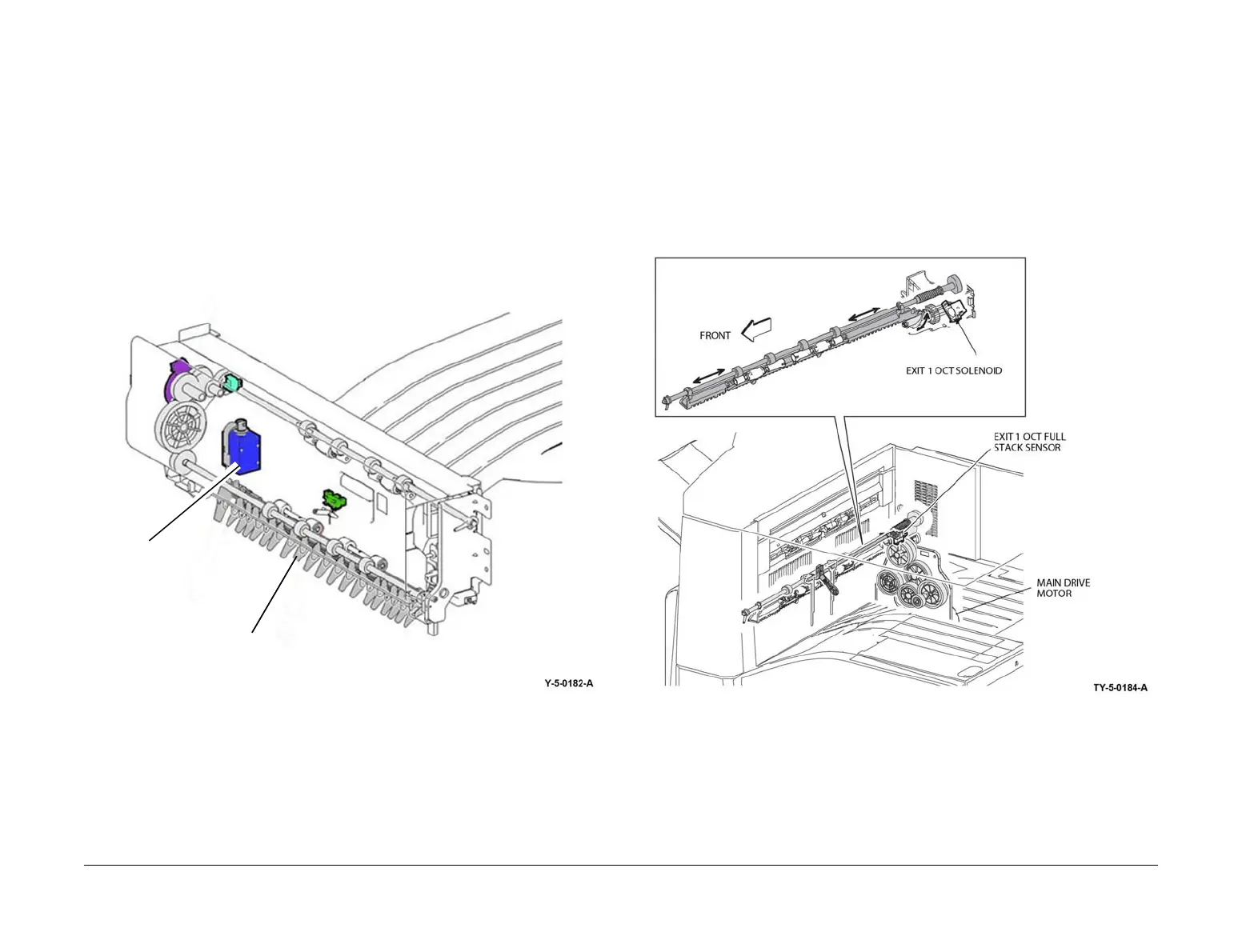

Figure 11 Diverter gate
Print Transportation
Exit 1: Stacking
The exit 1 roller, exit 1 OCT full stack sensor and exit 1 OCT solenoid are used to offset print
sets as they exit the machine. The output paper will be stacked in different positions by the
movement of the exit 1 roller.
The exit 1 OCT solenoid moves the exit 1 roller toward the front or rear to offset the sheet or
set. The exit 1 OCT full stack sensor monitors the position of the exit 1 roller.
Drive for the exit 1 roller is obtained from the main motor through a system of gears. Refer to
Figure 12.
Figure 12 Exit 1 stacking
Exit gate solenoid
Diverter gate
