Sub Paddle Assembly
The sub-paddle assembly actively drives fed paper into the compiler tray when it exits the exit
roll.
The sub-paddle assembly consists of a set of sub-paddles, an eject chute, and a solenoid.
drive is provided by the transport motor. Refer to Figure 18.

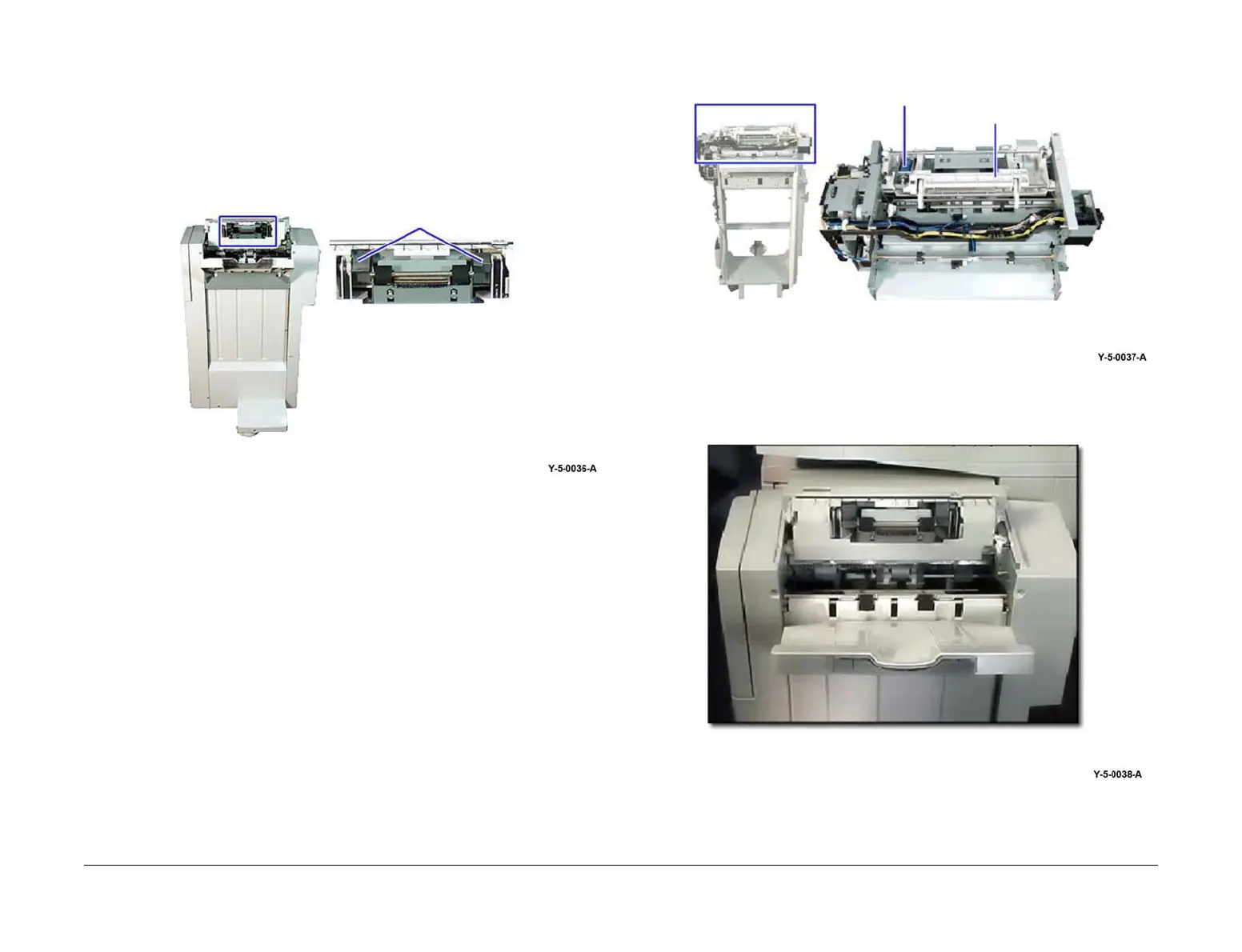

Figure 18 Sub paddle assembly
Exit Chute
When instructed, the solenoid is energized, which lowers the eject chute and the sub paddles
onto the paper.
The rotation of the sub paddles actively drives the paper against the compiler backstops where
the paper is tamped, stapled (if required), and ejected.
The sub paddles rotate constantly and only come into contact with the paper when the solenoid
is actuated. Refer to Figure 19, Figure 20 and Figure 21.
Figure 19 Exit chute
Figure 20 Sub paddle assembly
Sub-paddles
Solenoid
Exit chute
