Xerox VersaLink B7025 Service Manual

April 2017
4-10
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.4
Launch Issue
Repairs and Adjustments

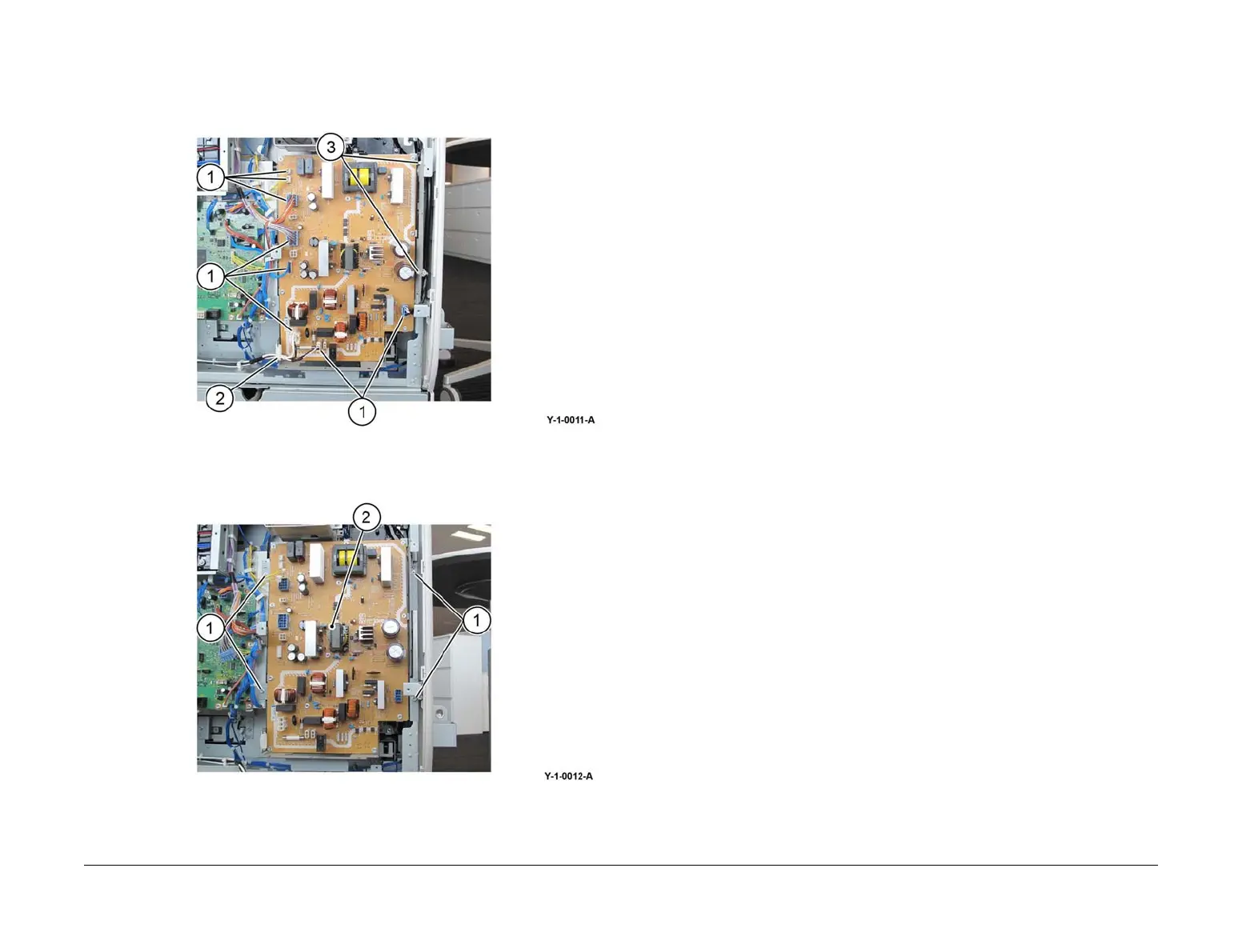

3. Prepare to remove the LVPS assembly, Figure 2:
a. Disconnect eight connectors (1).
b. Release the harness from the clamp (2).
c. Remove both harness clamps (3) from the frame.
Figure 2 Preparation
4. Remove four screws (1), then the LVPS assembly (2), Figure 3.
Figure 3 LVPS removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the smaller 2 pin connector is connected to PJ3, not PJ4.
