Xerox VersaLink B7025 Service Manual

April 2017
4-12
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 2.1
Launch Issue
Repairs and Adjustments
7. Remove the UI assembly, Figure 2:
a. Disconnect both connectors (1).
b. Remove 4 screws (2), then the UI assembly (3).

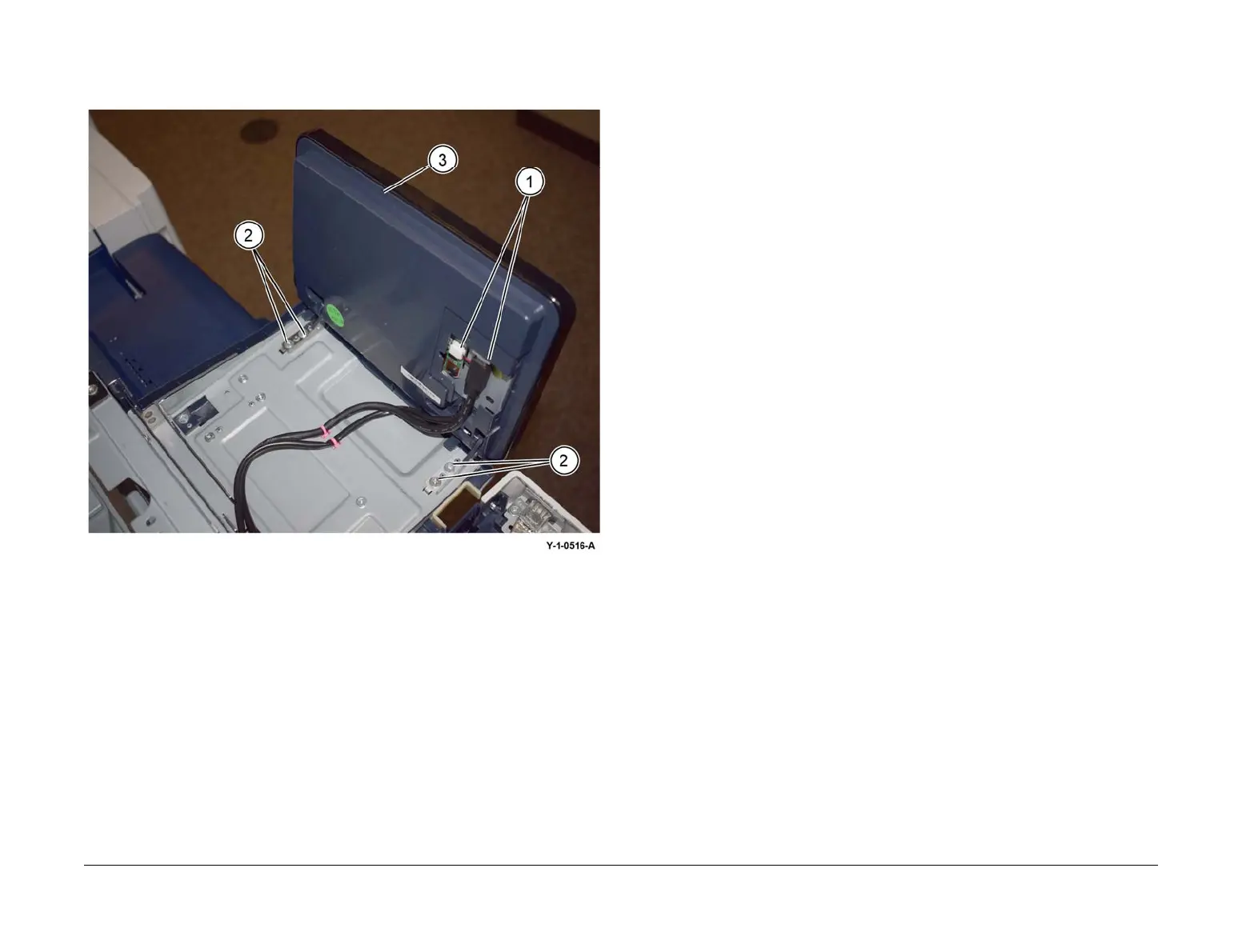

Figure 2 UI assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check the machines current software level against the software level recorded prior to
installation of the new user interface assembly. If necessary, reload the software, GP 4.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
