Xerox VersaLink B7025 Service Manual

April 2017
4-17
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 3.1
Repairs and Adjustments
Launch Issue
Replacement
CAUTION
Take care not to insert the harness at an angle as this could damage the PWB.
1. The replacement is the reverse of the removal procedure.
2. If a new ESS PWB is to be installed:
CAUTION
Take care when removing and reinstalling the SEEPROM. The pins are easily damaged.

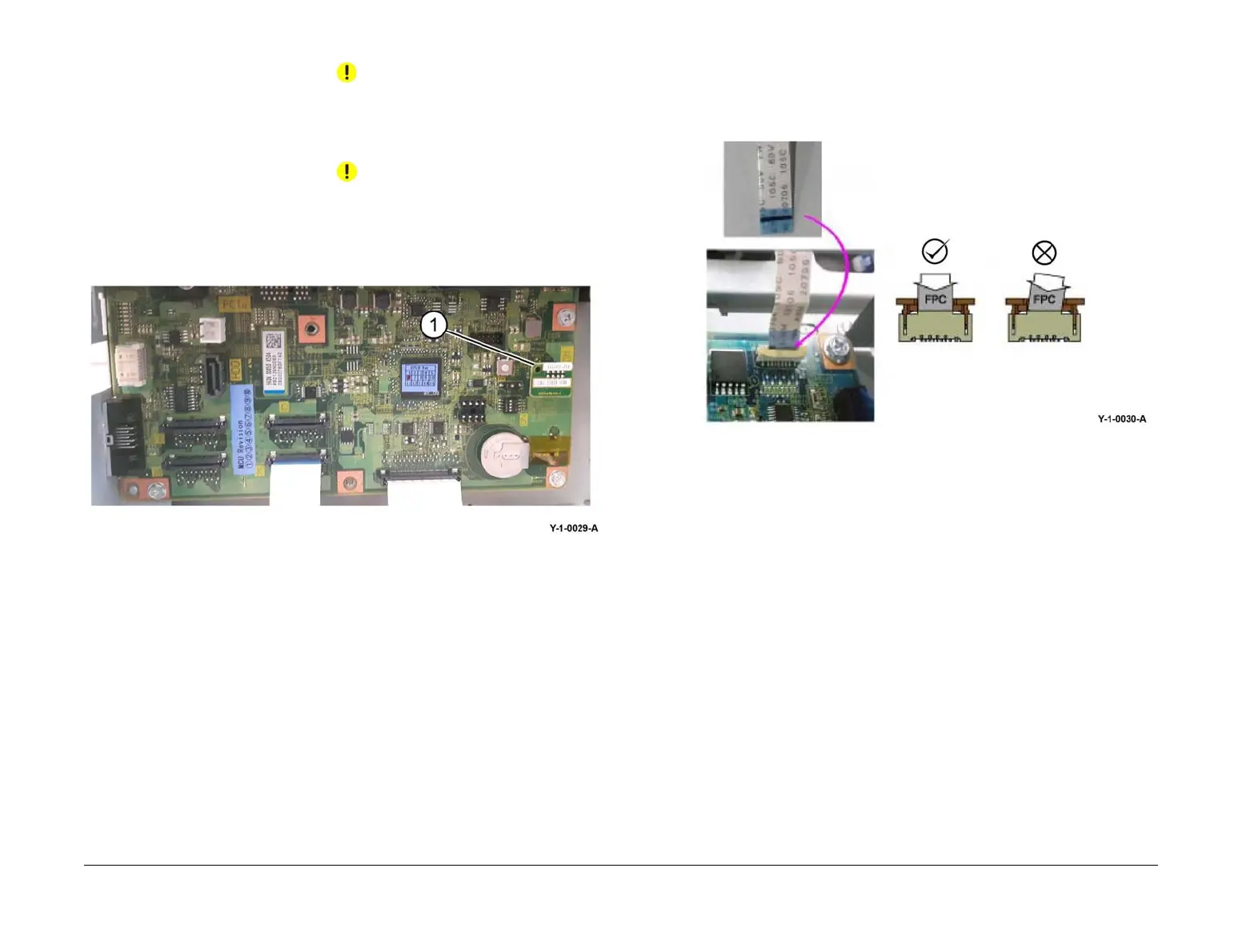

a. Remove the SEEPROM (1) from the old ESS PWB, then install it onto the new ESS
PWB, Figure 13.
Figure 13 SEEPROM
b. Remove the SD card from the old ESS PWB, then install it onto the new ESS PWB.
3. Be aware of that when connecting the FFC cable and the ribbon cable:
a. When connecting the ribbon cable, insert it straight into the connector housing until it
locks.
b. Ensure that the cable is connected securely at both ends.
4. Be aware that when connecting the FFC LED cable, Figure 14:
a. The black lines serve as a guide for whether the FFC LED cable is inserted correctly.
Insert the connector so that the back lines are parallel.
NOTE: The black lines remain visible even after the FFC connector is inserted.
Figure 14 FFC LED cable
5. Ensure that the device ID and billing data is correct, perform dC132.
6. Check the machines current software level against the software level recorded prior to
installation of the new ESS PWB. If necessary, reload the software, GP 4.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
