Xerox VersaLink B7025 Service Manual

April 2017
4-21
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 3.2
Repairs and Adjustments
Launch Issue
CAUTION
The FFC LED cable is secured by a clamp. Carefully lift both ends of the cable clamp simulta-
neously to release the cable.

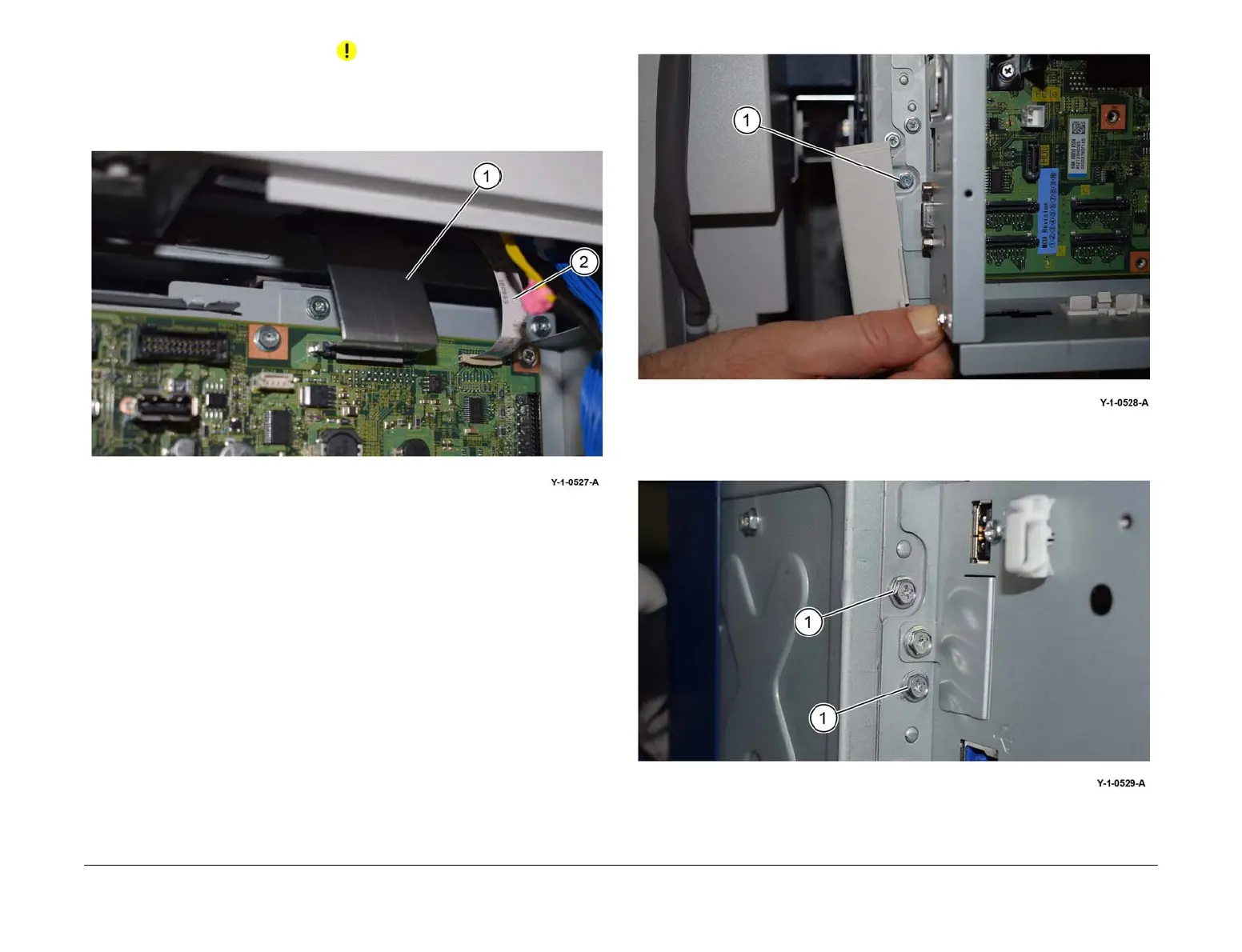

13. Carefully disconnect the CCD ribbon cable (1) and the FFC LED cable (2), Figure 10.
Figure 10 Cables
14. Carefully flex the corner of the right cover away from the machine, then remove the screw
(1), Figure 11.
Figure 11 Lower right screw
15. Remove two screws (1), Figure 12.
Figure 12 Upper right screws

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
