Xerox VersaLink B7025 Service Manual

April 2017
4-65
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.8
Repairs and Adjustments
Launch Issue

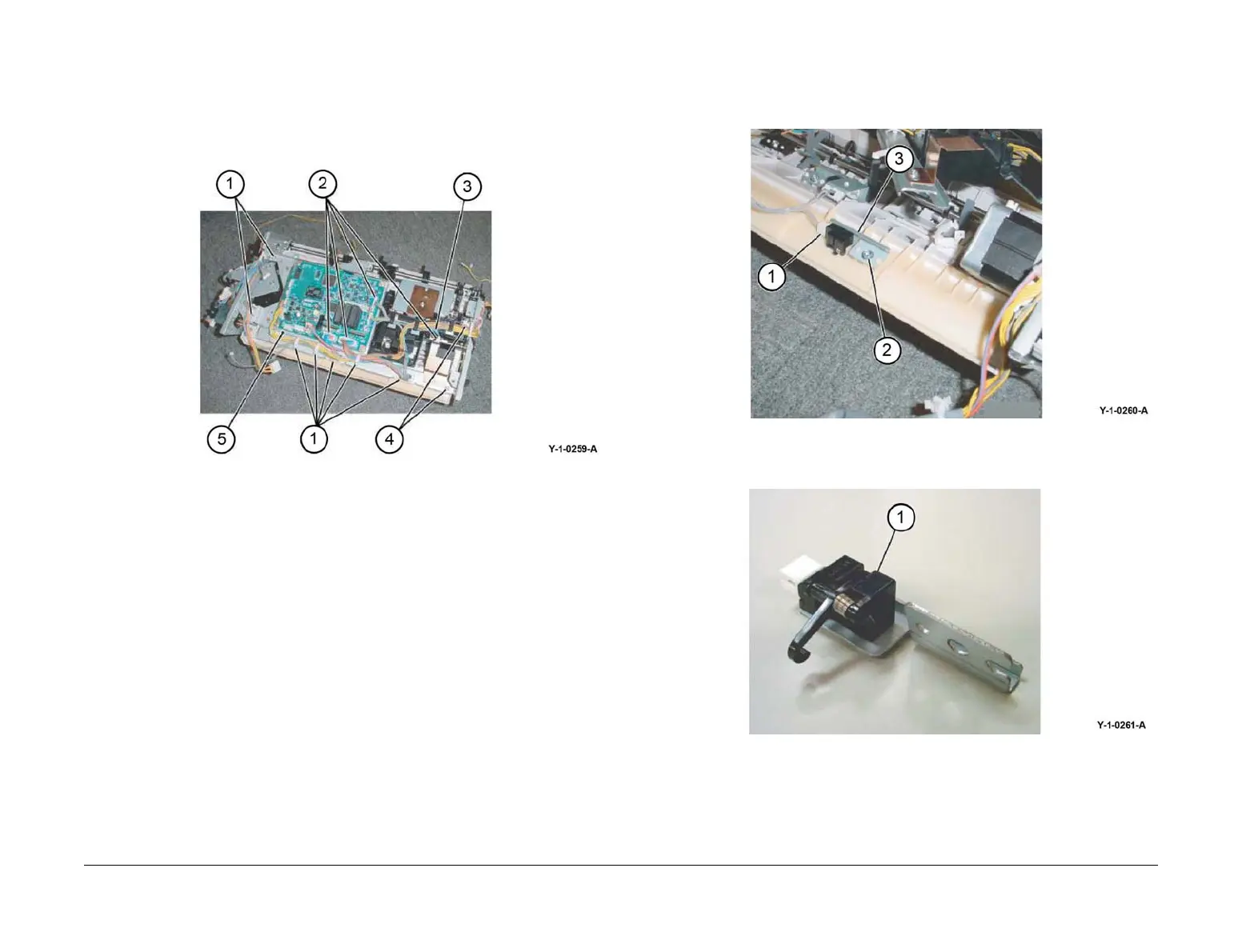

5. Remove the bottom plate, Figure 2:
a. Release the harness from the 5 clamps (1).
b. Disconnect eight connectors (2).
c. Remove the harness from the retainers (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).
Figure 2 Bottom plate removal
6. Remove the finisher entrance sensor assembly, Figure 3:
a. Disconnect the connector (1).
b. Remove the self-tapping screw (2).
c. Remove the finisher entrance sensor assembly (3).
Figure 3 Finisher entrance sensor assembly removal
7. Remove the finisher entry sensor (1) from the bracket, Figure 4.
Figure 4 Finisher entry sensor removal
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
