Xerox VersaLink B7025 Service Manual

April 2017
4-81
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.19
Repairs and Adjustments
Launch Issue
10. Remove the stacker tray, Figure 4:
a. Release the harness from the five clamps (1).
b. Disconnect the connector (2).
c. Remove seven screws (3).
d. Remove the stacker tray (4).

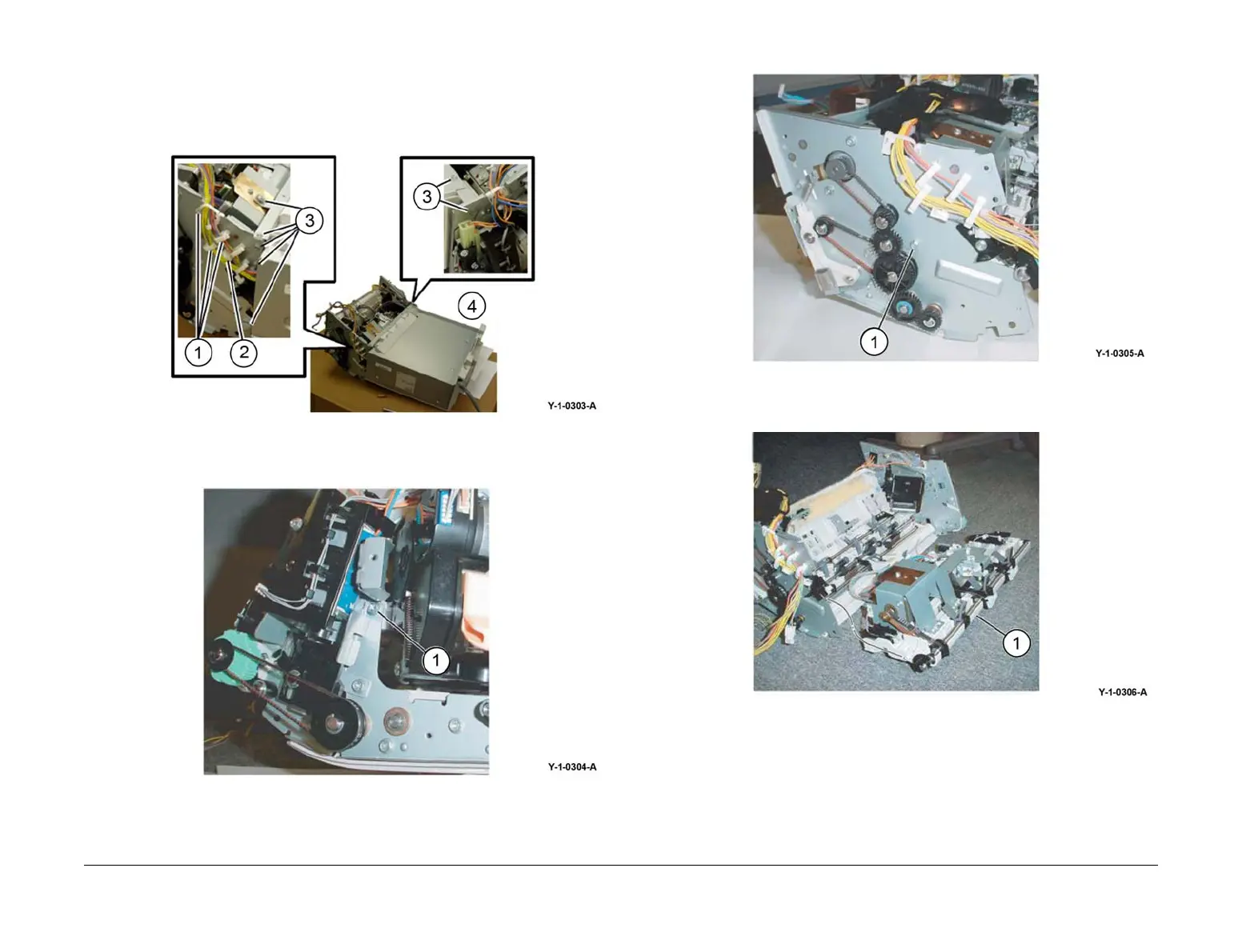

Figure 4 Stacker tray removal
11. Remove the front self-tapping screw (1), Figure 5.
Figure 5 Front screw removal
12. Remove the rear screw (1), Figure 6.
Figure 6 Rear screw removal
13. Remove the compiler assembly (1), Figure 7.
Figure 7 Compiler assembly removal
Replacement
The replacement is the reverse of the removal procedure.
