Xerox VersaLink B7025 Service Manual

April 2017
4-85
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.22
Repairs and Adjustments
Launch Issue

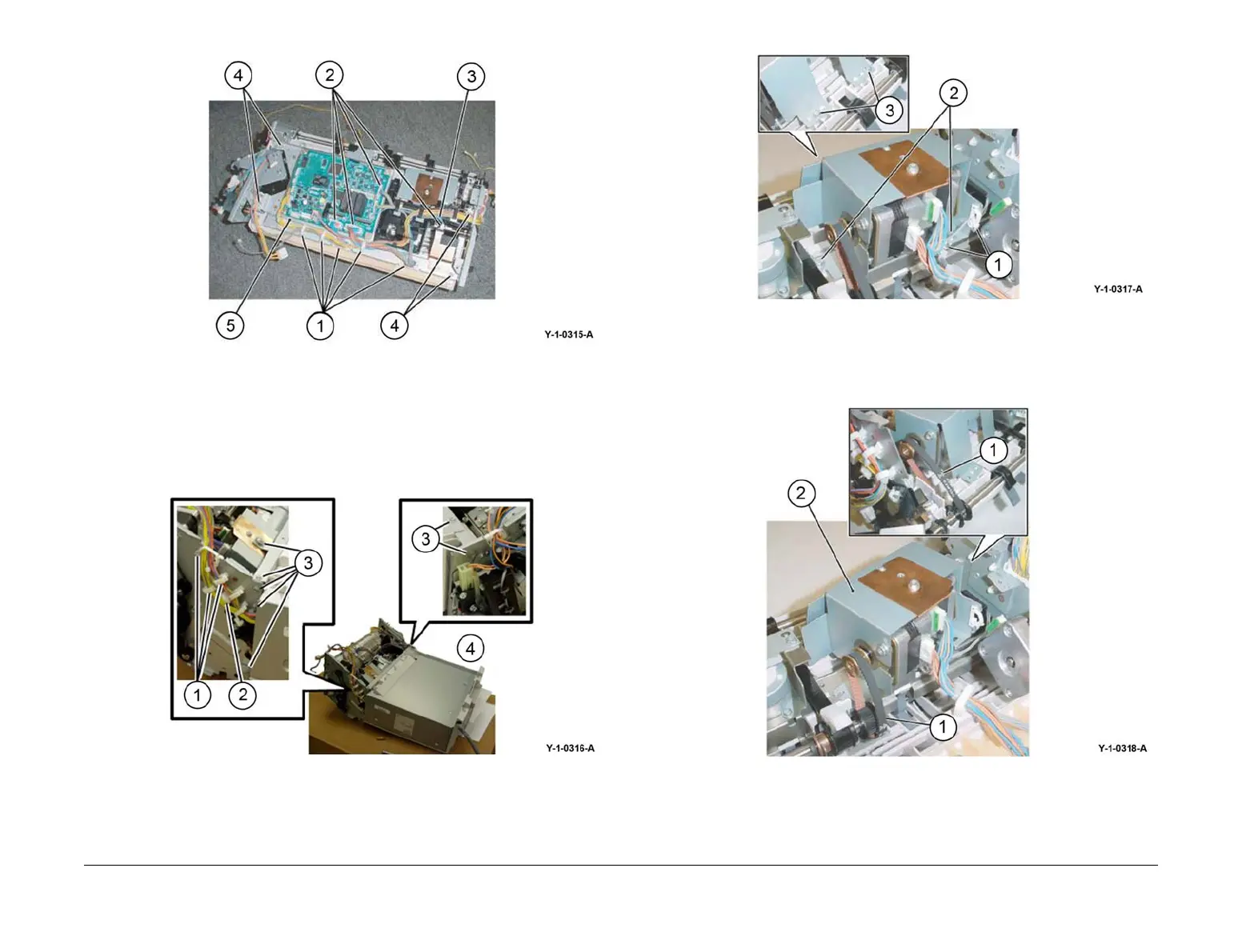

Figure 2 Bottom plate removal
8. Remove the stacker tray, Figure 3:
a. Release the harness from the five clamps (1).
b. Disconnect the connector (2).
c. Remove seven screws (3).
d. Remove the stacker tray (4).
Figure 3 Stacker tray removal
9. Remove the screws securing the eject/set clamp motor assembly, Figure 4:
a. Release the harness from both clamps (1).
b. Remove both screws (2).
c. Remove both self-tapping screws (3).
Figure 4 Screw removal
10. Remove the eject/set clamp motor assembly, Figure 5:
a. Remove both belts (1) from the Pulleys.
b. Remove the eject/set clamp motor assembly (2).
Figure 5 Eject/set clamp motor assembly removal
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
