Xerox VersaLink B7025 Service Manual

April 2017
4-105
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.15
Repairs and Adjustments
Launch Issue
3. Remove the wire guide, Figure 2:
a. Pull out the cable clamps (1), then remove the wires from the wire guide.
b. Remove two screws (2).
c. Remove the wire guide (3).

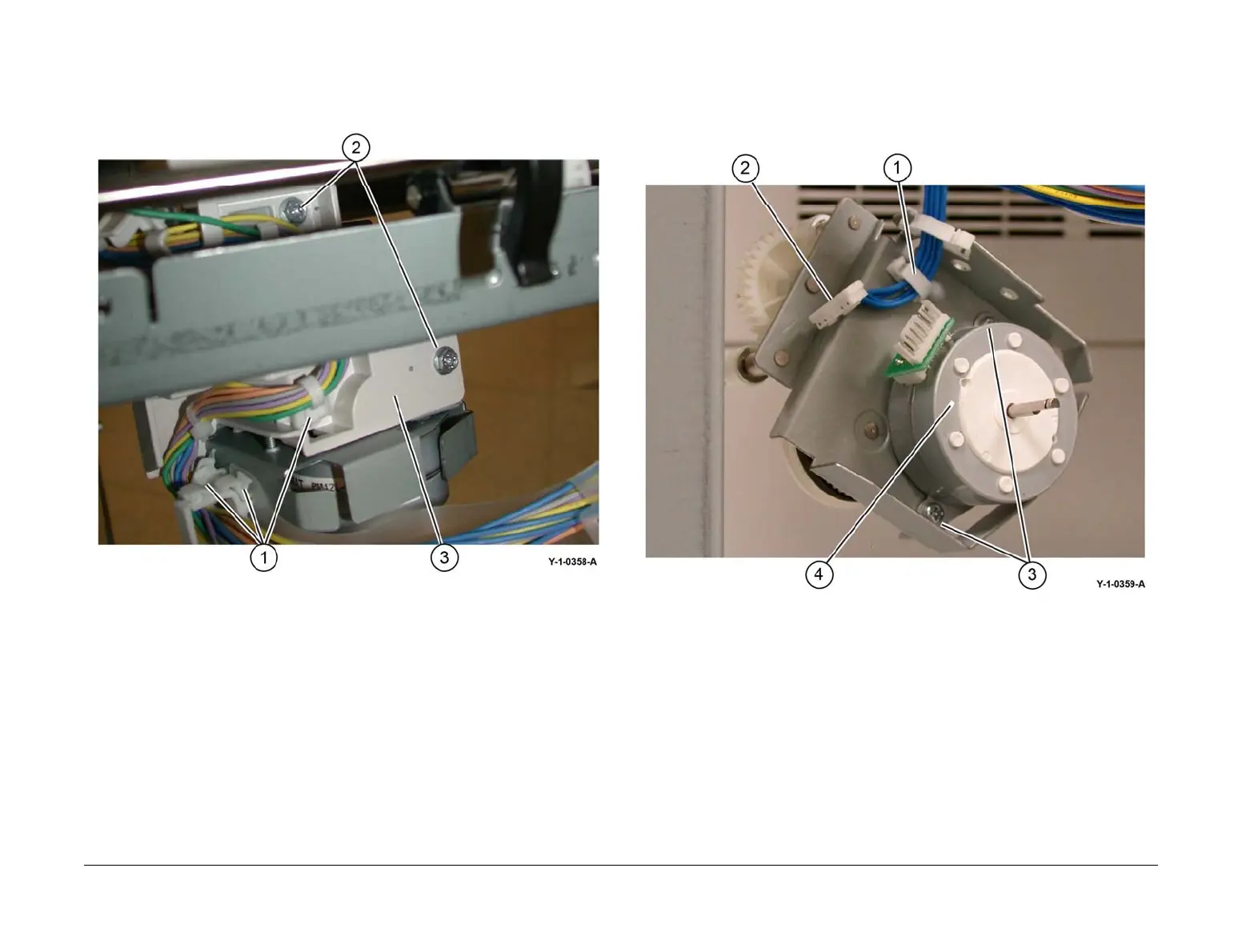

Figure 2 Wire guide removal
4. Remove the stapler motor, Figure 3:
a. Release the wires from the cable clamp (1).
b. Disconnect the connector (2).
c. Remove two screws (3).
d. Remove the stapler motor (4).
Figure 3 Stapler motor removal
Replacement
The replacement is the reverse of the removal procedure.
