Xerox VersaLink B7025 Service Manual

April 2017
4-146
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.3
Launch Issue
Repairs and Adjustments

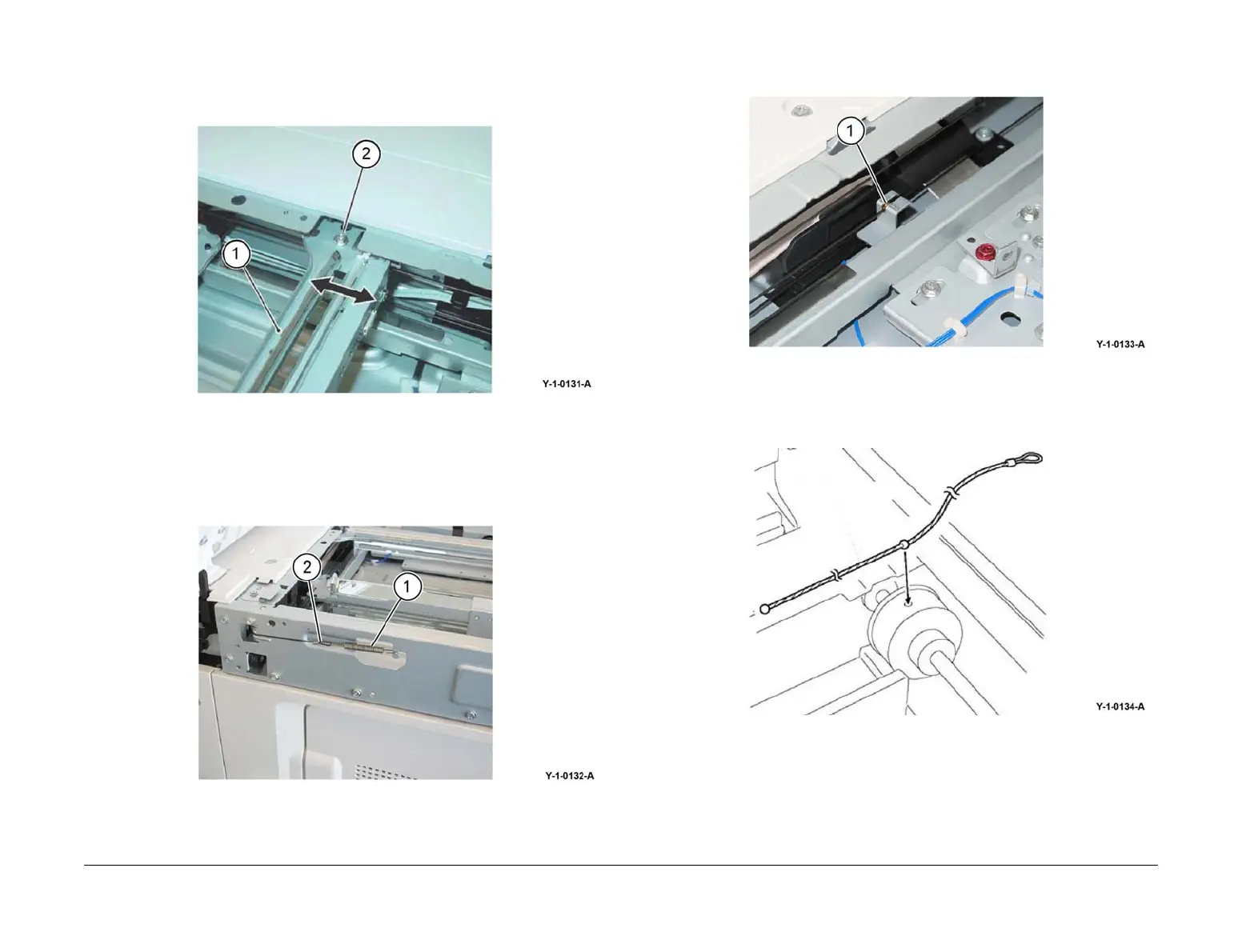

7. Detach the carriage cable from the full rate carriage, Figure 3:
a. Move the full rate carriage (1) to the cutout in the frame.
b. Remove the screw (2).
Figure 3 Cable detachment
8. Prepare to remove the carriage cable, Figure 4:
a. Unhook the extension spring (1) from the frame.
b. Detach the cable (2) from the extension spring.
Figure 4 Preparation
9. Remove the anchor ball (1) from the notch in the frame, then remove the carriage cable,
Figure 5.
Figure 5 Cable removal
Replacement
1. Insert the anchor ball of the carriage cable into the groove in the capstan, Figure 6.
Figure 6 Anchor ball
