Xerox VersaLink B7025 Service Manual

April 2017
4-151
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.5
Repairs and Adjustments
Launch Issue
CAUTION
Be careful when lifting out the full rate carriage. It is still connected to the FFC cable and can-
not be fully removed from the scanner assembly.

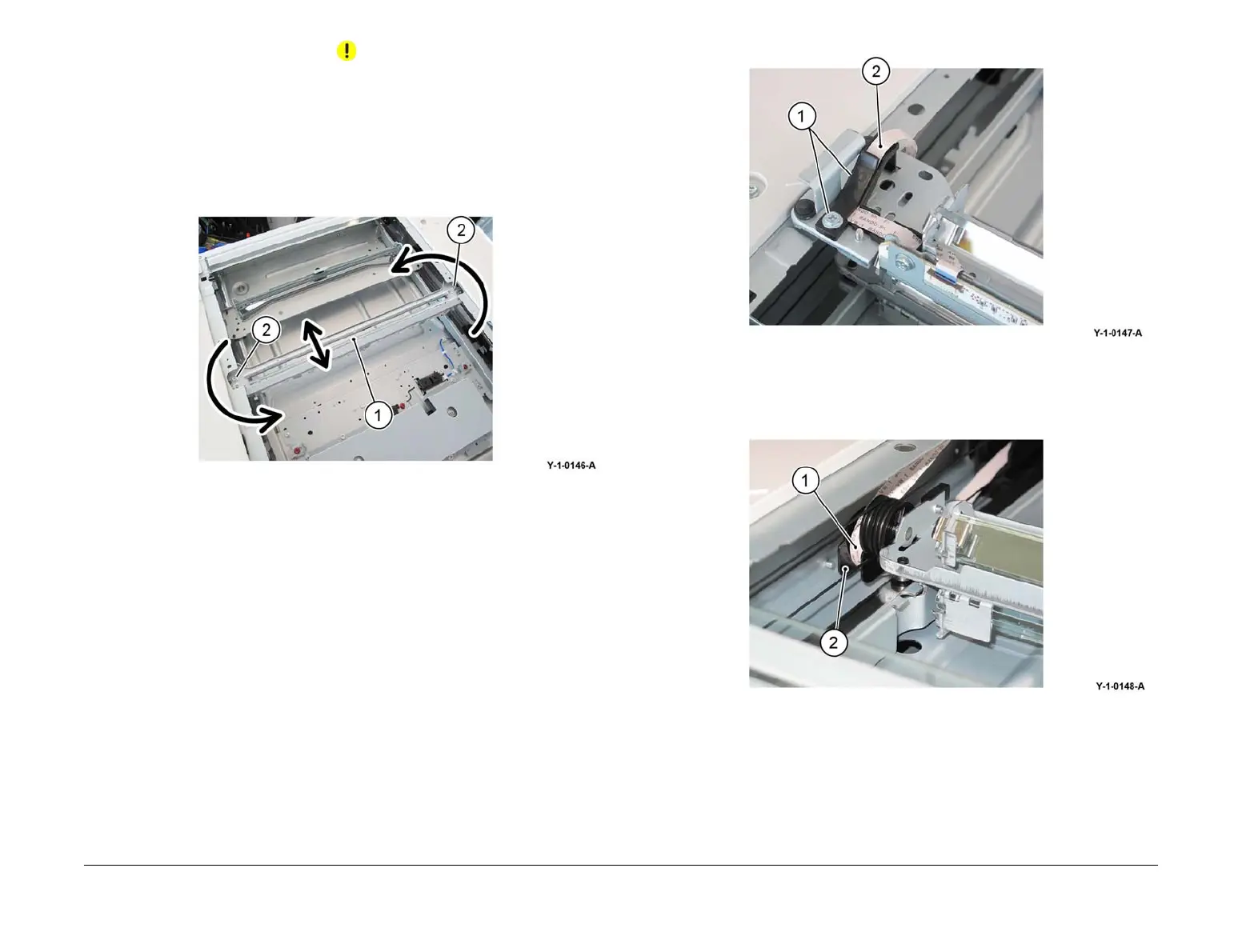

4. Lift out the full rate carriage from the scanner assembly, Figure 2:
a. Move the full rate carriage (1) to the cutouts in the frame.
b. Remove two screws (2).
c. Carefully lift out the full rate carriage.
Figure 2 Full rate carriage removal
5. Turn the full rate carriage upside down.
6. Disconnect the FFC LED cable assembly from the full rate carriage, Figure 3:
a. Remove the screw, then remove the plate (1).
b. Disconnect the FFC LED cable assembly (2).
Figure 3 Cable assembly disconnection (1)
7. Disconnect the FFC LED cable assembly (1) from the half rate carriage harness guide
(2), Figure 4.
Figure 4 Harness guide

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
