Xerox VersaLink B7025 Service Manual

April 2017
4-159
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 60.9
Repairs and Adjustments
Launch Issue

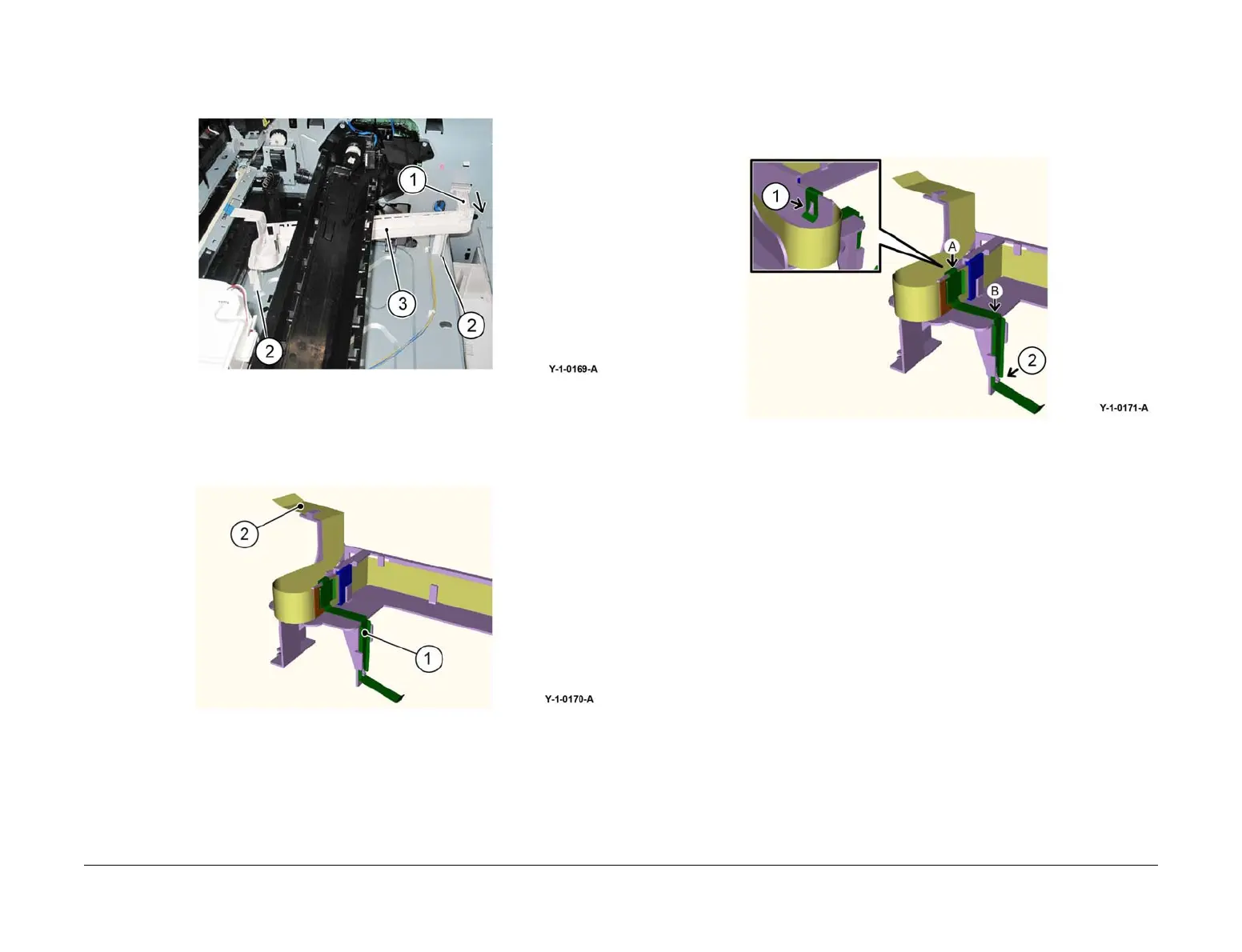

11. Remove the harness assembly, Figure 9:
a. Pull the FFC cable (1) toward the inside of the machine.
b. Disengage the hooks (2) on the foot, then remove the harness assembly (3).
Figure 9 Assembly removal
12. Remove the FFC cable, Figure 10:
a. Remove the FFC conductor (1).
b. Remove the FFC cable (2).
Figure 10 FFC cable removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Connect the FFC cable as shown in Figure 11.
a. Push section A of the spring and hook it to the tab (1) of the guide.
b. Push section B of the spring and hook it to the tab (2) of the guide.
Figure 11 Cable replacement

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
