Xerox VersaLink B7025 Service Manual

April 2017
4-169
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.6
Repairs and Adjustments
Launch Issue
5. Remove the front tray cables, Figure 4:
a. Remove the E-ring, wire guide and pulley (1).
b. Remove the cables (2).

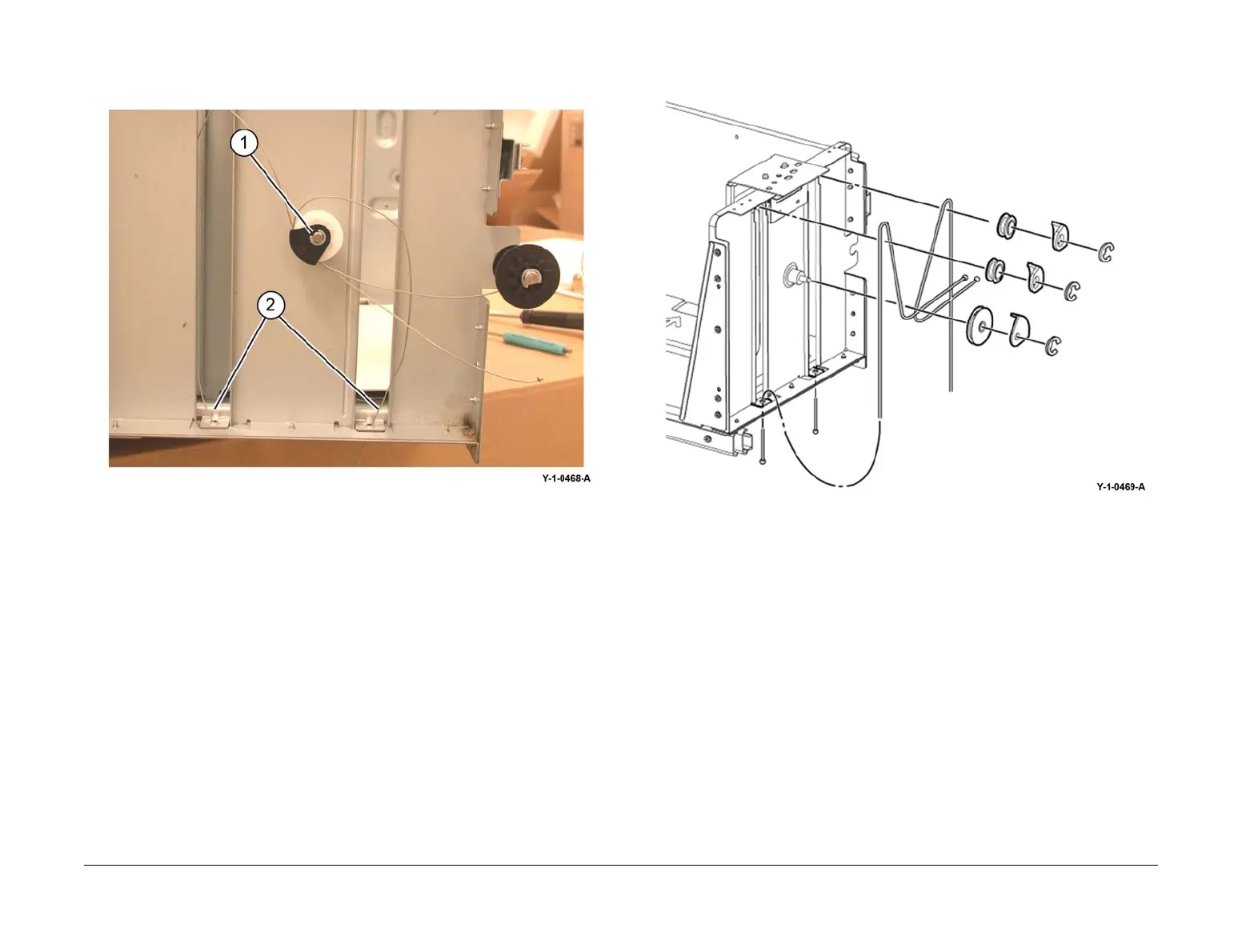

Figure 4 Front cables removal
Replacement
1. The replacement is the reverse of the removal procedure. Refer to Figure 5.
Figure 5 Replacement
2. When reinstalling the HCF tray front cover, raise the gear on the indicator shaft so that it
meshes with the adjoining lift shaft gear.
