Xerox VersaLink B7025 Service Manual

April 2017
4-184
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.8
Launch Issue
Repairs and Adjustments

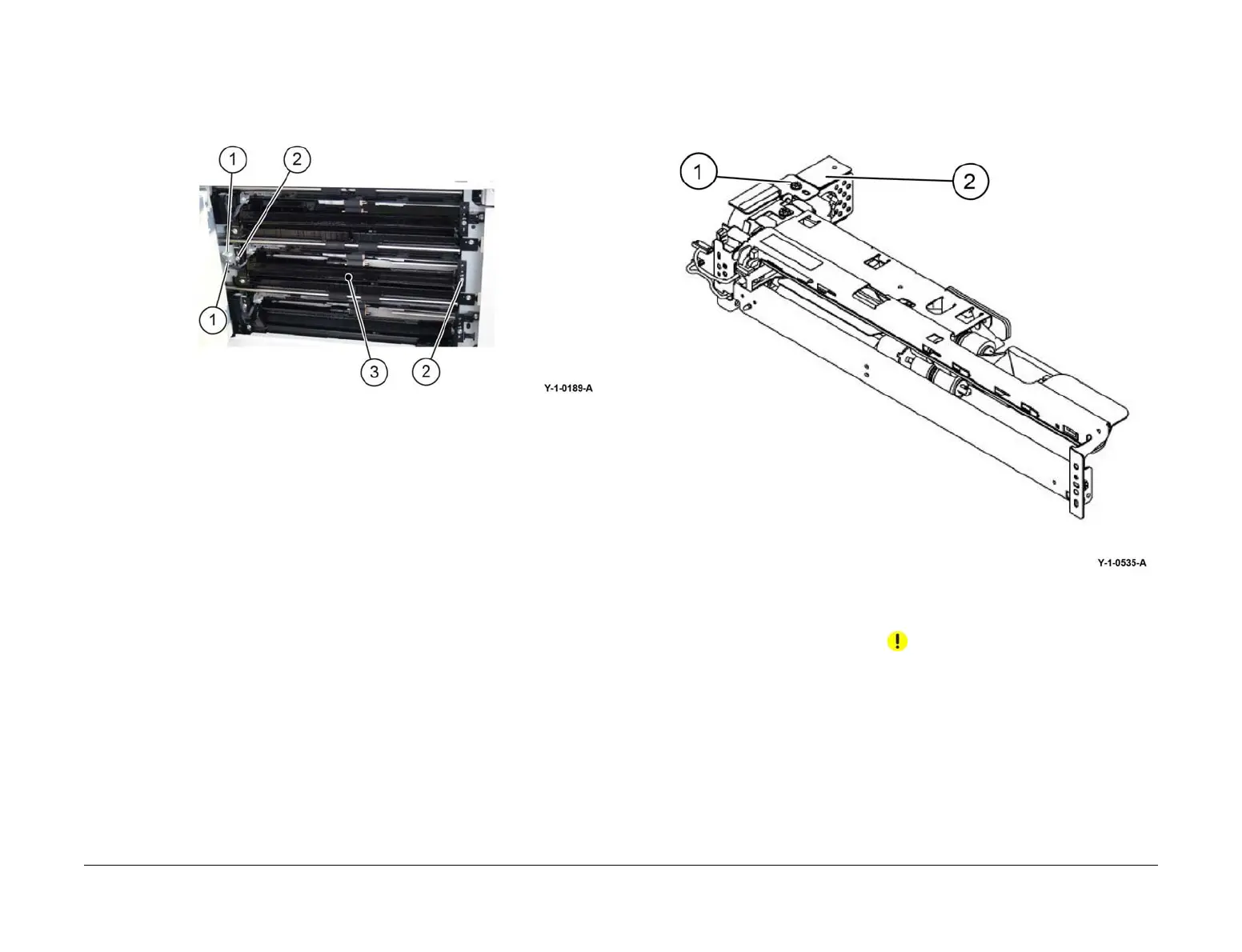

5. Remove the tray 3 feeder assembly, Figure 2:
a. Disconnect two connectors (1).
b. Remove two screws (2).
c. Remove the tray 3 feeder assembly (3).
Figure 2 Tray 3 feeder assembly removal
6. Remove the FDR 2T cover from the tray 3 feeder assembly, Figure 3.
a. Remove the screw (1).
b. Remove the FDR 2T cover (2). Retain the cover for installation onto the new tray 3
feeder assembly.
Figure 3 FDR 2T cover removal
Replacement
CAUTION
Ensure that the FDR 2T cover is installed onto the new tray 3 feeder assembly. Refer to Figure
3.
1. The replacement is the reverse of the removal procedure.
2. If new tray 3 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-802.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
