6 Click Accept to select the first surface for filleting.
You are prompted to select the second set of surfaces.
7 Click the cylinder surface to select it.
The surface is selected and highlighted in yellow, and an Accept button
appears in the bottom right corner of the view.
8 Click Accept to select the second surface for filleting.

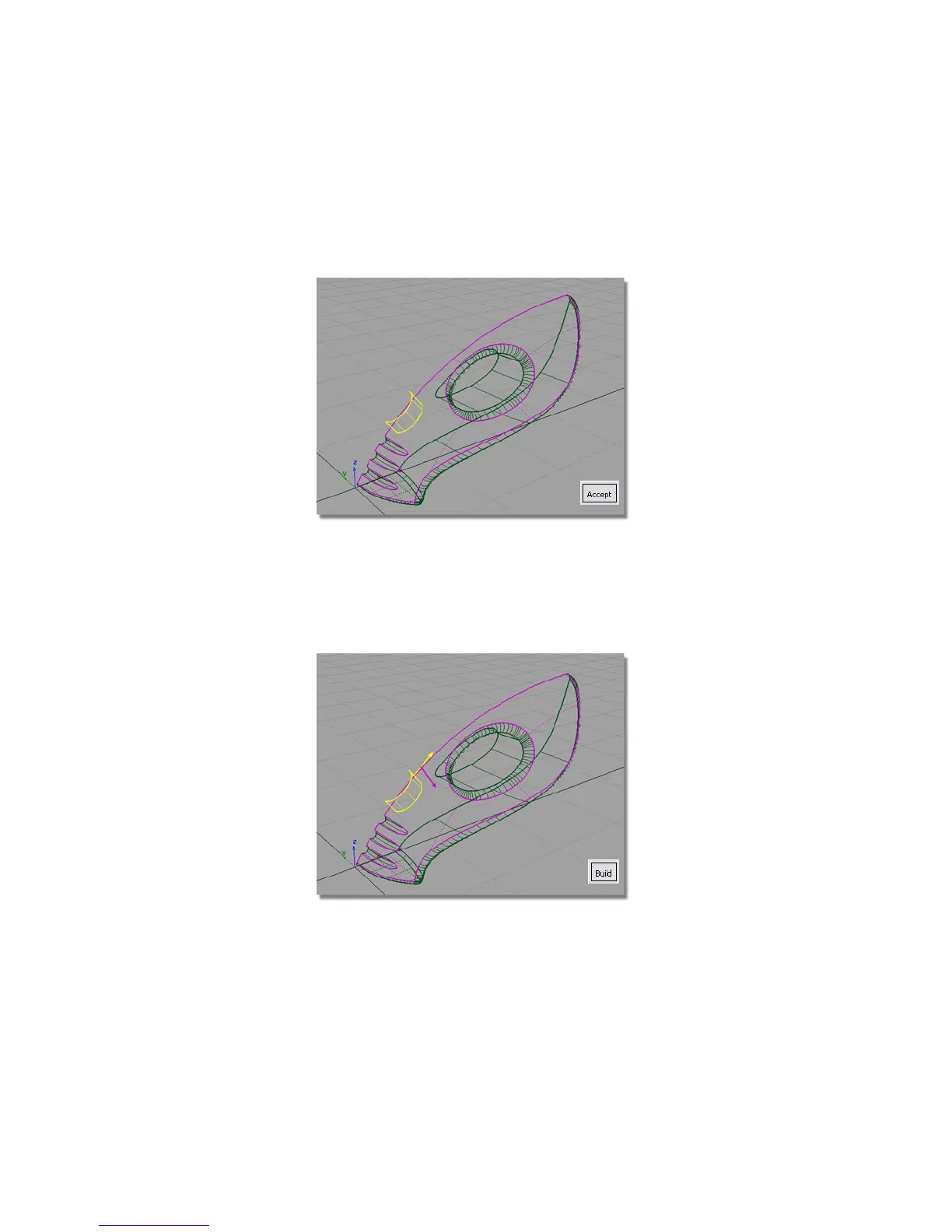

Arrows appear on both surfaces, indicating on which side of the surfaces
the fillet will be built.
The pink arrow needs to point in towards the inside of the vacuum
surfaces. If it is pointing out from the surfaces, click the arrow to reverse
it.
Part 6: Power Button | 363
