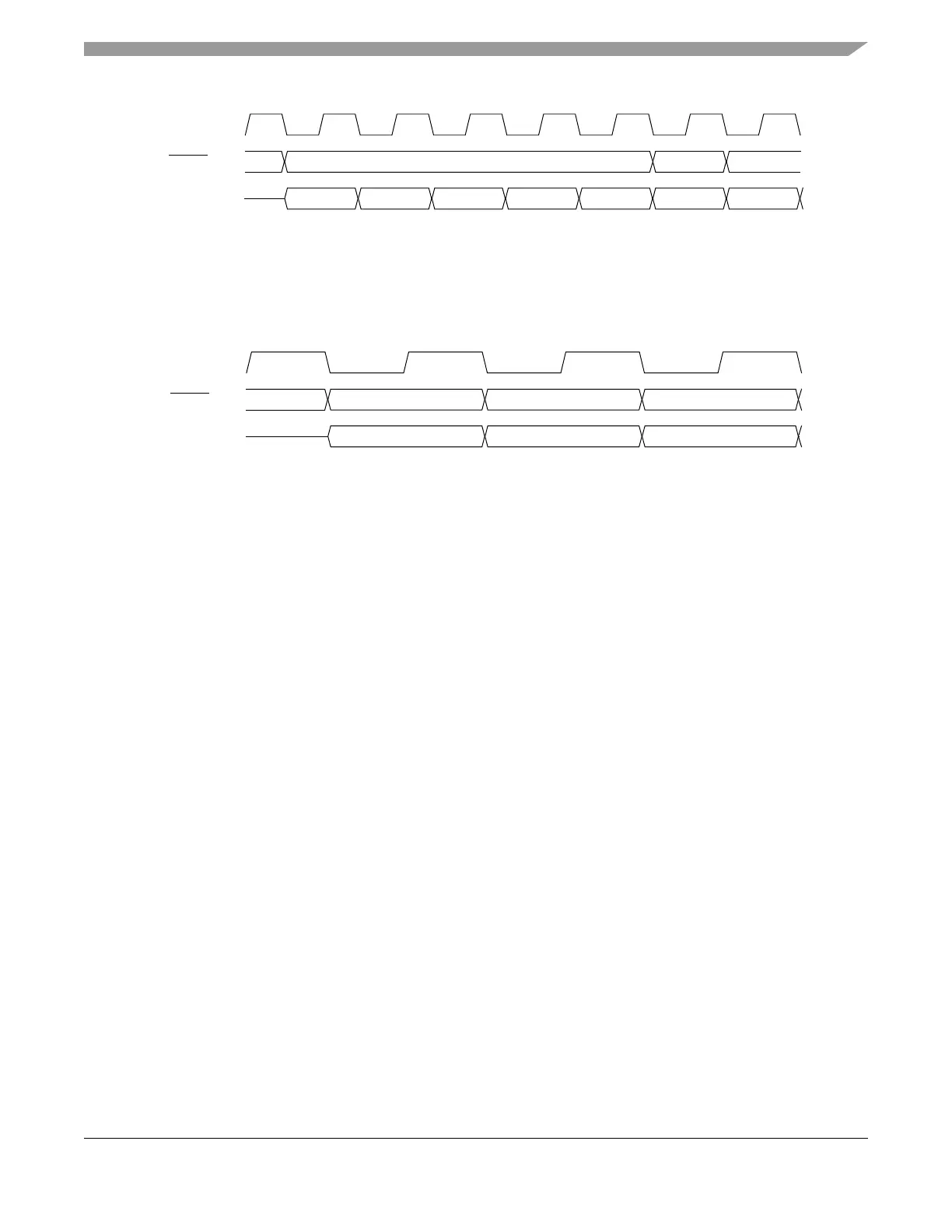

Figure 25-46. Data Trace—Data Read with Sync Message
Figure 25-47. Error Message (Data Trace only encoded)
00001110 11000000 01011001 11010001 00101000 00000000 01011100
MCKO
MSEO
[1:0]
TCODE = 14
Source Processor = 0b0000
Data Size = 000 (Byte)
Full Access Address = 0x0146_8ACE
00
MDO[7:0]
11
Write Data = 0x5C
01 11
MCKO
MSEO
[1:0]
TCODE = 8
Source Processor = 0b0000
Error Code = 2 (Queue Overrun – DTM Only)
00
MDO[7:0]
11 11 xx
00001000 00001000 xxxxxxxx
