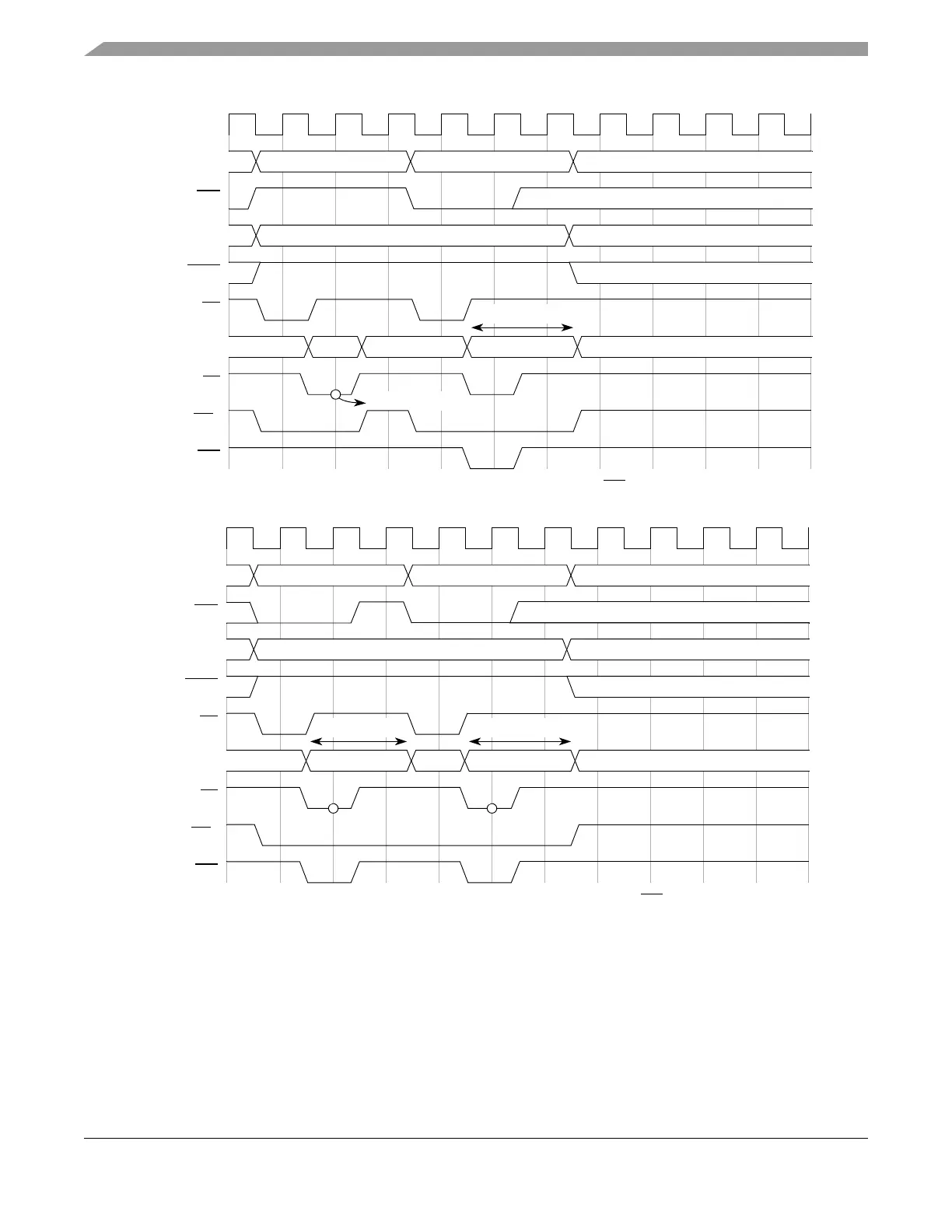

Figure 12-19. Write After Read to the Same CS Bank
Figure 12-20. Back-to-Back 32-bit Writes to the Same CS
Bank
DATA is valid
CLKOUT
ADDR[8:31]
TS
DATA[0:31]
TA
RD_WR
TSIZ[0:1]
BDIP
WE
CSx
00
DATA is valid
CLKOUT
ADDR[8:31]
TS
DATA[0:31]
TA
RD_WR
TSIZ[0:1]
BDIP
WE
CSx
00
DATA is valid DATA is valid
