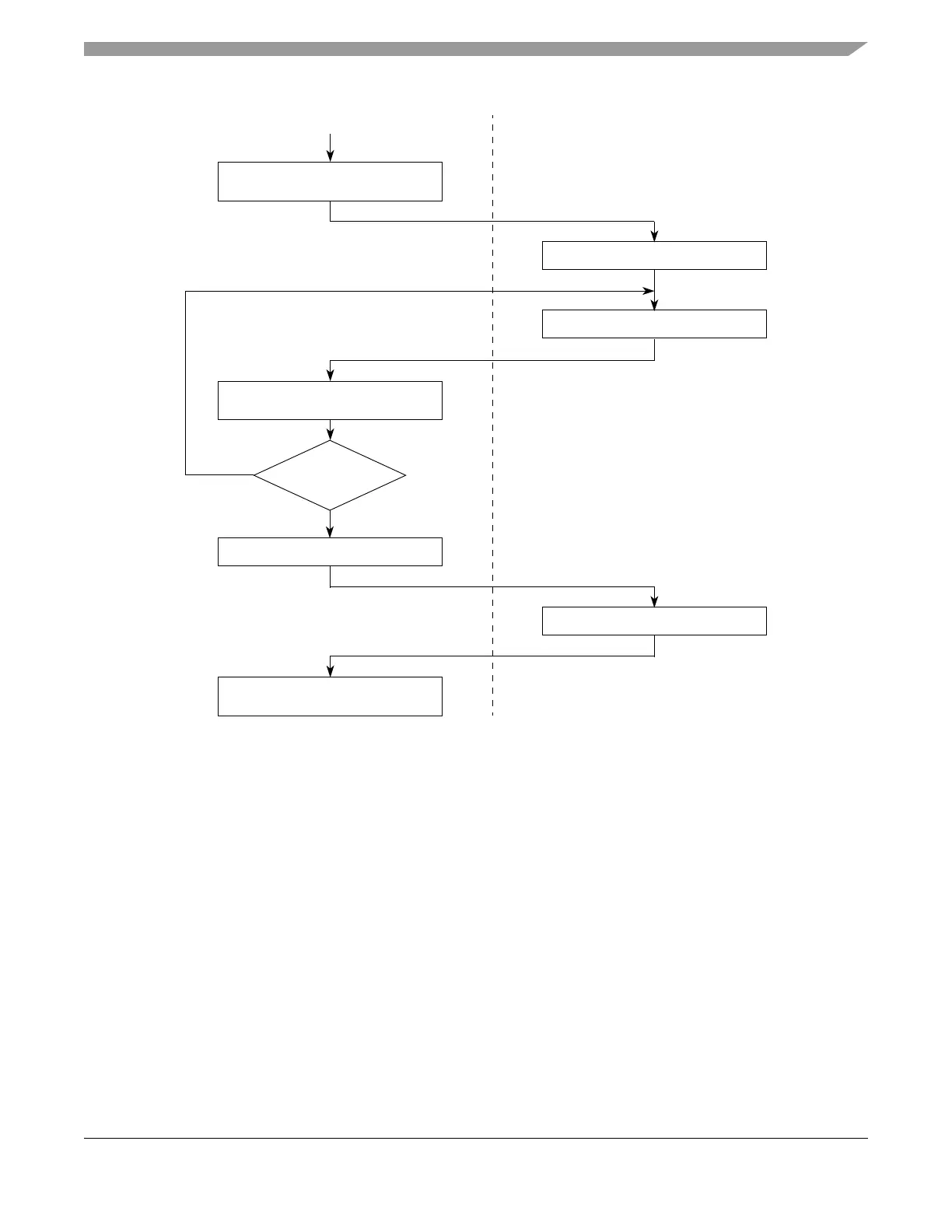

Figure 12-22. Basic Flow Diagram of a Burst Read Cycle
No
Ye s
Receives Address
Asserts Transfer Start (TS)
Drives Address and Attributes
Master
Next to
Last Data Beat
Slave
Drives Data
Asserts Transfer Acknowledge (TA)
Receives Data
?
Negate BDIP
Drives Last Data
Asserts Transfer Acknowledge (TA)
Receives Last Data
Assert BDIP
