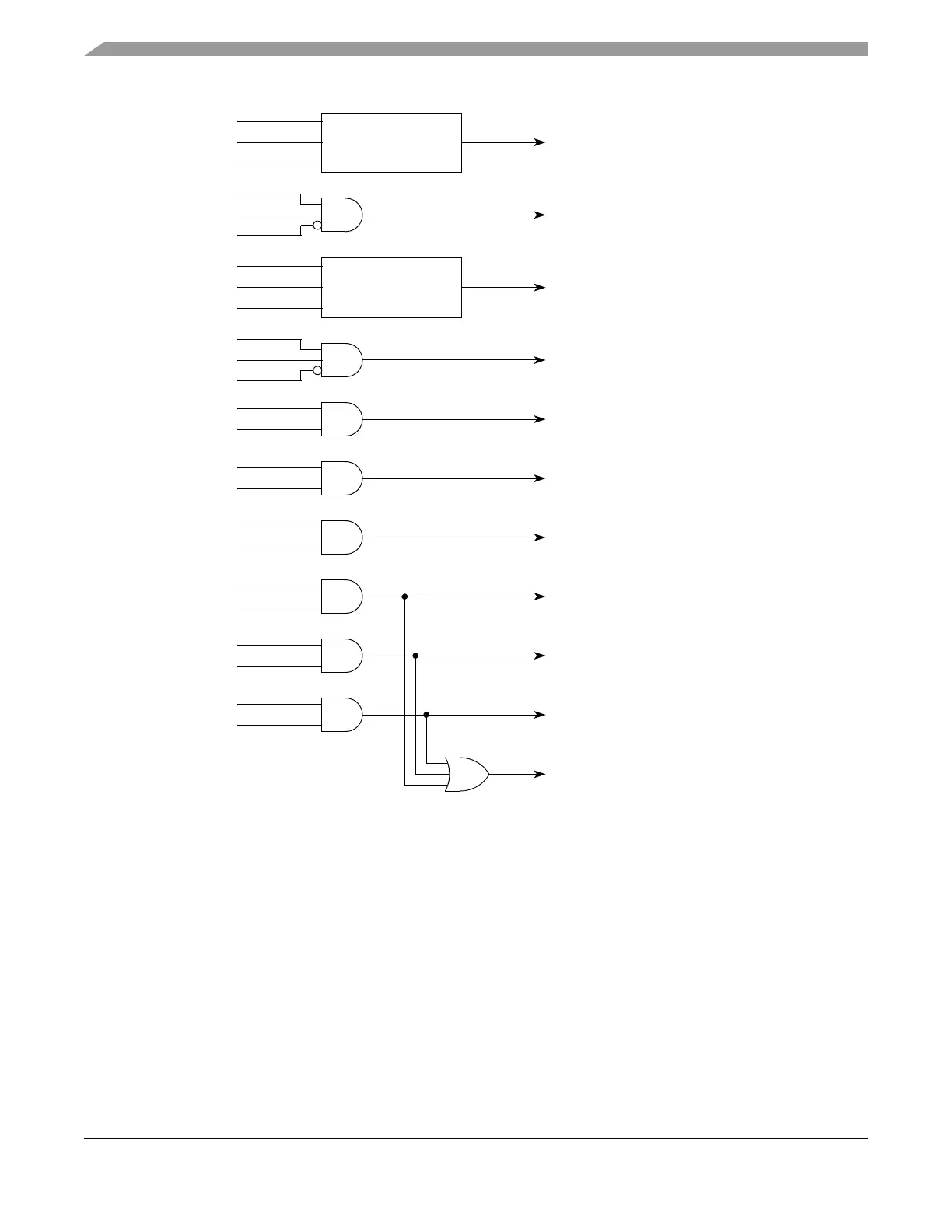

Figure 19-54. eQADC eDMA and Interrupt Requests
RFDEn
RFDFn
RFDSn
RFIFO Drain Interrupt Request
CFFEn
CFFFn
CFFSn
CFIFO Fill DMA Request
RFDEn
RFDFn
RFDSn
RFIFO Drain DMA Request
DMA
Request Generation
Logic
CFFEn
CFFFn
CFFSn
CFIFO Fill Interrupt Request
NCIEn
NCFn
Non-Coherency Interrupt Request
PIEn
PFn
Pause Interrupt Request
EOQIEn
EOQFn
End of Queue Interrupt Request
TORIEn
TORFn
Trigger Overrun Interrupt Request
CFUIEn
CFUFn
CFIFO Underflow Interrupt Request
RFOIEn
RFOFn
RFIFO Overflow Interrupt Request
DMA
Request Generation
Logic
Combined Interrupt Request
