OPERATION
Disconnect the center-link as follows:
13. To unlock the center-link, pull up on latch (A) and
position latch into notch (B) on top of hook.
14. Lift center-link off header pin.
NOTE:
If cente r-lin k self-alignme nt kit is installed, start
engine and raise center-link with the REEL UP
switch on the ground speed lever (GSL).
15. Slowly back windrower away from header, shut engine
OFF, and remove key from ignition.

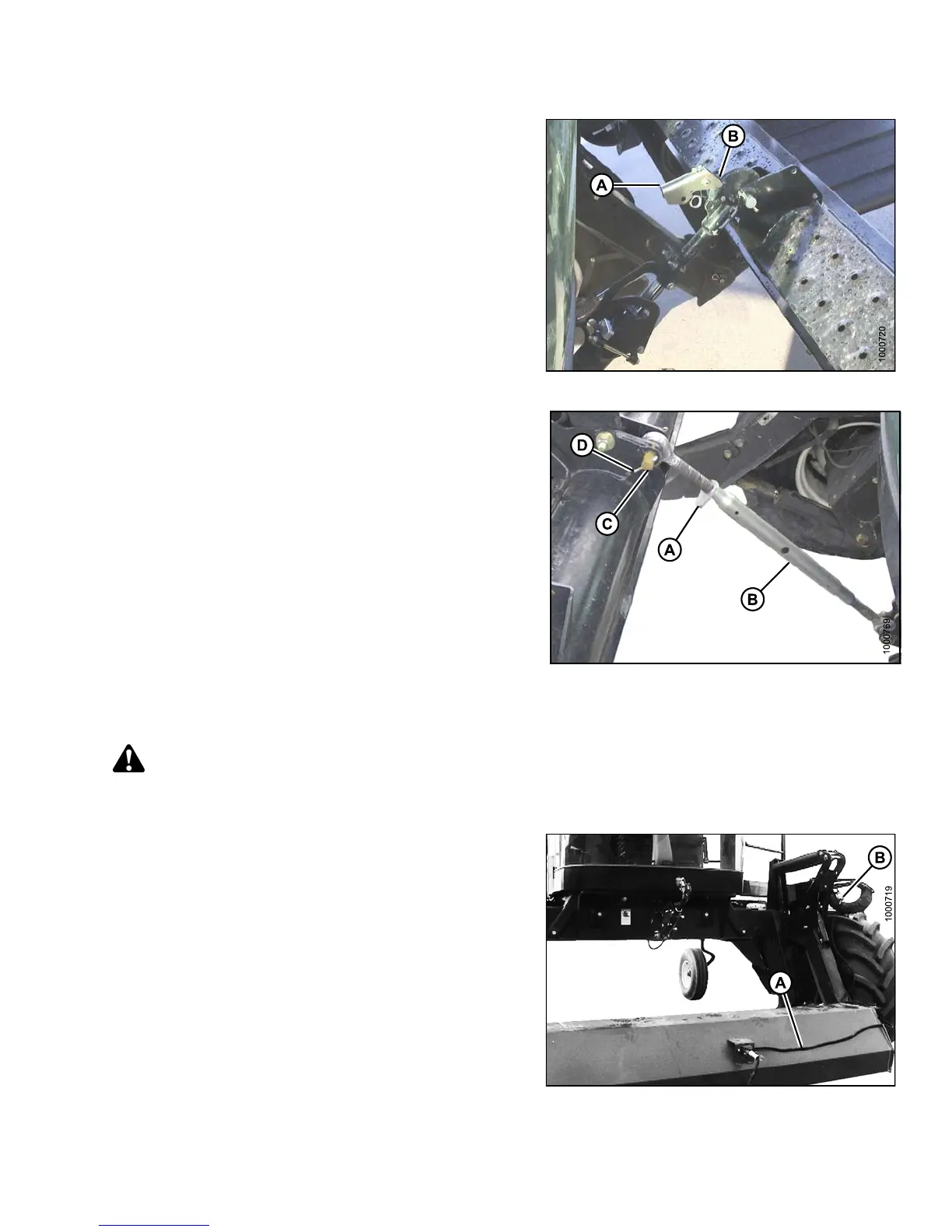

Figure 4.43: Hydraulic Link
16. If using a mechanical link, disconnect the center-link as
follows:
a. Loosen nut (A) and rotate barrel (B) to relieve load
on link.
b. Remove cotter pin (D) on pin (C), and remove
pin to disconnect from windrower. Reinstall pin
in header.
Figure 4
.44: Mechanical Link
Conver
ting from Transport Mode to Field Operation
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Stop engine and remove key from ignition.
2. Disconnect electrical harness at connector (B) from
windrower and store harness (A) on weight box.
Figure 4.45: Electrical Harness
147649 181 Revision A
