OPERATION

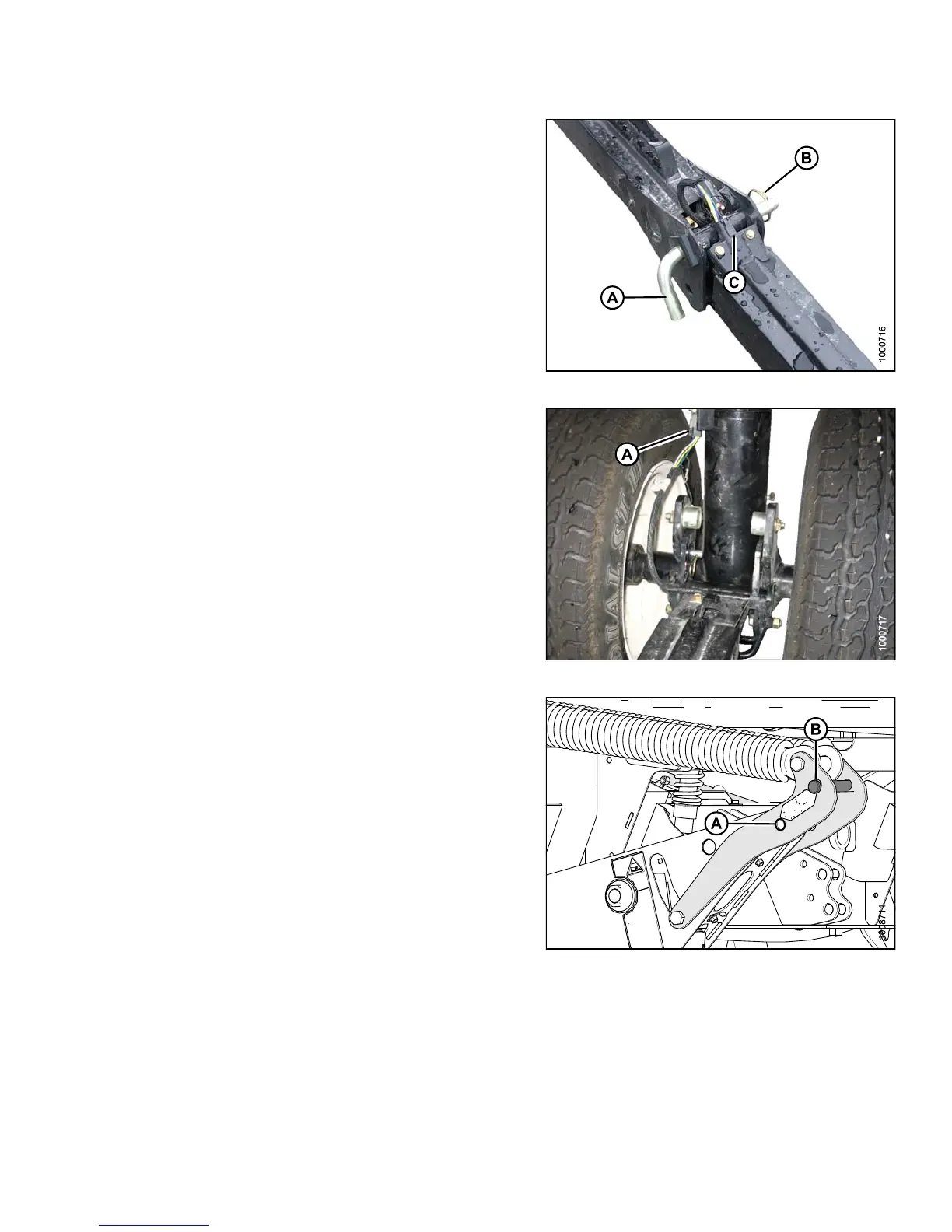

6. Fully insert L-pin (A) in upper hole and turn pin to lock
it. Secure w ith ring pin (B).
7. Make electrical connection at the joint (C).
Figure 4.55: Transport H itch
8. Make the electrical connection at the header wheel (A).
Figure 4.56: Header Transport Wheel
IMPORTAN T:
To prevent damage to the lift system w hen lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT
installed at hole location (A).
Figure 4.57: Lift Linkage
