OPERATION
14. Start engine and press HEADER DOWN switch (A) on
ground speed lever (GSL) to lower lift arms until the lift
arm lifts awa y from the linkage at the rear of the lift arm.

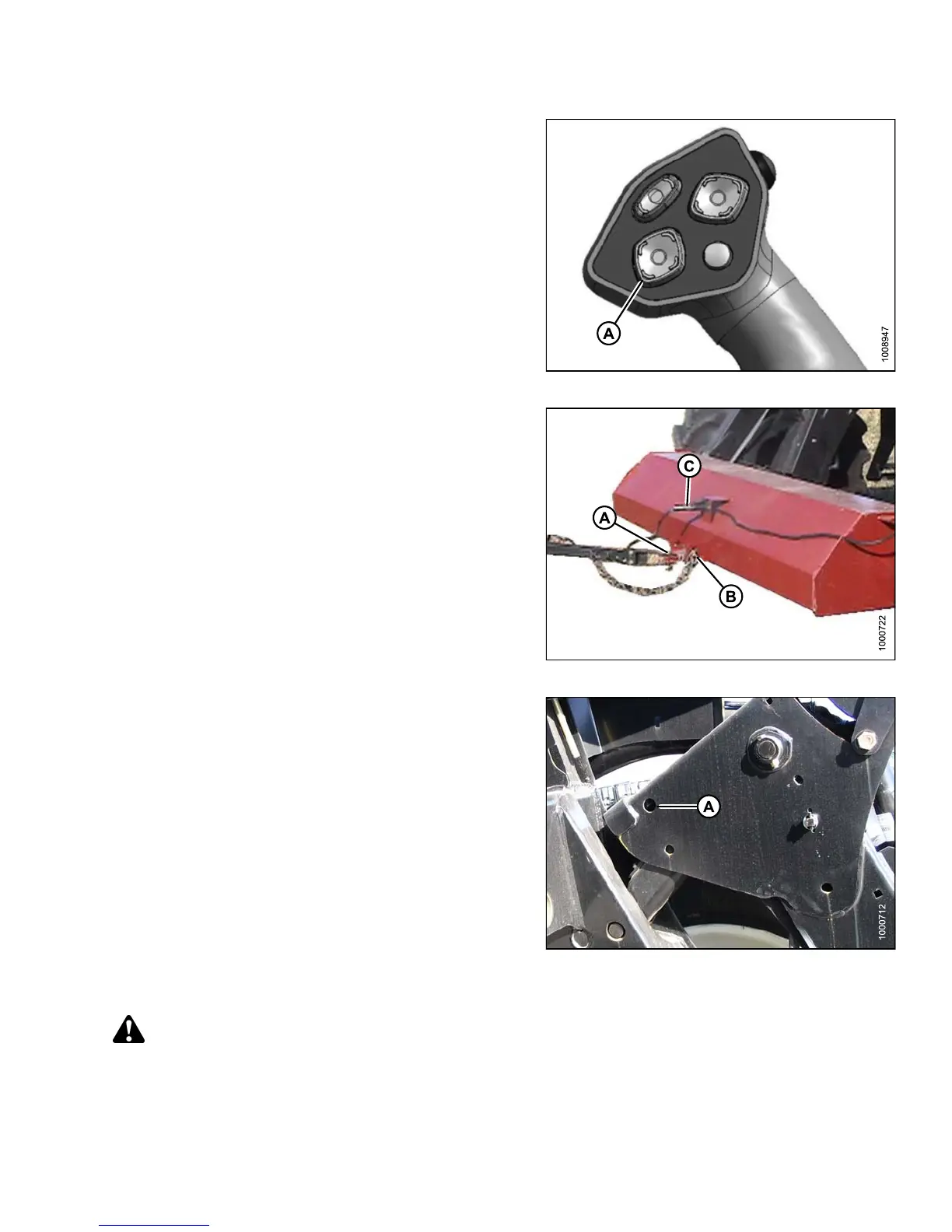

Figure 4.61: GSL
15. Attach slow speed transport hitch to the weight box
tongue with drawbar pin. Secure using lynch pin (A).
Attach safety chain (B).
16. Connect hitch harness (C) to electrical socket at front
of weight box.
Figure 4.62: Weight Box
17. Remove
the temporary lift pins (A) (should be loose in
lift ar
m) and place into storage holes on weight box.
Figure 4.63: Lift Arms
Converting from Field to Transport Mode
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
