OPERATION
DANGER
To avoid bodily injury from fall of raised header, always engage safety props when w orking on or around
raised header, and before going under header for any reason.
1. Set header on the ground (field position).
2. Disconnect the following hydraulic and electrical connections:
a. Left Side – Store hydraulic hoses and electrical cable into the storage position. Refer to header operator’s
manual.
b. Right Side – Release the multi-link and place into storage on windrower. Refer to header operator’s manual.
3. Retrieve temporary lift pin from storage location on
weight box and install into rear hole (A) at the top of
the lift arms. This provides additional lift height for
transport wheel deployment.
CAUTION
Check to be sure a ll bystanders have cleared the area.
4. Start engine a
nd raise header to full height.
5. Stop engine a
nd engage safety props on lift cylinders.

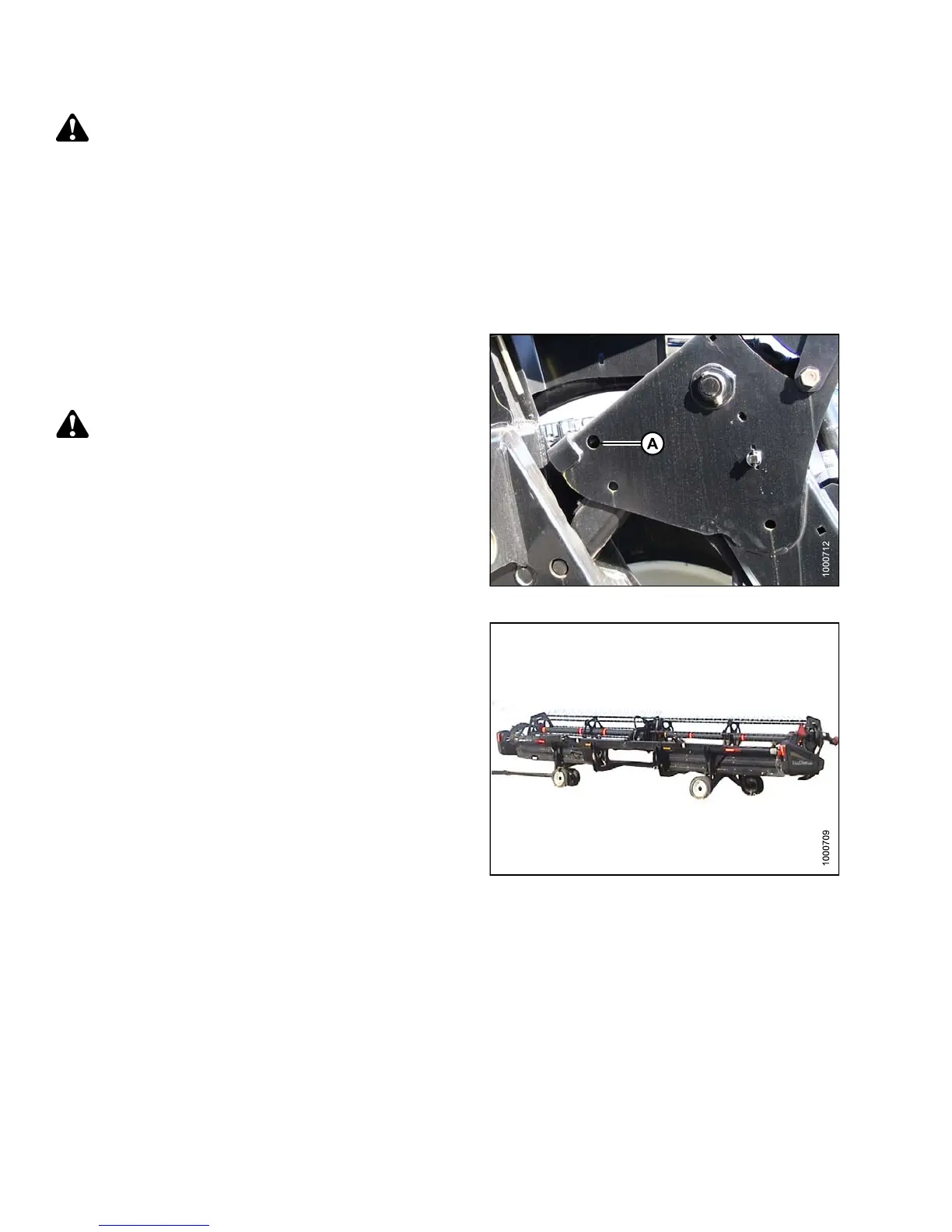

Figure 4.64: Lift Arms
6. Deploy header slow speed transport system. Refer to
header operator ’s manual.
Figure 4.65: Header in Transport Mode
147649 188 Revision A
