MAINTENANCE AND SERVICING
Installing Primary Ai r Filter
NOTE:
If replacing air fi lter, refer to 8.2.4 Filter Part
Numbers, page 467.

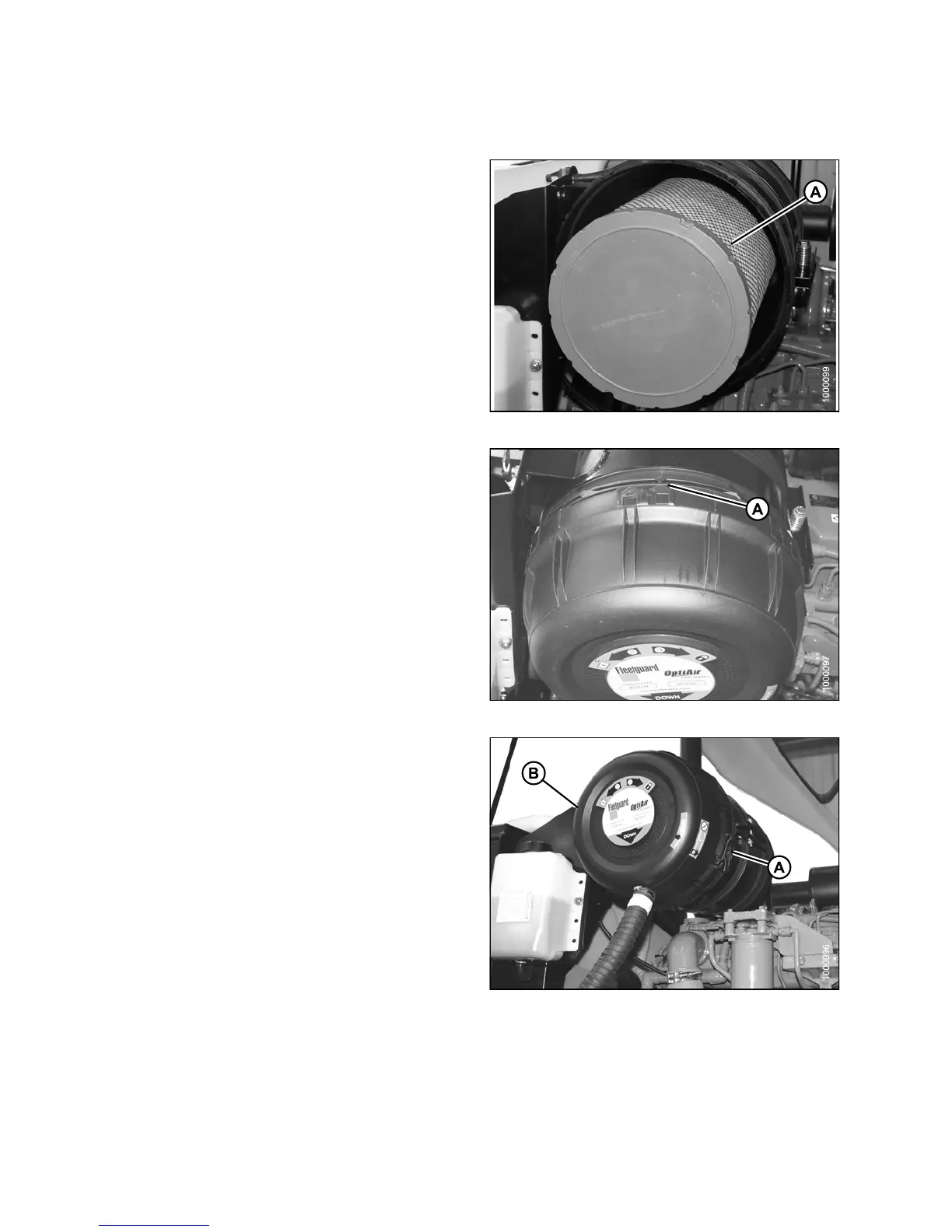

1. Insert new primary filter element (A) into canister over
secondary element, and push into place, ensuring that
element is firmly seated in canister.
Figure 5.6
6: Engine Air Cleaner
2. Align arrow (A) to UNLOCK position on end cap, and
push end cap fully onto housing.
3. Rotate end cap clockwise until catch (A) engages
housing to prevent end cap from turning.
Figure
5.67: Engine Air Cleaner
4. Position end cap (B) onto filter housing with aspirator
pointing approximately down.
5. Secure end cap onto filter housing by closing latch (A).
Figu
re 5.68: Engine Air Cleaner
147649 342 Revision A
