MAINTENANCE AND SERVICING
• Upper limit of the beam NOT higher than 49-3/4 in.
(1263 mm) above ground at a distance of 25 ft. (7.5 m)
from the headlight.

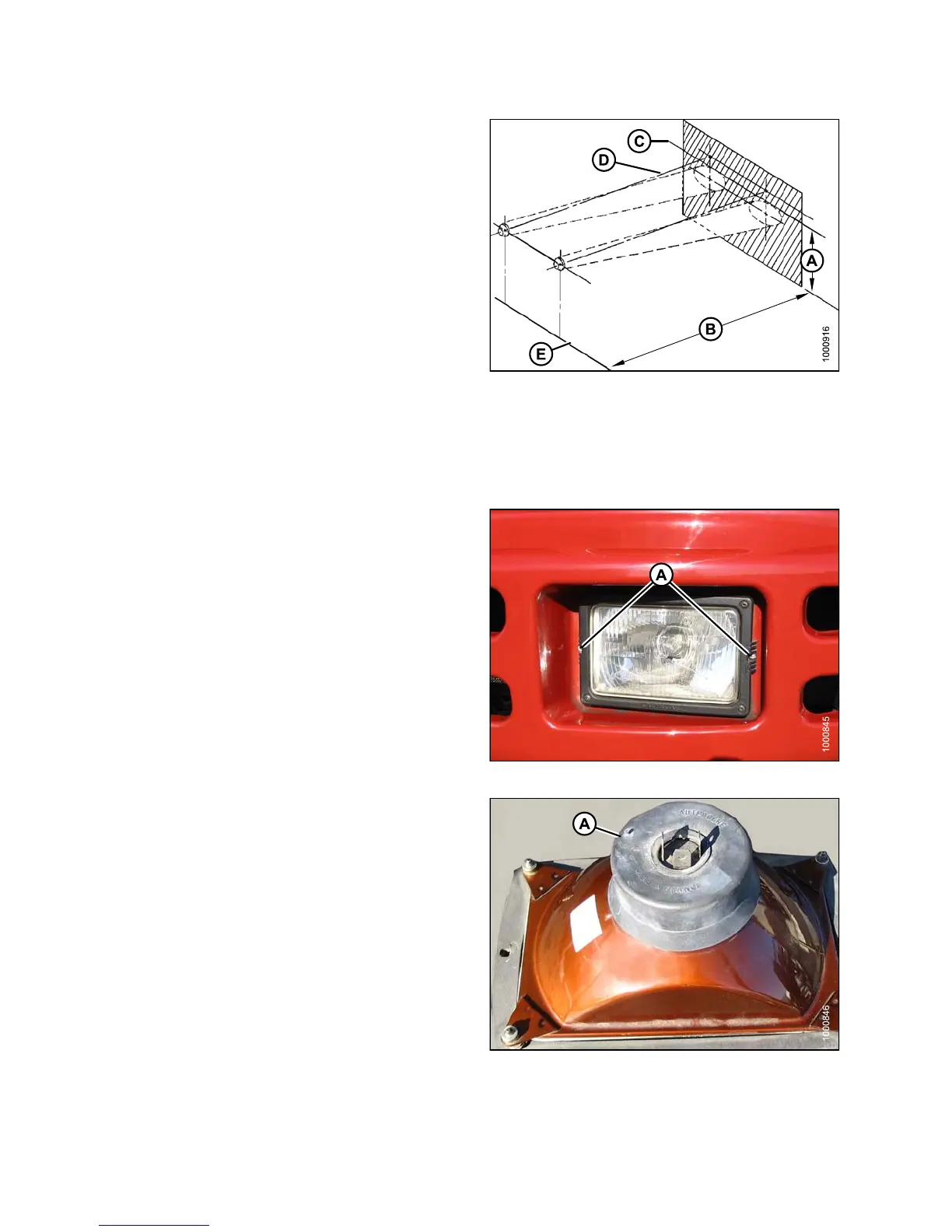

Figure 5.134: Headlight Beam Positioning
A - 49.75 in. (1263 mm) Maximum B - 25 ft (7.5 m)
C-TopEdgeo
f Beam
D - Beam Cent
ered on Direction
E - Ground of Travel Line
Replacing Headlight Bulb
1. Remove two screws (A) and remove headlight
assembly from hood.
Figure 5.135: Headlights
2. Pull wiring harness connector off the headlight
assembly and remove rubber insulator boot (A).
Figure 5.136: Headlight Assembly
147649 378 Revision A
