M3SR Series 4100 Basic Configuration of the Radio
2.8.1 Changing Radio IP Settings Using a Built-in Control Unit
The following description guides through the individual steps required to change the radio
default IP settings (see Table 2.1) with the help of the built-in control unit. These instructions
assume that to begin with the default IP settings are selected on both radio and built-in con-
trol unit (see Table 2.1 and sect. 2.9 Basic Configuration of the Control Unit). Further expla-
nations for radio configuration can be found in sect. 3.3 Control and Monitoring of Radio and
Control Unit.
The default local control unit IP address saved in the radio cannot be changed using the built-
in control unit. For this purpose use the upd32.exe.
To change the default IP settings of the radio proceed as follows:
1. Switch the radio with built-in control unit on (see sect. 2.6 Switching the Radio On)
2. If the control unit is not connecting automatically to the radio, proceed with the following
steps and connect the built-in control unit to the radio (see also sect. 3.3 Control and
Monitoring of Radio and Control Unit).
3. Once the control unit is connected to the radio, press the following softkeys and the dis-
play appears as shown in Figure 2.14.
4. Change the IP settings (IP Address, Subnet Mask and Gateway) of the radio. For details
see also sect. 3.4.5 Menu Radio MTC 2/7 (3002).

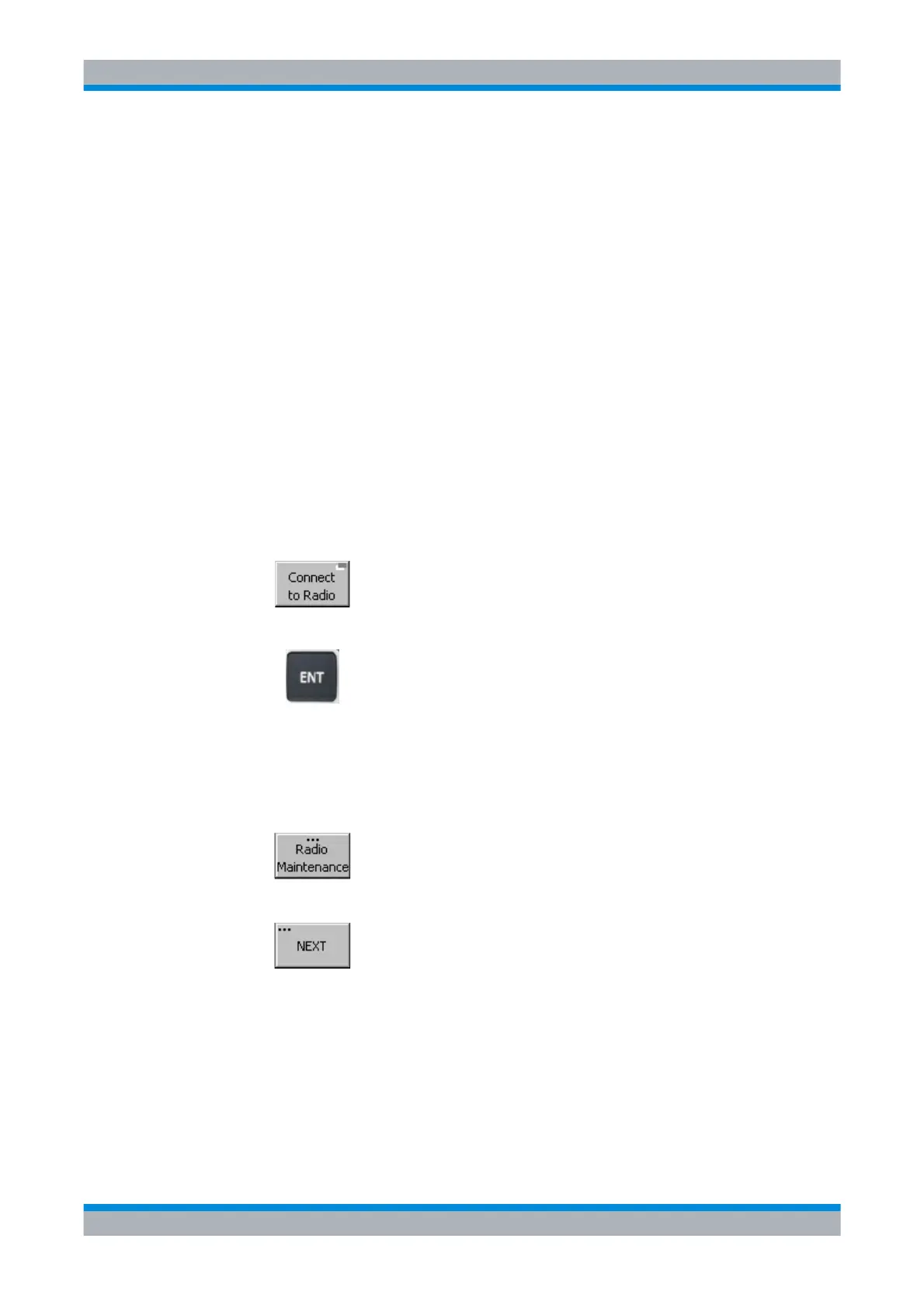

Press softkey.
Press button.
Press softkey.
Press softkey.
To Next Page
