M3SR Series 4100 Control Unit MTC 3/4 (4003)
3.114 Operating Manual 6175.4760.02 – 01
3.5.3 Control Unit MTC 3/4 (4003)

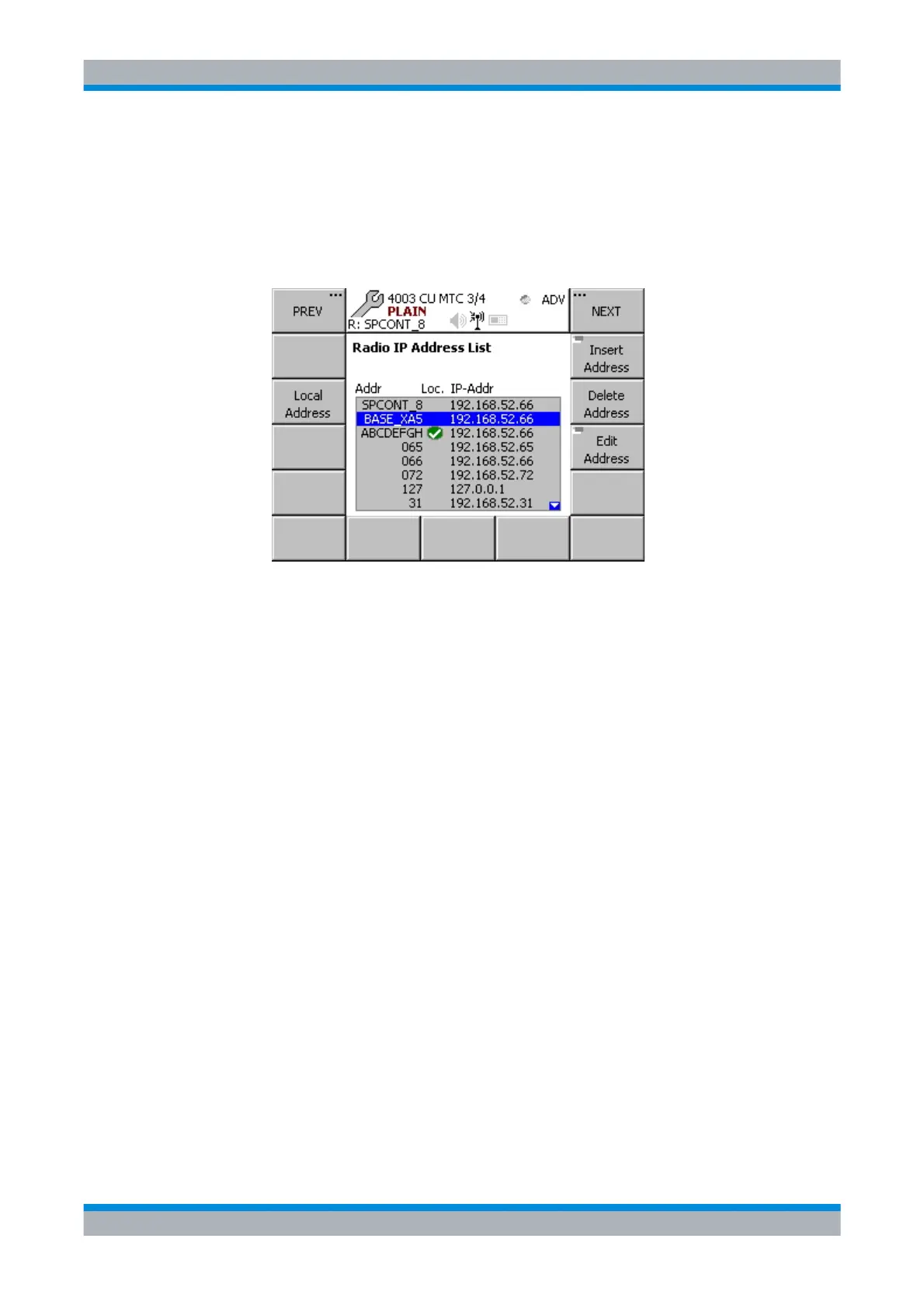

Figure 3.62 Menu 4003: CU MTC 4/3 (Example)
In the central area of the menu CU MTC 3/4 the Radio IP Address List is displayed. The Ra-
dio IP Address List contains a list of radios (represented by their IP addresses) the control
unit can connect to. To each radio a logical address (up to eigth characters) is assigned in
the list. One of the radios in the list can be marked as local (see Figure 3.64). To insert a new
entry in the list press the softkey 'Insert Address' (see Figure 3.62). The address will always
be inserted above the currently selected entry. To delete an entry in the list, select it with the
knob and press the softkey 'Delete Address' (see Figure 3.62). To edit an entry in the list,
select it and press the softkey 'Edit Address' (see Figure 3.62). To mark a radio in the list as
local, select it with the knob and press the softkey 'Local Address' (see Table 3.33).
In the example above (see Figure 3.62) the Radio IP Address List contains two radios:
Radio 1 with logical address 11 and IP address 192.168.52.11 and
Radio 2 with logical address 22 and IP address 192.168.52.22.
The control unit can connect to these two radios (see Figure 3.63).
ICN-4D-G-231000-R-D0894-00069-A-01-1
