M3SR Series 4100 Switching the Radio On

2.24 Operating Manual 6175.4760.02 – 01

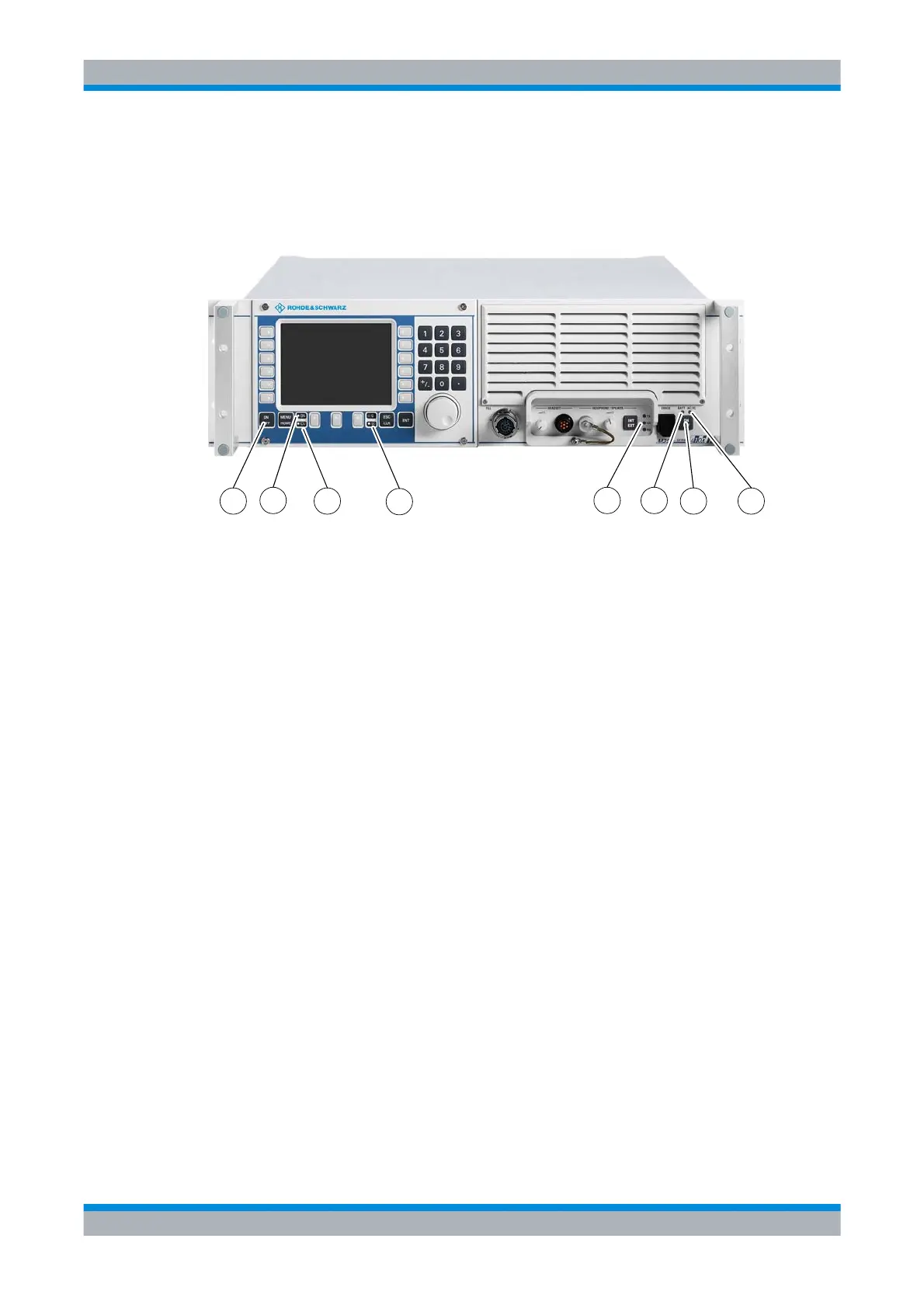

Figure 2.10 Switching the Radio with Built-In Control Unit On

1 Radio Button ON / OFF

2 Radio LED AC / DC

3 Radio LED BATT (Battery)

4 Radio LED GO

5 Control Unit Button ON / OFF

6 Control Unit LED ON

7 Control Unit LED CU

8 Control Unit LED GO

ICN-4D-C-231000-R-D0894-00016-A-01-1

1 2

3

4

5

6

7

8
