R&S M3SR 4100 Series - Figure 3.71 Home Menu: Fixed Frequency, E.g. F3 E Operation Mode (Rx Mode); Fixed Frequency Home Menu

Operating Manual 6175.4760.02 – 01 3.127
M3SR Series 4100 Fixed Frequency Home Menu
3.7.1.1 Fixed Frequency Home Menu
After selecting a Preset Page with Fixed Frequency operation mode (FF, sect. 3.3 Control
and Monitoring of Radio and Control Unit) the control unit comes up with the Home menu as
shown in Figure 3.71. In the central area the currently set main FF parameters are displayed.

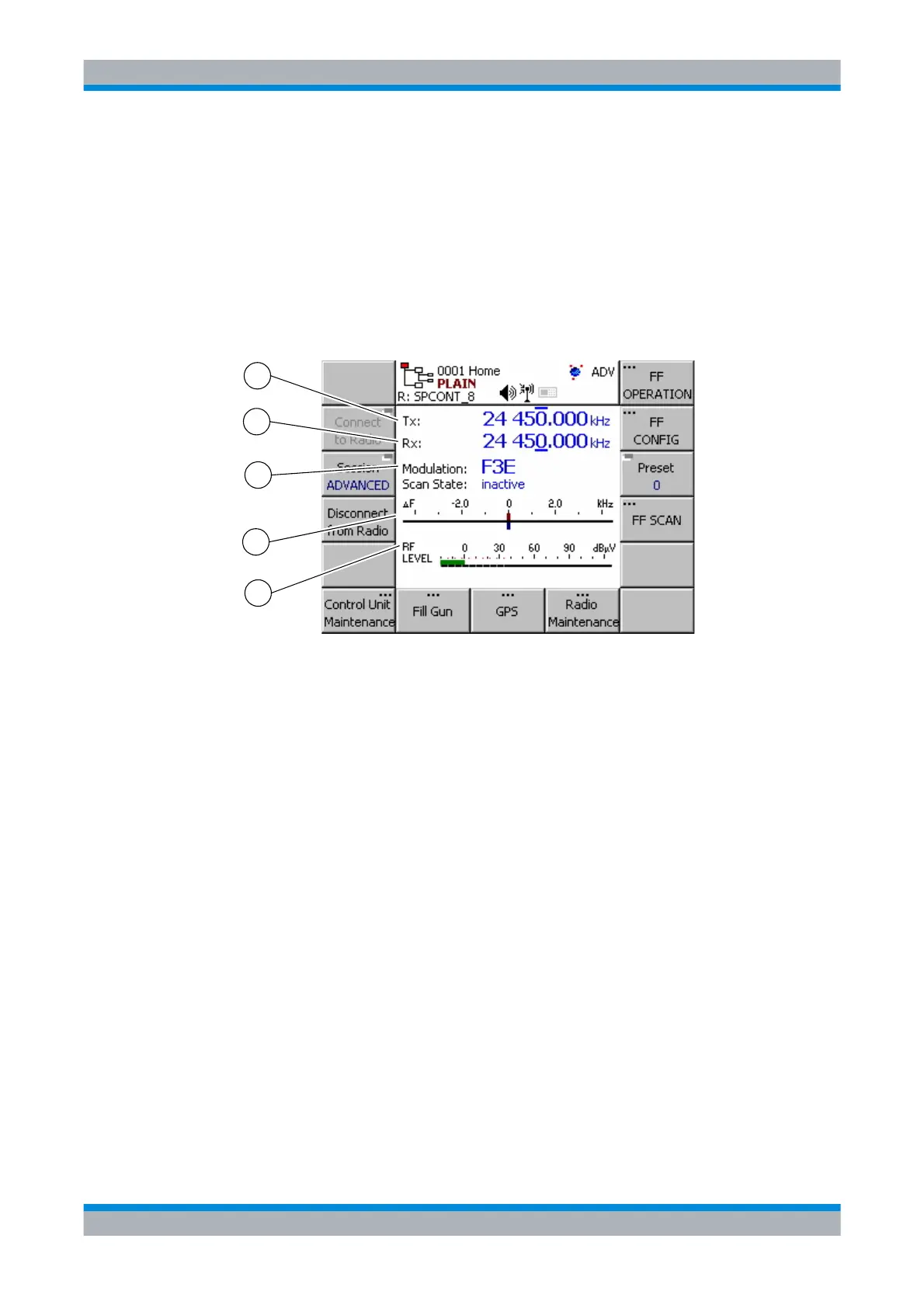

Figure 3.71 Home Menu: Fixed Frequency, e.g. F3E Operation Mode (Rx Mode)
1 Effective Tx Frequency
2 Effective Rx Frequency
3 Current Modulation Mode
4 Current Delta Frequency Deviation
5 Input Signal Level (RSSI)
If the radio is set to transmit mode, the central area shows different bar graphs.
1
2
3
4
5
ICN-4D-G-231000-R-D0894-00077-A-01-1
