Operating Manual 6175.4760.02 – 01 3.67
M3SR Series 4100 Menu PMU (3031)

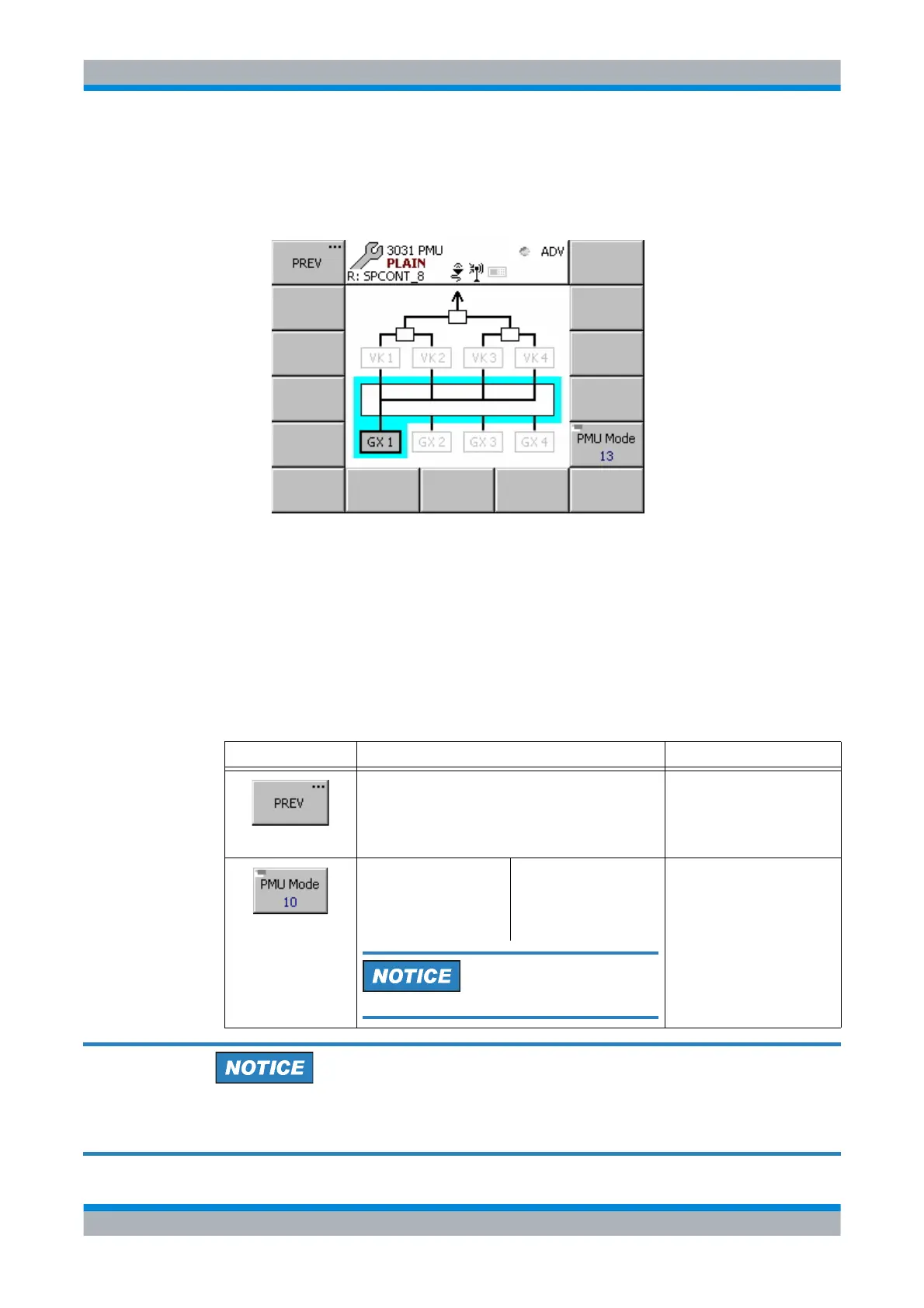

Figure 3.39 Menu 3031: PMU, e.g. 2 kW System
To change the mode at R&S GV4190 use the 'PMU Mode' softkey on the right-hand side.
The list box contains a short description of each mode. At R&S GX4100 the mode cannot be
changed, the button is grayed out and shows the current mode of the PMU it is connected to.
The MMI only shows one PMU of a possibly larger HF-BB system. Installations con-
taining more than one PMU must not be configured via R&S GB4000C! To configure
such installations use a superior control system like R&S SIMCOS.
Softkey Description Possible Values
Navigate to the previous menu (Radio MTC 1/7).
Open a list box and use
the knob to select the
mode.
Press 'ENT' to confirm.
Default: mode 00 00, 01, 02, 10, 11, 12, 20, 21,
22, 13, 23, 33, 43
This softkey gets active only at R&S GV4190.
ICN-4D-G-231000-R-D0894-02201-A-01-1
