M3SR Series 4100 Troubleshooting
6.4 Operating Manual 6175.4760.02 – 01

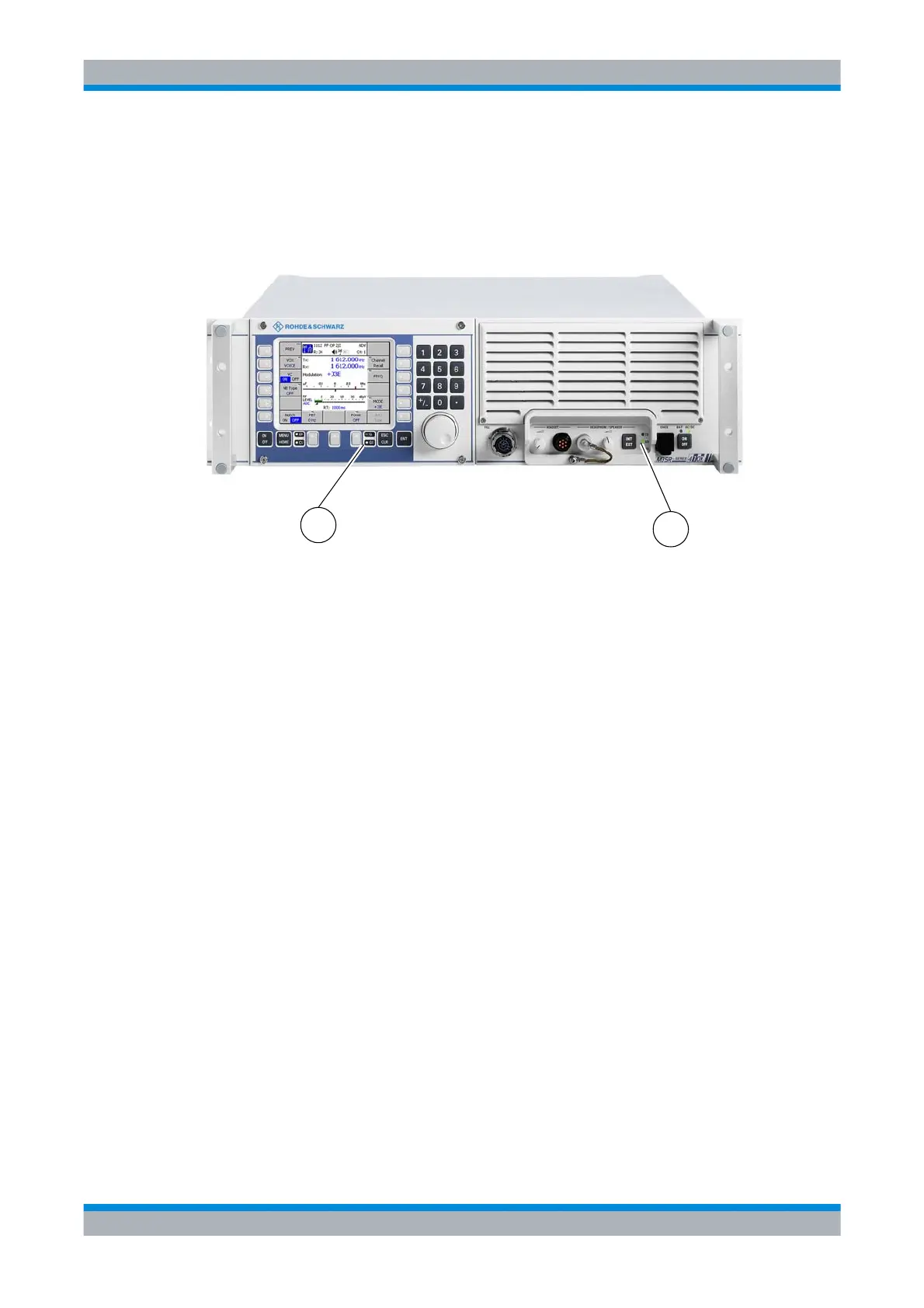

Figure 6.2 GO LED on Radio Front Panel and GO LED on Control Panel Switched Off in Case of Error
(Example)
1 Radio Front Panel LED GO
2 Control Unit LED GO
For operation of the radio two failure classes are defined, associated with the following types
of messages:
Warnings
• Operation goes on even if warning messages are displayed.
• The radio should be checked as soon as possible by the operator whether
- ambient temperature is not too high
- antenna installation is correct
- system cabling is ok
- collocation conditions are ok
• Warning messages disappear automatically after 5 s.
• All warnings are logged in the failure archive.
