Operating Manual 6175.4760.02 – 01 2.15

M3SR Series 4100 Front Cabling

2.4 Front Cabling

Necessary cabling at the front side:

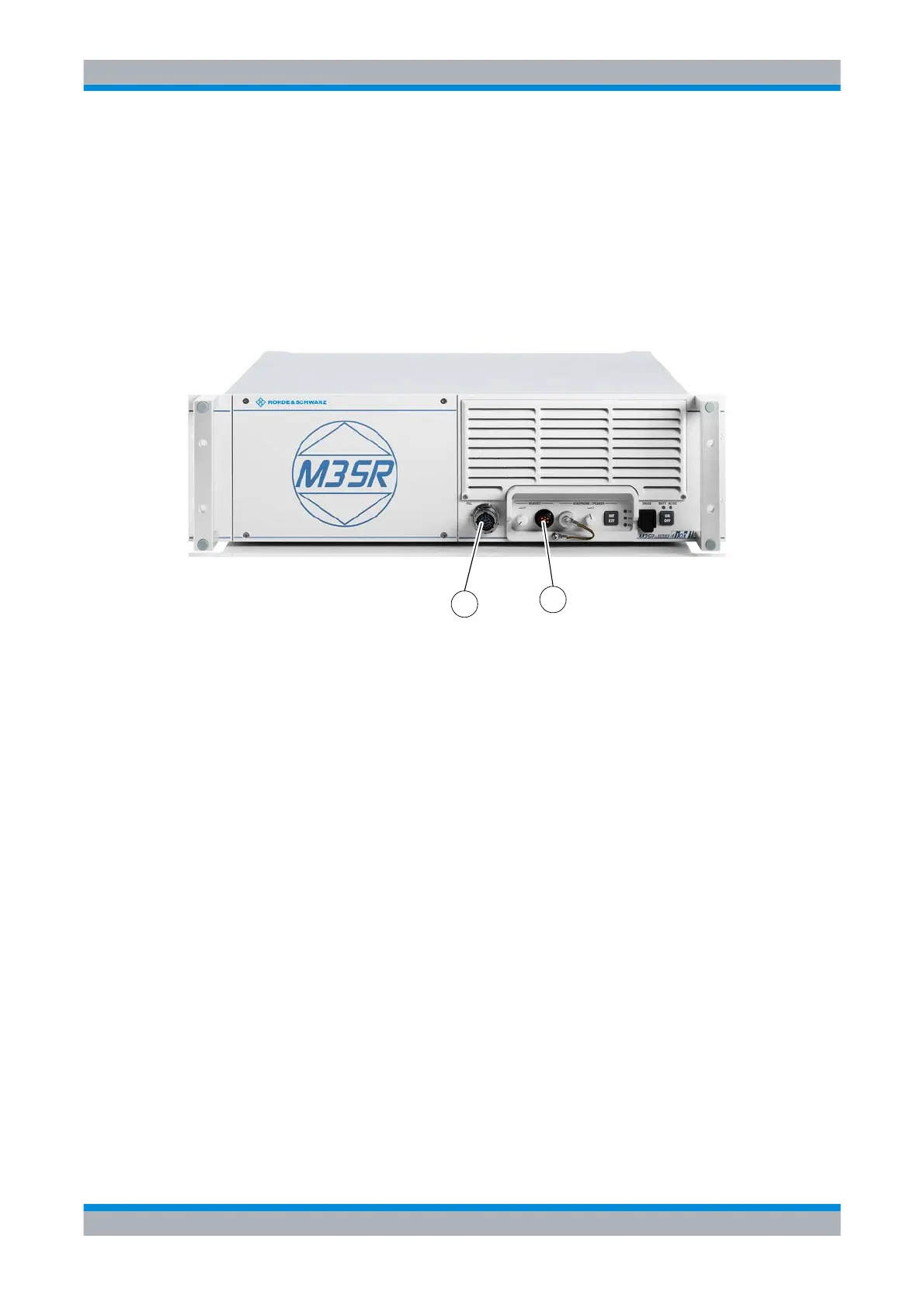

Figure 2.6 Front Cabling

1 Headset Connector for e.g. R&S GA3002

2 Fillgun Connector for e.g. R&S GP3000

ICN-4D-C-231000-R-D0894-00009-A-01-1
