M3SR Series 4100 Display of the GPS Reporting Data
5.20 Operating Manual 6175.4760.02 – 01
5.2.2.2 Display of the GPS Reporting Data
Provided the appropriate Service, e.g IP_DATA, additional information regarding GPS Re-
porting is displayed on the lower part of the screen.

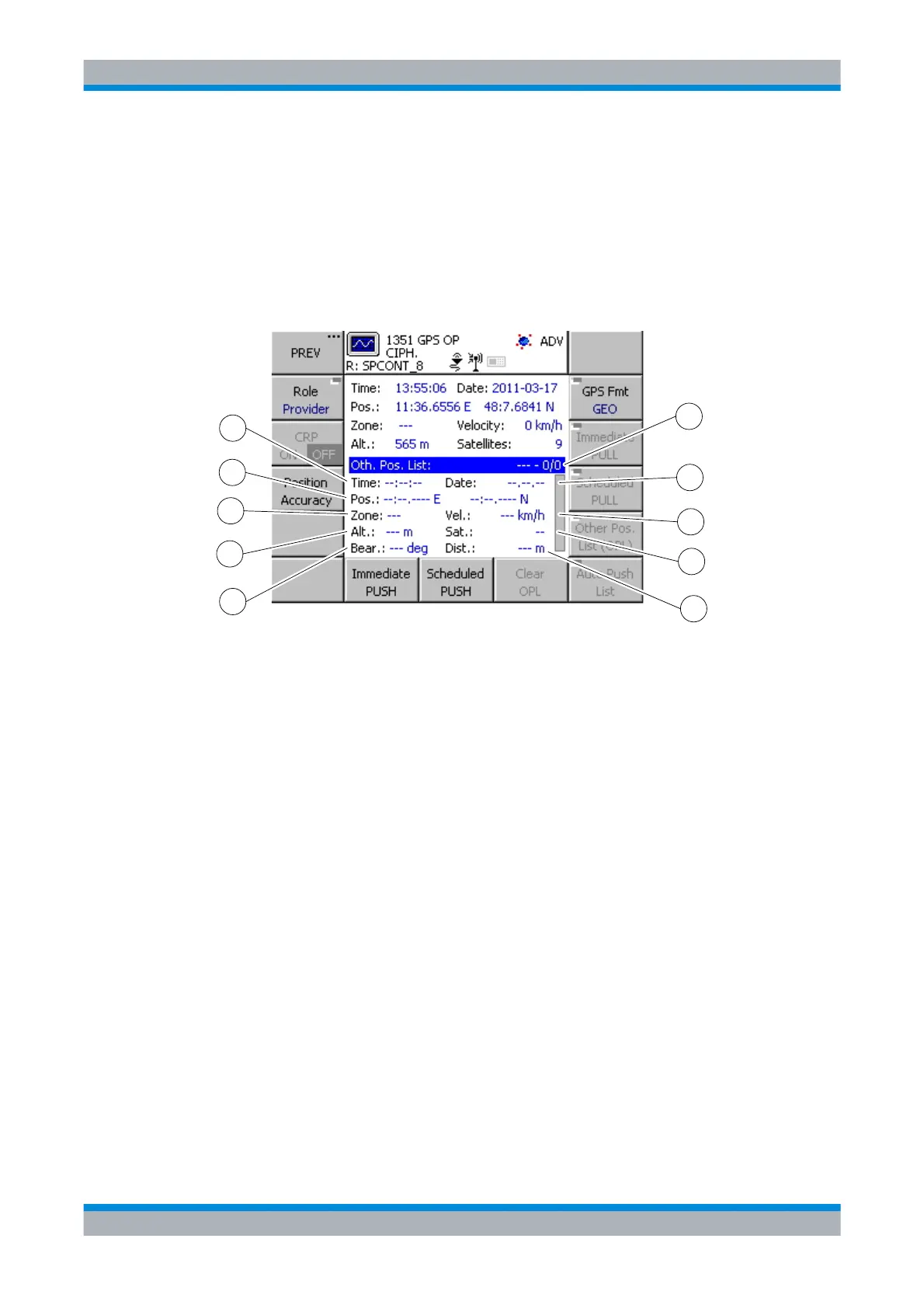

Figure 5.5 GPS Reporting Data
1 Oth. Pos. List (Other Positions List)
List of received positions from other radios. The format X/Y indicates the X-th entry out of Y
list entries in total.
2. Date
GPS date in CCYY-MM-DD.
3. Vel. (Velocity)
Current velocity in forward direction - Velocity in km/h.
4. Sat. (Satellites)
Current GPS reception quality - Number of satellites received (1 to 10) or ‘---’ for no satellites.
5. Dist. (Distance)
Relative distance to the reported GPS position– Distance in m.
6. Bear. (Bearing)
Angle to the reported GPS position – Bearing in degrees.
7. Alt. (Altitude)
In meter from sea level.
8. Zone
UTM zone indication.
9. Pos. (Position)
Latitude - In degrees and milliminutes plus north / south indication.
Longitude - In degrees and milliminutes plus east / west indication.
10. Time
GPS time in HH-MM-SS.
ICN-4D-H-231052-R-D0894-00004-A-01-1
1
2
3
4
5
6
7
8
9
10
