Operating
Manual 6175.47
60.02
–
01
3.203
M3SR Series 4100
FF SCAN Menu
In the central ar
ea of the menu F
F SCAN 2/2 scannin
g dwell times, hold
time and the chan
nel
list are displayed.
To scroll through the scann
ing channel list use
the knob.

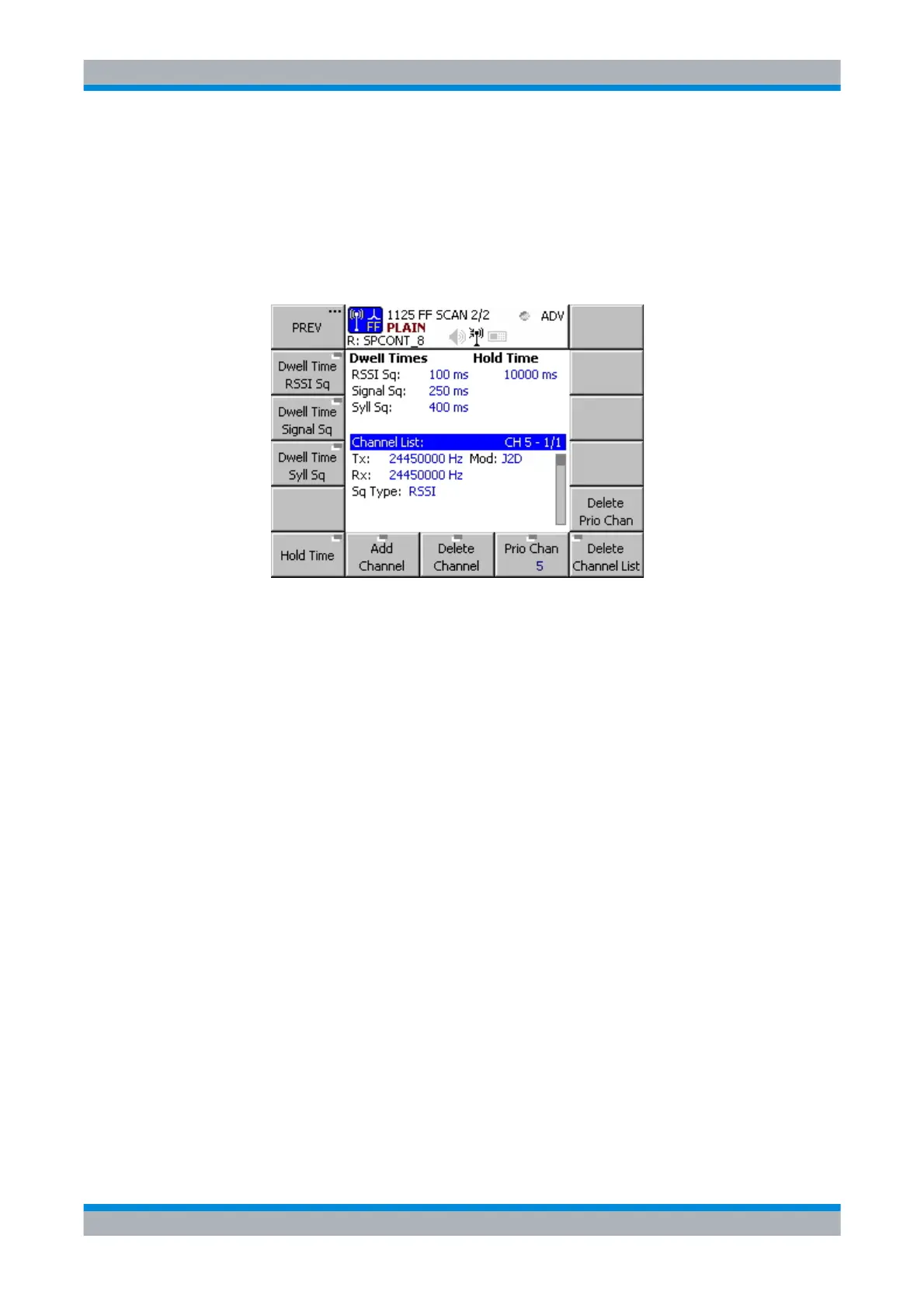

Figure
3.87
Menu
1125: FF SCAN 2/2
ICN-4D-G-231005-R-D0894-00006-A-01-1
318
320
