M3SR Series 4100 Menu Split Site 1/2 (3041)

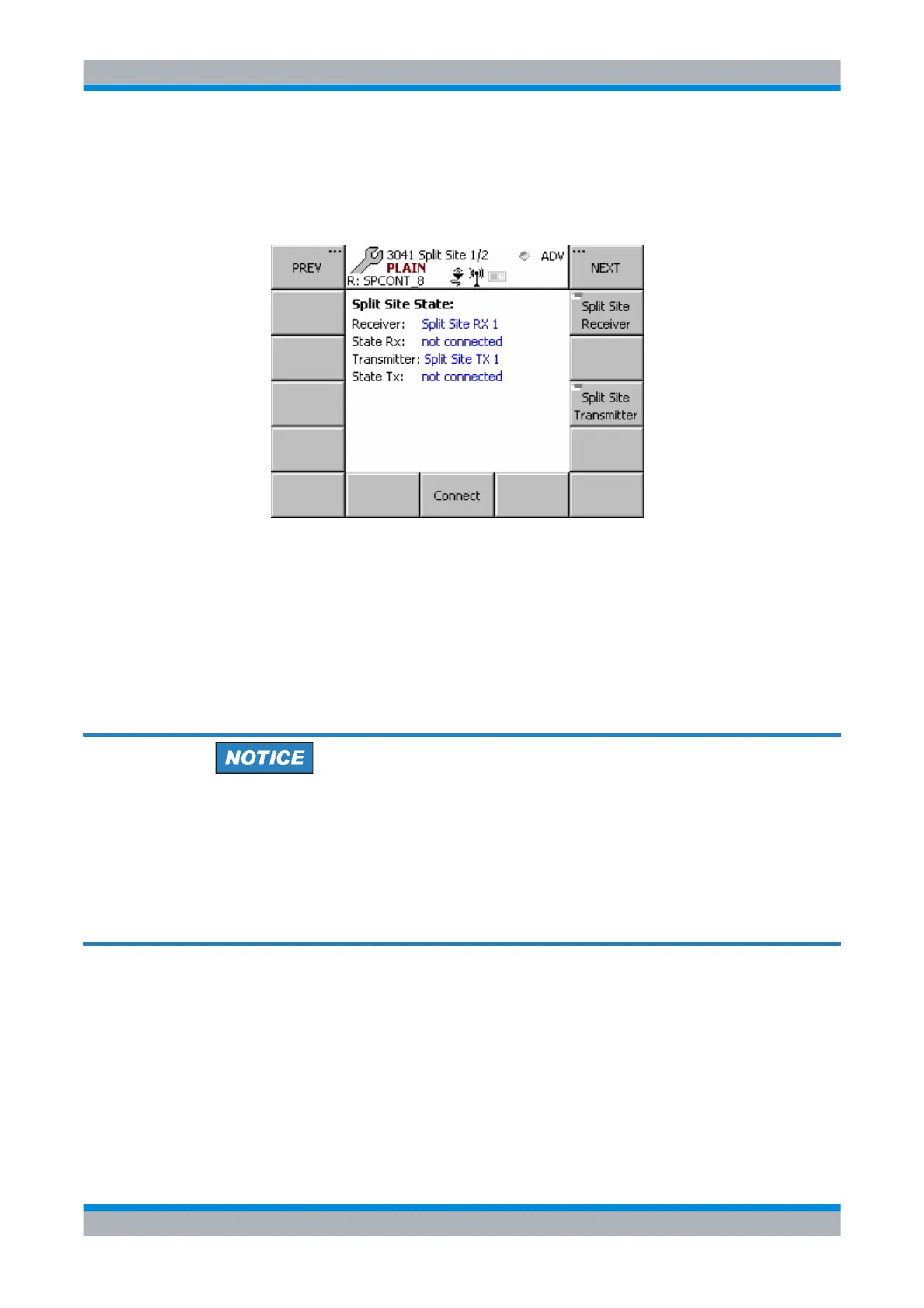

Figure 3.40 Menu 3041: Split Site 1/2
In the central area of this menu the names of the selected Split Site Receiver and Split Site
Transmitter are displayed, as well as the connection status of the Split Site Controller with
each Split Site radio (‘State Rx’ and ‘State Tx’).
Only the Split Site Controller will have this information displayed. The Split Site radios
(Receiver and Transmitter) are not aware that they are operating in a Split Site mode,
therefore this menu is not relevant for them. However, it is accessible if the Split Site
option key is installed. If no Receiver is assigned, or the own IP Address is assigned,
the local hardware is used for reception. If no Transmitter is assigned, or the own IP
Address is assigned, the local hardware is used for transmission.
