M3SR Series 4100
Contr
ol Unit Maintenance
3.106
Oper
ating
Manual 6175.4760
.02
–
01
3.5.1.3
Control Unit
Inventory (4021)
Figure
3.58
Menu
4021: CU Inventory

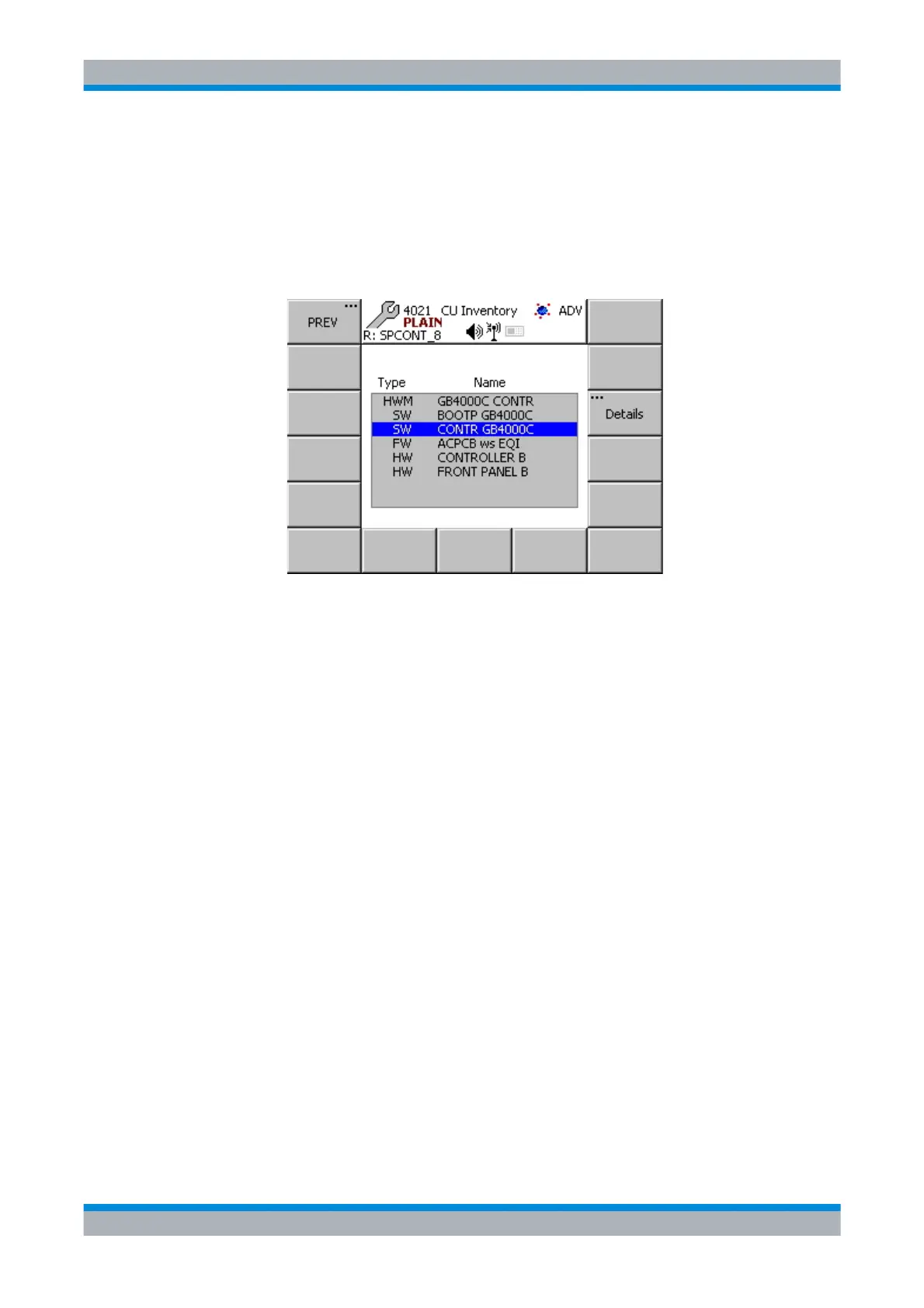

The menu CU Inventory lists in the central ar
ea all the components of the control unit. It
shows type (se
e Table
3.29) and na
me of each compon
ent.
ICN-4D-G-231000-R-D0894-00065-A-01-1
221
223
