3.3.1.6 Fill Gun
The softkey labelled 'Fill Gun' is a navigation softkey and is located on the right side of the
Home menu (see Figure 3.28).

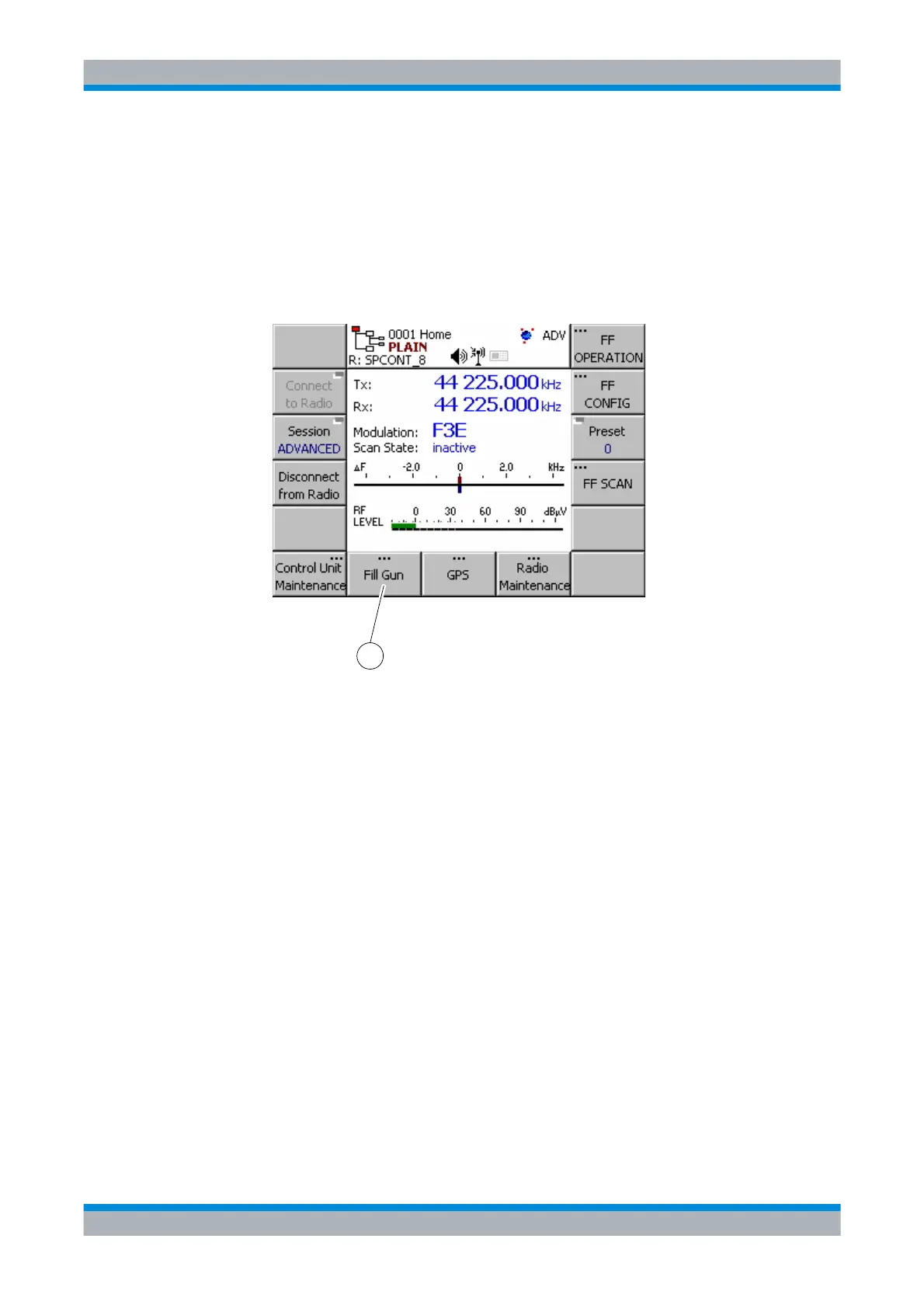

Figure 3.28 Fill Gun Navigation Softkey (Example)
1 Softkey 'Fill Gun'
As for almost all softkeys besides 'Control Unit Maintenance', it is needed to establish the IP
connection between control unit and radio before this functions can be used (see ”Connect-
ing to Radio” on p. 3.30).
In the fillgun submenu a radio configuration prepared with RNMS3000 can be downloaded
to the radio via fillgun or via serial cable. For details see sect. 3.7.3 Fixed Frequency Config-
uration Menus.
