Operating Manual 6175.4760.02 – 01 2.23
M3SR Series 4100 Switching the Radio On
2.6 Switching the Radio On
Minimum Requirements
Before putting the radio into operation make sure that the following minimum requirements
are met:
• Power supply is switched on (see the power supply documentation).
• Check relevant rear and front cabling.
See
- sect. 2.3 Rear Cabling
- sect. 2.4 Front Cabling
- sect. 2.5 System Cabling

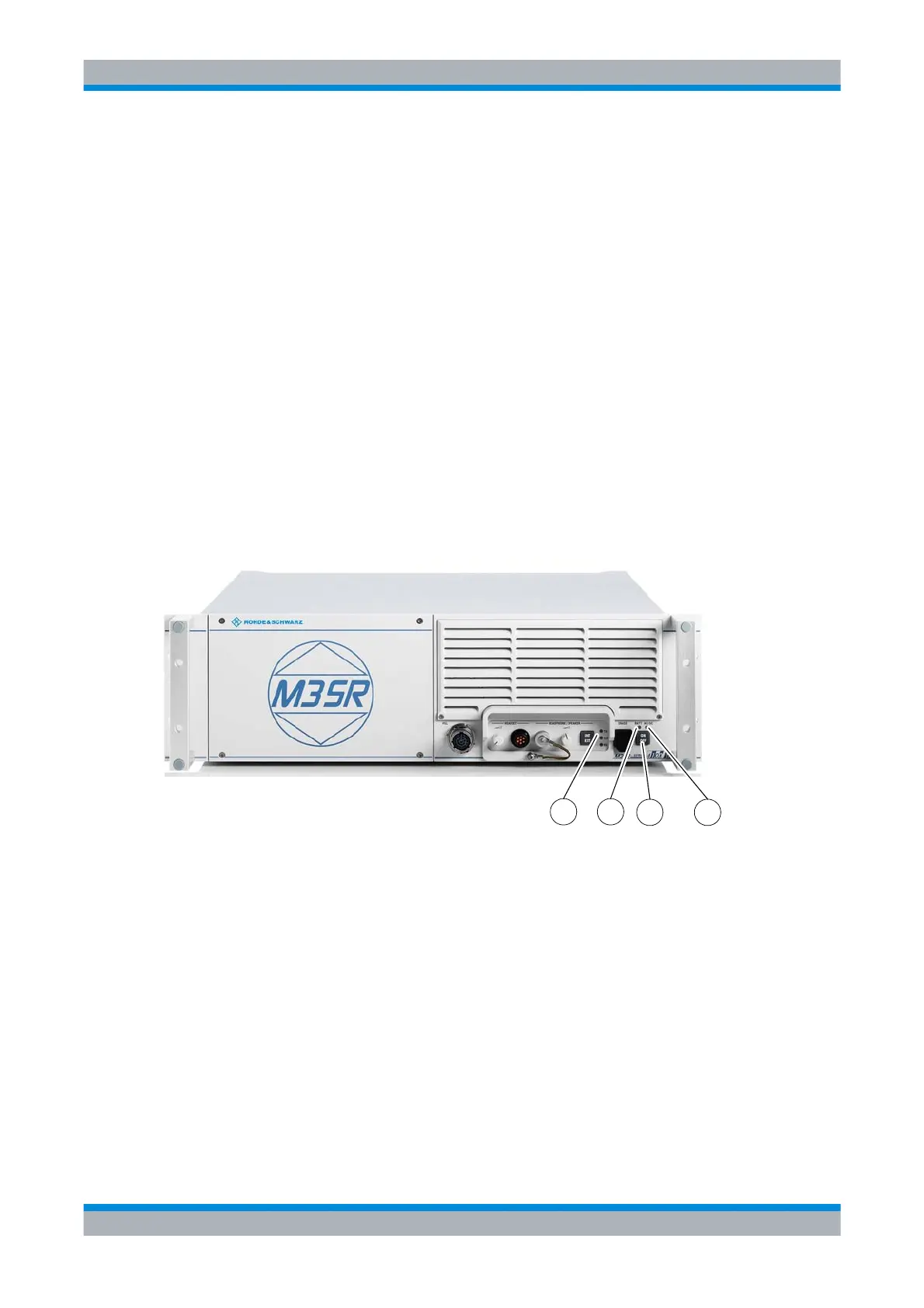

Figure 2.9 Switching the Radio On
1. Radio Button ON / OFF
2. Radio LED AC / DC
3. Radio LED BATT (Battery)
4. Radio LED GO
ICN-4D-C-231000-R-D0894-00015-A-01-1
1 2
3
4
