M3SR Series 4100 HF Modem Home Menu

4.126 Operating Manual 6175.4760.02 – 01

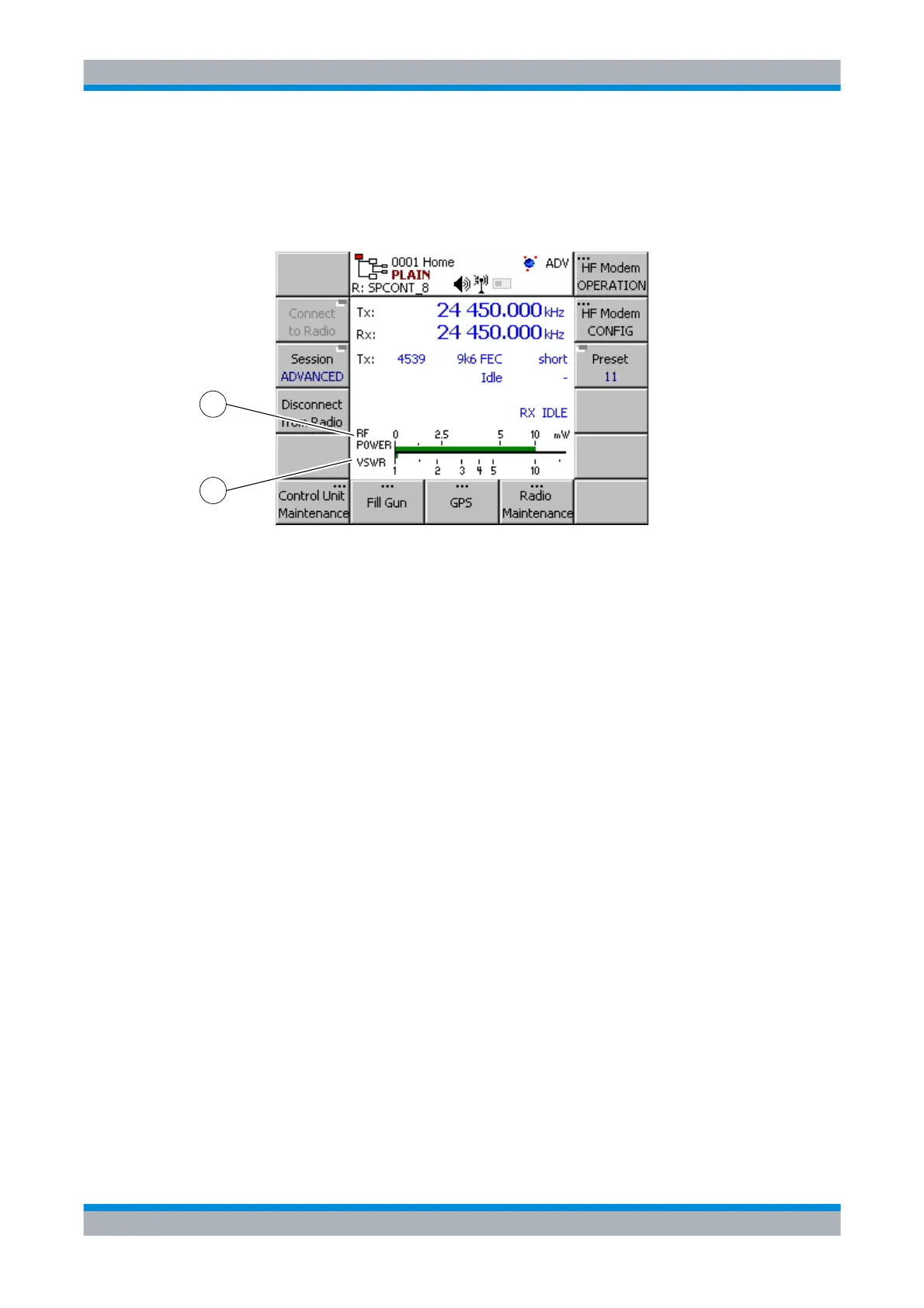

Figure 4.26 Home Menu: HF Modem (Tx Mode)

1 Effective output power

2 Effective Voltage Standing-Wave Ratio (VSWR)

2

ICN-4D-G-231063-R-D0894-00004-A-01-1

1
