M3SR Series 4100 IP over Air (IPoA)

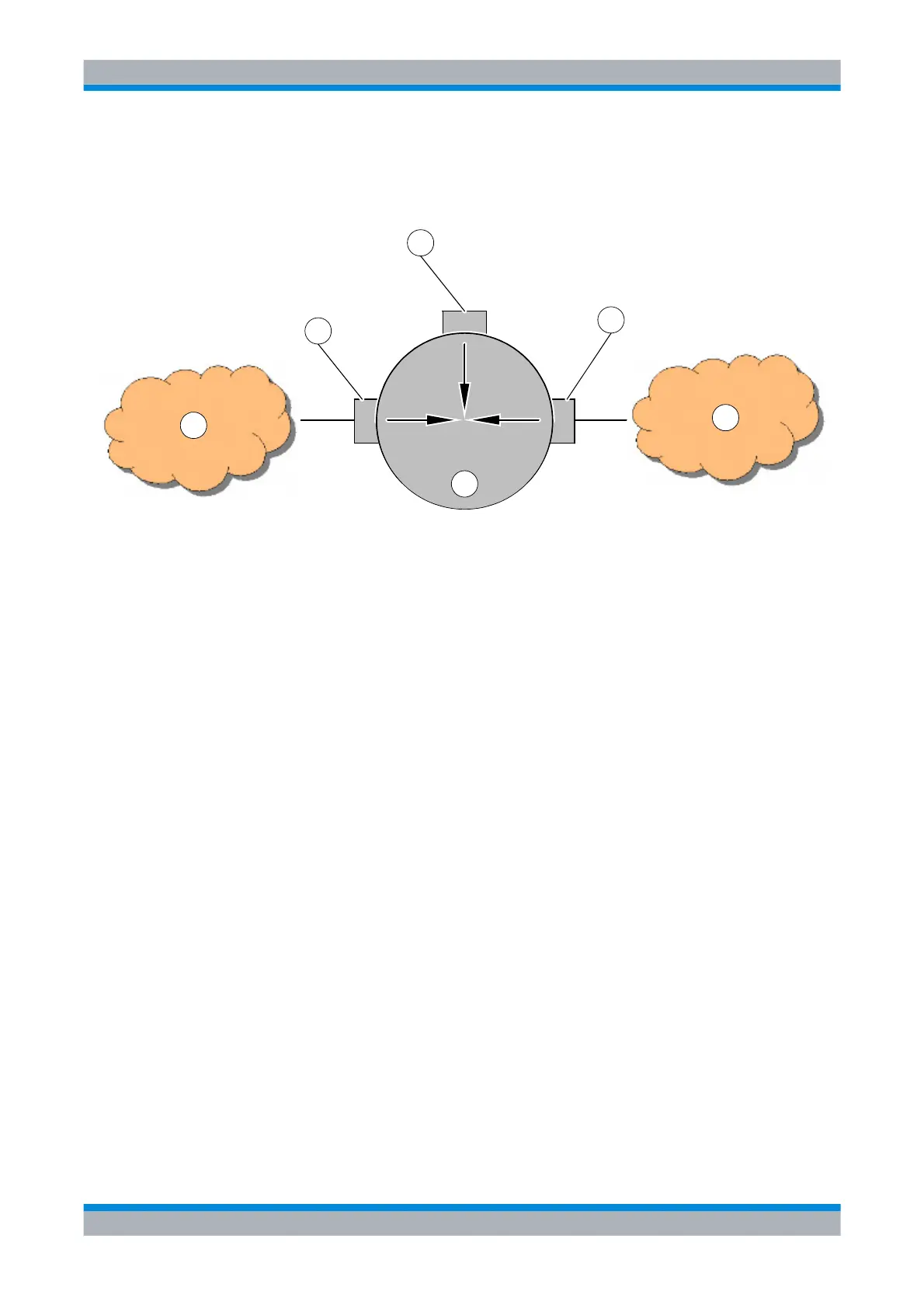

Figure 5.7 Radio IP Interfaces
1 IP/Ethernet Network
2 Ethernet IP Interface
3 PPP IP Interface
4 Air IP Interface
5 IP/Air Network
6Router (Radio)
• The Ethernet IP interface specifies the interface to the wired network connecting Ether-
net-based devices (computers, routers) with the radio.
• The air IP interface specifies the interface to the air network.
• The PPP IP interface defines the PPP settings that allow a computer to set up a point-
to-point connection to the radio.
The above described IP interfaces allow the radio to route/forward IP packets between the
different IP networks.
