M3SR Series 4100 Operating Concept
3.18 Operating Manual 6175.4760.02 – 01
The active setting is shown in blue in the softkey label, the selected setting is shown high-
lighted in the listbox. If active and selected setting are not identical, press the ENT button to
accept the selected value. Press the ESC CLR button to discard the selected setting and to
close the listbox.
Editor softkey:
Table 3.7 Editor Softkeys

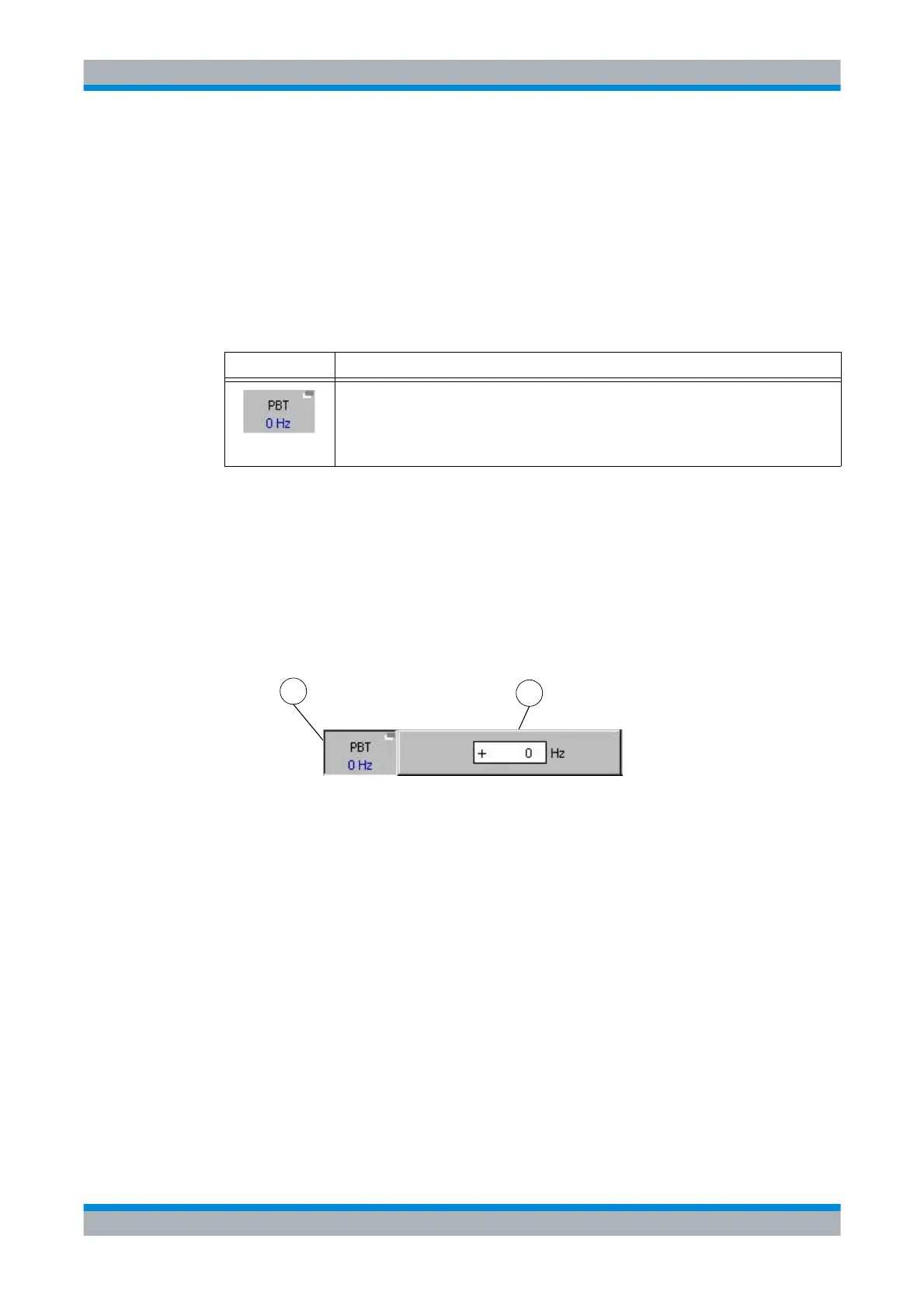

Figure 3.9 Example of an Editor
1 Active Value
2 Currently Selected Value
Use the knob or the keypad to select a value.
The active value is shown in blue in the softkey label, the selected value is shown in the ed-
itor. If the active value and the selected value are not identical, press the ENT button to ac-
cept the selected value. Briefly press the ESC CLR button to clear an entered value. Press
the ESC CLR button a bit longer to discard the entered value and close the editor.
Softkey label Note
Press this softkey to open an editor (see Figure 3.8).
1
2
ICN-4D-C-231000-R-D0894-00026-A-01-1
