R&S M3SR 4100 Series - Figure 7.3 Radio Maintenance Menu, Calibration Not Allowed

Operating Manual 6175.4760.02 – 01 7.5
M3SR Series 4100 Synthesizer Calibration

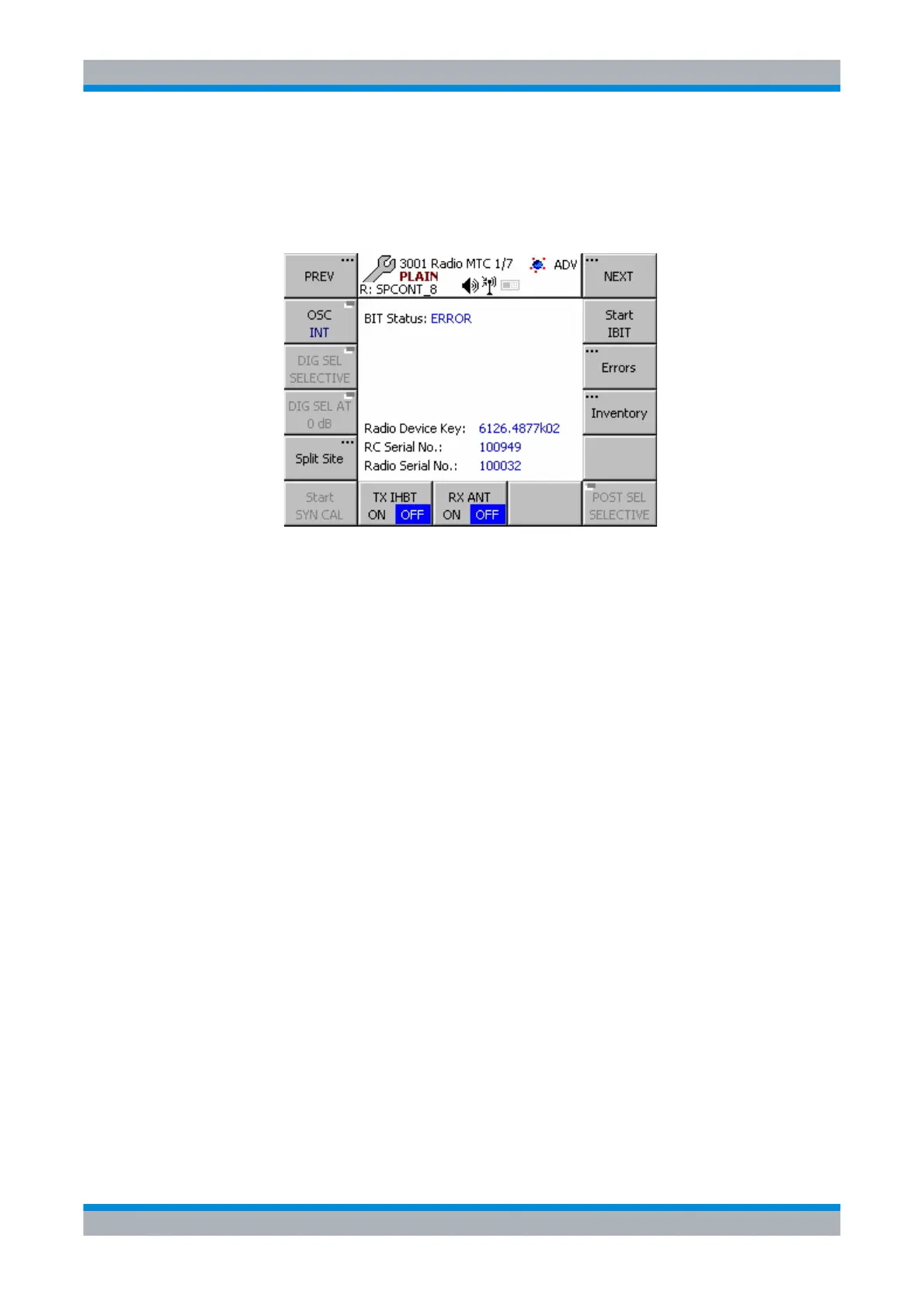

Figure 7.3 Radio Maintenance Menu, Calibration not Allowed
6. Activate Tx inhibit by pressing TX IHBT to enable the synthesizer calibration (see
Figure 7.4).
ICN-4D-G-231000-R-D0894-00047-A-01-1
