M3SR Series 4100 Automatic Update of Modules
2.28 Operating Manual 6175.4760.02 – 01

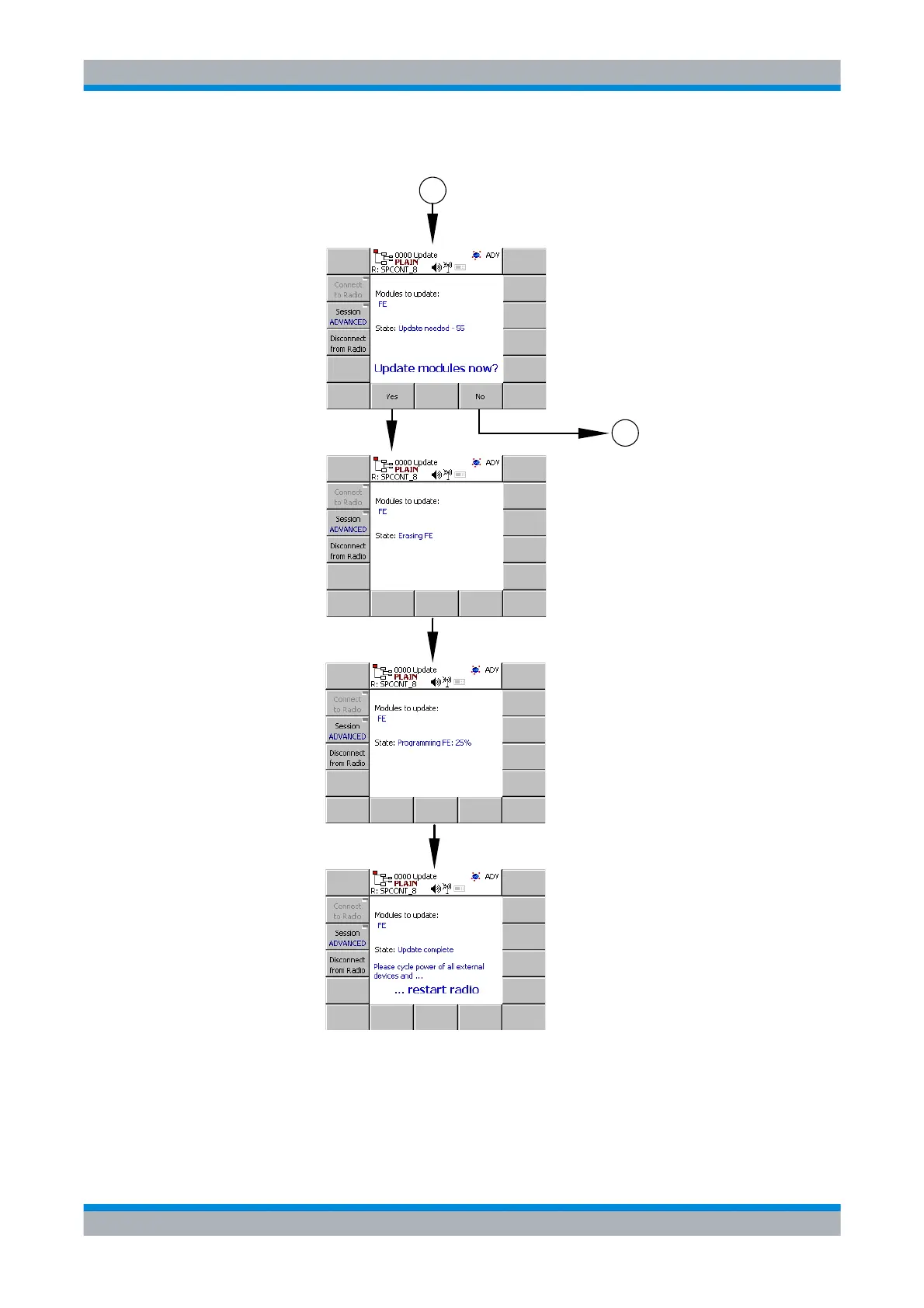

Figure 2.11 Example for the Automatic Update Process of a Frontend
1 Wrong Module Version Found
2 Continue Boot Process
1
2
ICN-4D-G-231000-R-D0894-00099-A-01-1
