M3SR Series 4100 Common ALE-2G and ALE-3G FF and HF Modem Menus
4.64 Operating Manual 6175.4760.02 – 01

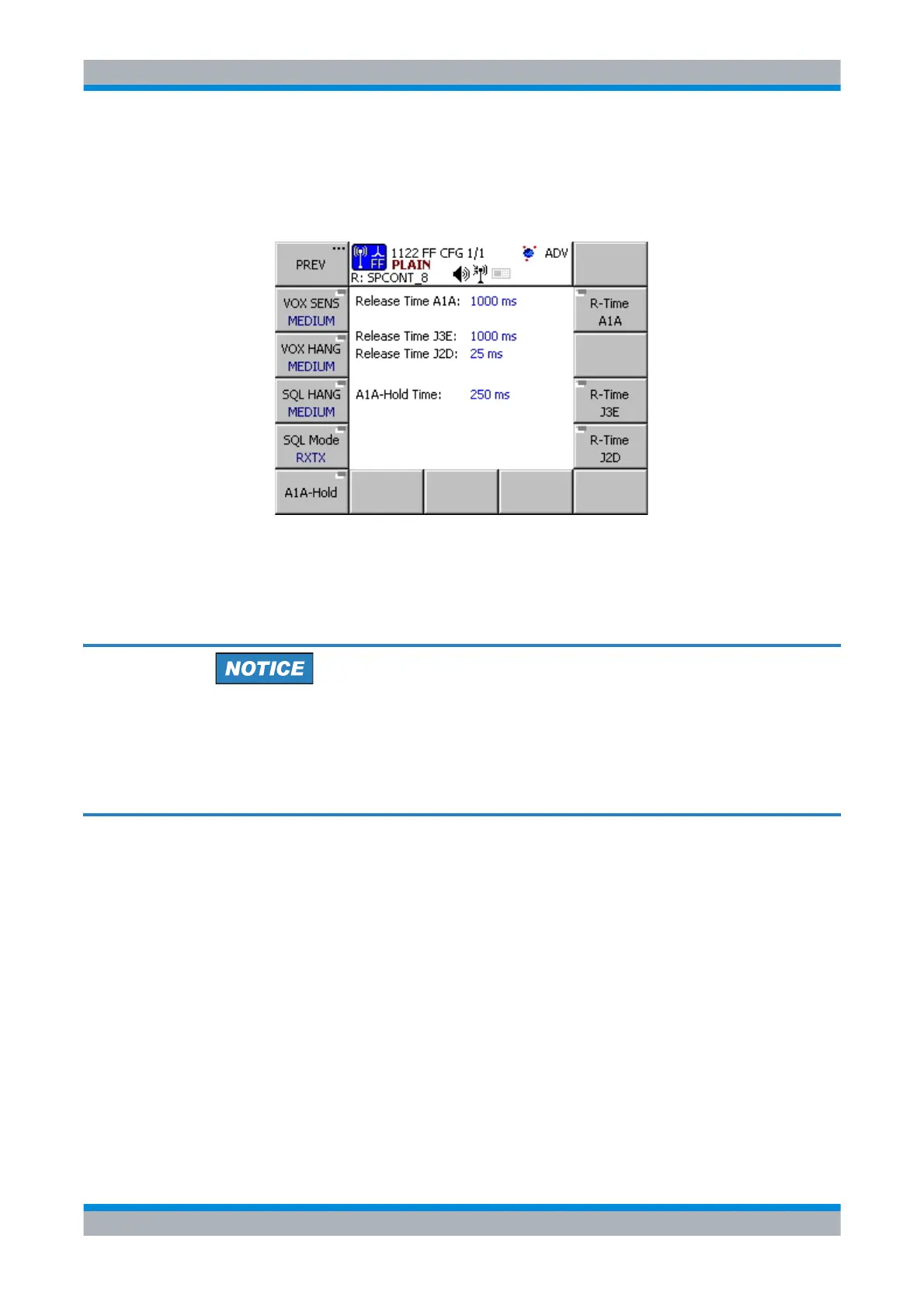

Figure 4.12 Menu 1122: FF CFG 1/1 (ALE-2G/ALE-3G)
In contrast to Fixed Frequency operation without ALE, some softkeys are hidden be-
cause of the already mentioned limitations due to link mechanisms running in paral-
lel: Whatever is selected in the three menus above, an ALE terminate command from
a network participant can still be received.
ICN-4D-G-231072-R-D0894-00012-A-01-1
