Operating Manual 6175.4760.02 – 01 3.35
M3SR Series 4100 Control and Monitoring of Radio and Control Unit
3.3.1.3 Session Types and Access Rights
A radio can have up to 3 sessions at a time with control units connected to it. Only one control
unit can have a session with operational access right, which gives it the right to manipulate
settings of the radio..
Up to three control units (one of them is the local control unit) can have sessions with mon-
itoring access right, allowing them to monitor the radio at the same time.

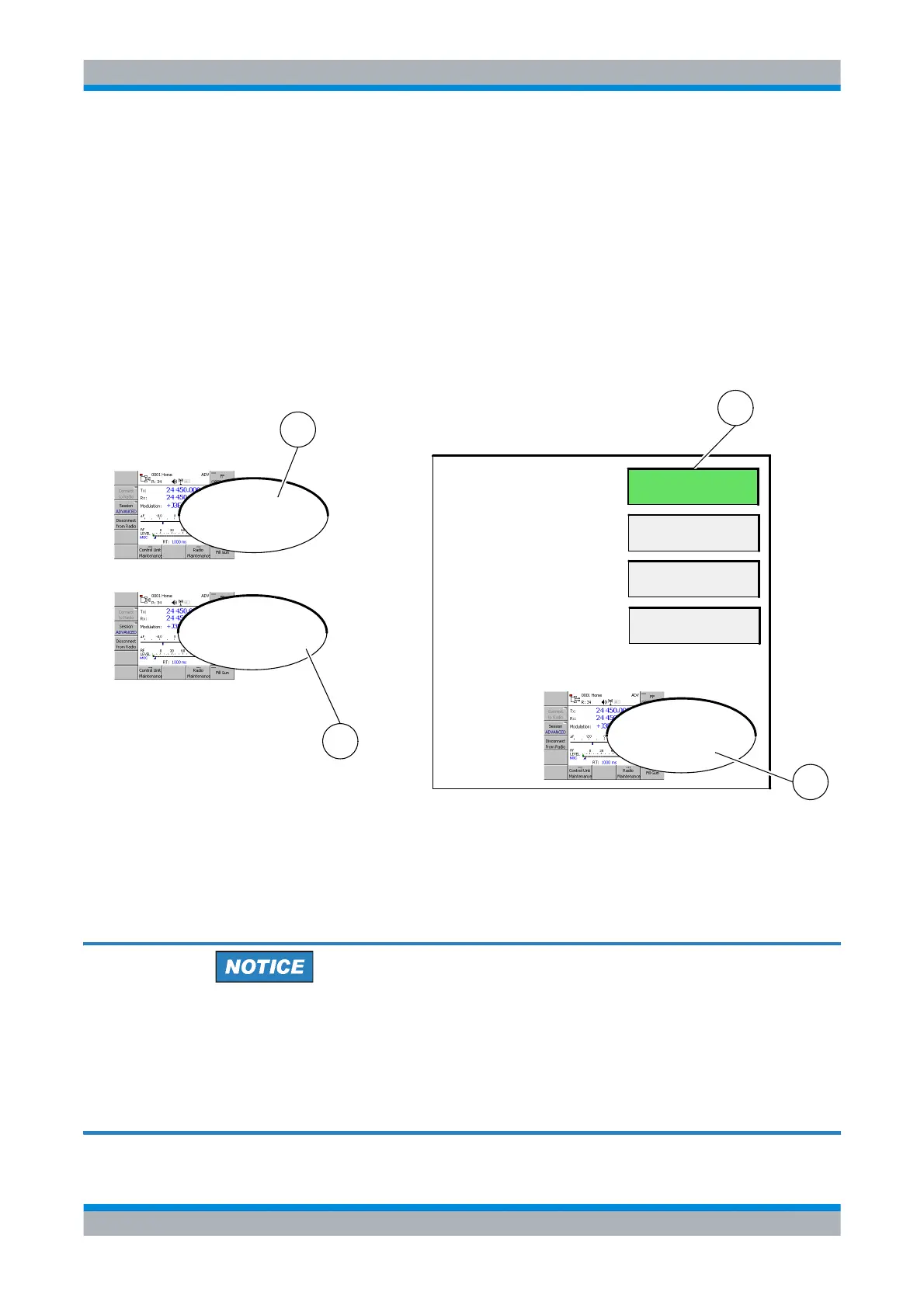

Figure 3.19 illustrates the access rights available in a radio if no control unit is connected.
Figure 3.19 Radio Access Rights
1 Remote Control Unit
2 Built-In (Local) Control Unit
3 Pool of Available Access Rights
One session is reserved for the local control unit. The radio identifies the local control
unit by the IP address of the local control unit only. For details on how to change the
local IP address known by the radio see sect. 2.9 Basic Configuration of the Control
Unit. For details on how to change the IP address of the control unit see
sect. 3.5.2 Control Unit MTC 2/4 (4002).
Operational
Access Right
Monitoring Access
Right (1)
Monitoring Access
Right (2)
Monitoring Access
Right (3)
(reserved for local CU)
Control Unit
CU3
Radio
Control Unit
CU2
Control Unit
CU1
1
1
2
3
ICN-4D-C-231000-R-D0894-00035-A-01-1
