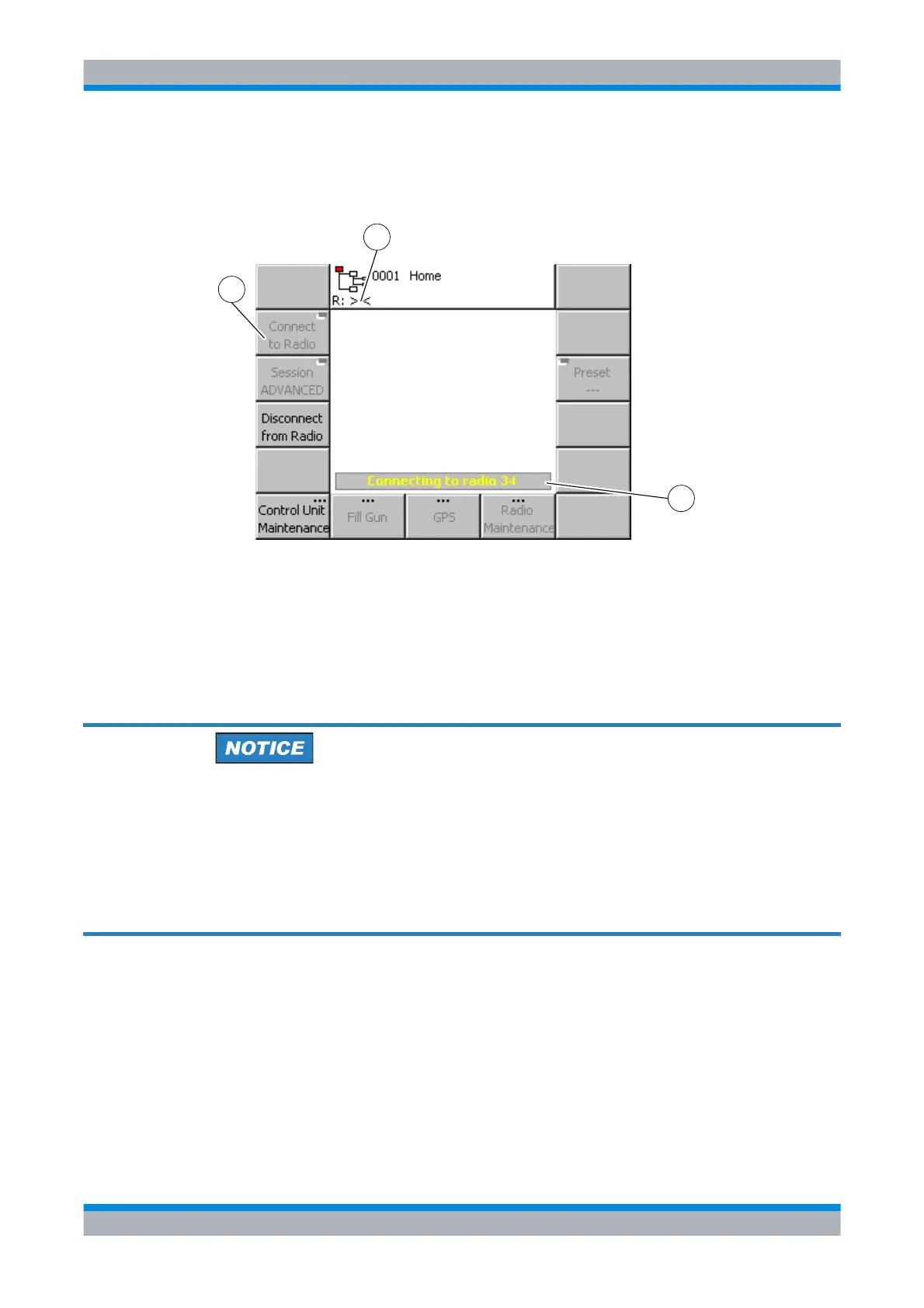

Figure 3.16 Home Menu, Connecting to Radio
1 Softkey: Disconnect from Radio
2 Indication in Menu Header for connecting
3 Status Line: Connecting to radio, e.g. 34
If the radio to connect to is switched on and can be reached via LAN, the connecting
status may be too short for the user to notice. However, immediately after radio pow-
er-on (see sect. 2.6 Switching the Radio On) connecting to the radio may take a few
seconds until the radio boot process has finished. If the radio to connect to cannot be
reached via LAN, the CU remains in state Connecting until the radio can be reached
or the softkey 'Disconnect from Radio' is pressed.
When the connection has been established, the Home menu's central area appears accord-
ing to the active communication mode and setting of the radio (see Figure 3.17).
