M3SR Series 4100 Control Unit MTC 2/4 (4002)
3.112 Operating Manual 6175.4760.02 – 01

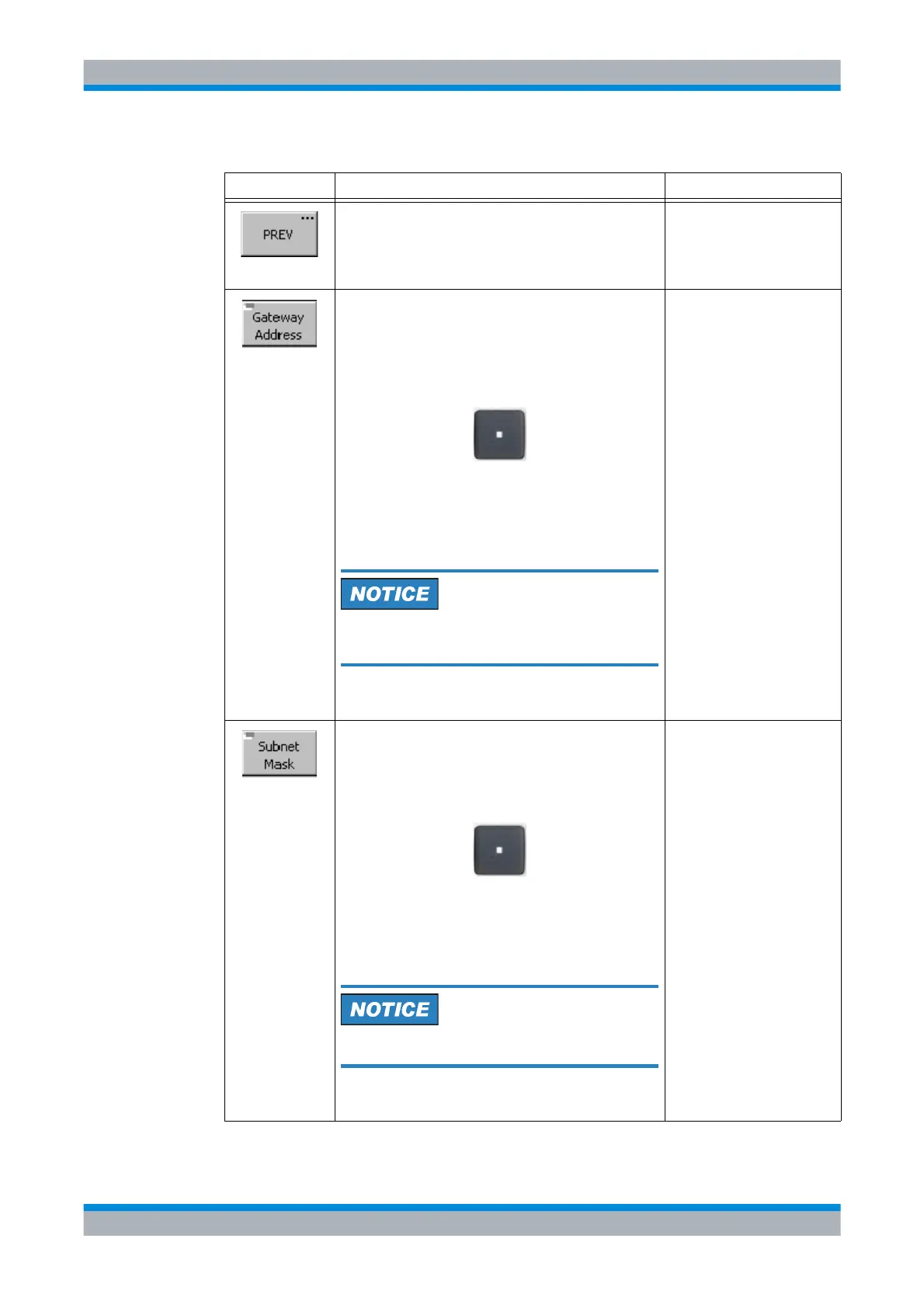

Table 3.32 Softkeys in Menu CU MTC 2/4
Softkey Description Possible Values
Navigate to the previous menu (CU MTC 1/4, see
sect. 3.5 Control Unit Maintenance).
Open an editor to change the control unit gateway ad-
dress.
Use the knob or the numeric keypad to edit each of the four
numbers of the address separately.
To select the next number press the key
0.0.0.0 to 255.255.255.255
.
Press 'ENT' to confirm.
A message box appears: 'Please reboot the CU to make
this change take effect.'
The gateway address 0.0.0.0 means that no gateway is
used. There are not all gateway addresses allowed.
See also the note below.
Default: 0.0.0.0
Open an editor to change the control unit subnet address.
Use the knob or the numeric keypad to edit each of the four
numbers of the address separately.
To select the next number press the key
0.0.0.0 to 255.255.255.255
.
Press 'ENT' to confirm.
A message box appears: Please reboot the CU to make
this change take effect.
There are not all subnet addresses allowed. See also
the note below.
Default: 255.255.255.0
